  11. Pneumatic Ball Vibrator, Force 378 Lb

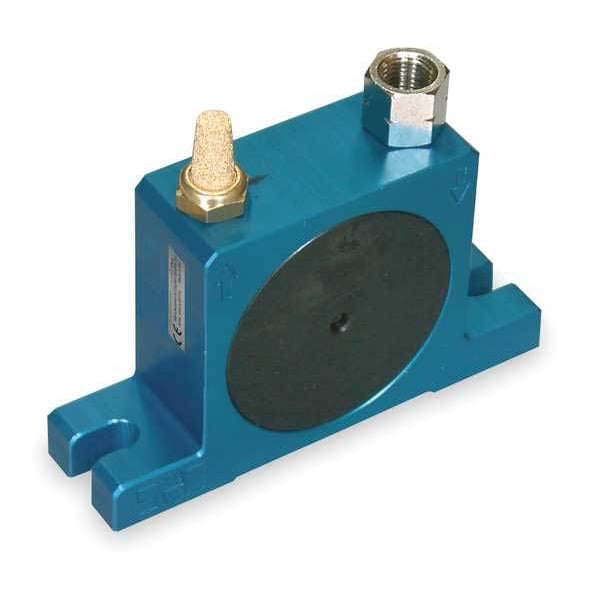

Dayton Pneumatic Ball Vibrator, Force 378 Lb 1DYP1 - main

Pneumatic Ball Vibrator, Force 378 Lb

  • Mfr # 1DYP1

  • Zoro # G2029255

product price: $154.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Ball
Force Rating
378 lb
CFM @ 80 PSI
12.0
Speed @ 60 psi
14,500 VPM
Speed @ 80 psi
16,500 VPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYP1
Zoro #
G2029255
UPC #
190735137192
Country of Origin
Italy

Dimensions

Overall Length
5"
Overall Width
2-3/8"
Overall Height
3-1/8"
Inlet Connection Size
1/4 in
Outlet Connection Size
1/4 in

Details

Item
Pneumatic Vibrator
Vibrator Type
Ball
Force Rating
378 lb
CFM @ 80 PSI
12.0
Speed @ 60 psi
14,500 VPM
Speed @ 80 psi
16,500 VPM
dB @ 80 psi
76
Bin Weight Capacity
3780 lb
Inlet Port
1/4" NPT
Outlet Port
1/4" BSPP
Ball Material
Hardened Steel
Mounting
Any Position
Standards
CE certified
Max. Temp.
360 Degrees F
Mounting Plate
No
Muffler
Included
Housing Material
Aluminum
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Duty
Continuous
Max. Pressure
90 psi
Force @ 60 psi
268 lbf
Mount Plate Required
No
Pneumatic Vibrator Type
Ball
Vibration Speed @ 80 psi
16,500 vpm
Maximum Operating Temperature
390 Degrees F
Air Flow Rate
12 cfm @ 87 psi, 4.6 cfm @ 30 psi, 8.1 cfm @ 60 psi
Force @ PSI
158 lbf @ 30 psi, 268 lbf @ 60 psi, 378 lbf @ 87 psi
Maximum Vibration Speed
16,500 vpm
Mount Type
Any Position
Mount Plate Included
No
Maximum Bin Weight Capacity
3,780 lb
Minimum Operating Temperature
-4 Degrees F
Vibration Speeds @ PSI
14,500 vpm @ 60 psi, 16,500 vpm @ 80 psi
Outlet Connection Type
BSPP
Vibration Speed @ 60 psi
14,500 vpm
Inlet Connection Type
NPT
Maximum Force
378 lbf
Sound Level
76 dBA
Maximum Inlet Pressure
90 psi
Duty Cycle
Continuous
Mounting Orientation
Any Position

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 1/4 in, Outlet Connection Type BSPP, Air Flow Rate 12 cfm @ 87 psi, 4.6 cfm @ 30 psi, 8.1 cfm @ 60 psi, Maximum Force 378 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 16,500 vpm, Maximum Bin Weight Capacity 3,780 lb, Overall Height 3.15 in, Overall Length 5.04 in, Overall Width 1.3 in, Sound Level 76 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Ball
