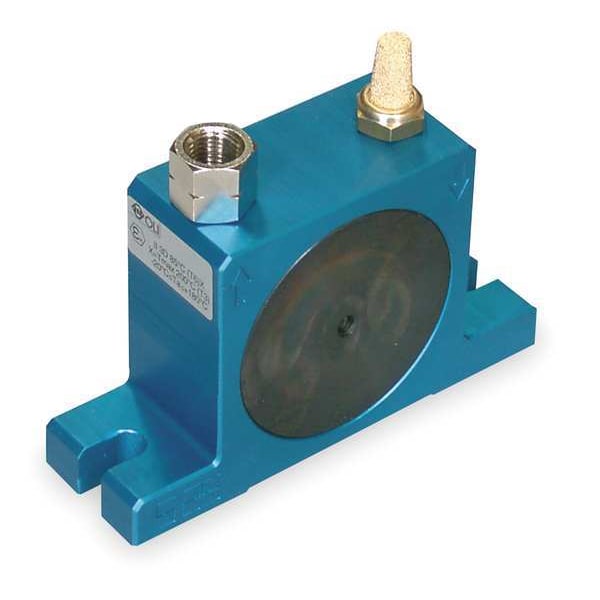

Dayton Pneumatic Ball Vibrator, Force 451 Lb 1DYP2 - main

Pneumatic Ball Vibrator, Force 451 Lb

  • Mfr # 1DYP2

  • Zoro # G0846027

product price: $165.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Ball
Force Rating
451 lb
CFM @ 80 PSI
15.0
Speed @ 60 psi
12,200 VPM
Overall Length
5"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYP2
Zoro #
G0846027
UPC #
190735137208
Country of Origin
Italy

Dimensions

Overall Length
5"
Overall Width
2-3/8"
Overall Height
3-1/8"
Outlet Connection Size
1/4 in
Inlet Connection Size
1/4 in

Details

Item
Pneumatic Vibrator
Vibrator Type
Ball
Force Rating
451 lb
CFM @ 80 PSI
15.0
Speed @ 60 psi
12,200 VPM
Speed @ 80 psi
14,000 VPM
Bin Weight Capacity
4510 lb
dB @ 80 psi
80
Inlet Port
1/4" NPT
Outlet Port
1/4" BSPP
Mounting
Any Position
Duty
Continuous
Max. Pressure
90 psi
Ball Material
Hardened Steel
Standards
CE certified
Muffler
Included
Mounting Plate
No
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Housing Material
Aluminum
Max. Temp.
360 Degrees F
Duty Cycle
Continuous
Pneumatic Vibrator Type
Ball
Air Flow Rate
10.2 cfm @ 60 psi, 15 cfm @ 87 psi, 5.7 cfm @ 30 psi
Maximum Force
451 lbf
Maximum Bin Weight Capacity
4,510 lb
Force @ 60 psi
345 lbf
Inlet Connection Type
NPT
Maximum Operating Temperature
360 Degrees F
Mount Type
Any Position
Mounting Orientation
Any Position
Vibration Speed @ 60 psi
12,200 vpm
Vibration Speeds @ PSI
12,200 vpm @ 60 psi, 14,000 vpm @ 80 psi
Vibration Speed @ 80 psi
14,000 vpm
Sound Level
80 dBA
Force @ PSI
205 lbf @ 30 psi, 345 lbf @ 60 psi, 451 lbf @ 80 psi
Outlet Connection Type
BSPP
Maximum Vibration Speed
14,000 vpm
Mount Plate Required
No
Mount Plate Included
No
Maximum Inlet Pressure
90 psi

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 1/4 in, Outlet Connection Type BSPP, Air Flow Rate 10.2 cfm @ 60 psi, 15 cfm @ 87 psi, 5.7 cfm @ 30 psi, Maximum Force 451 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 14,000 vpm, Maximum Bin Weight Capacity 4,510 lb, Overall Height 3.15 in, Overall Length 5.04 in, Overall Width 1.5 in, Sound Level 80 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Ball
