  11. Pneumatic Ball Vibrator, Force 706 Lb

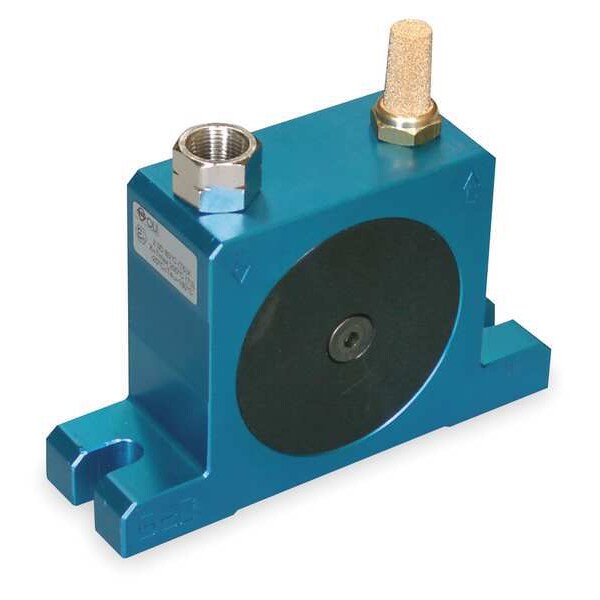

Dayton Pneumatic Ball Vibrator, Force 706 Lb 1DYP3 - main

Pneumatic Ball Vibrator, Force 706 Lb

  • Mfr # 1DYP3

  • Zoro # G2899066

product price: $193.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Ball
Force Rating
706 lb
CFM @ 80 PSI
20.1
Speed @ 60 psi
9700 VPM
Speed @ 80 psi
12,500 VPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYP3
Zoro #
G2899066
UPC #
190735137215
Country of Origin
Italy

Dimensions

Overall Length
6-1/4"
Overall Width
3-1/8""
Overall Height
4"
Inlet Connection Size
3/8 in
Outlet Connection Size
3/8 in

Details

Item
Pneumatic Vibrator
Vibrator Type
Ball
Force Rating
706 lb
CFM @ 80 PSI
20.1
Speed @ 60 psi
9700 VPM
Speed @ 80 psi
12,500 VPM
Bin Weight Capacity
7060 lb
dB @ 80 psi
80
Inlet Port
3/8" NPT
Outlet Port
3/8" BSPP
Max. Pressure
90 psi
Mounting Plate
No
Max. Temp.
360 Degrees F
Muffler
Included
Housing Material
Aluminum
Standards
CE certified
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Mounting
Any Position
Duty
Continuous
Maximum Force
706 lbf
Duty Cycle
Continuous
Inlet Connection Type
NPT
Force @ PSI
332 lbf @ 30 psi, 543 lbf @ 60 psi, 706 lbf @ 87 psi
Sound Level
80 dBA
Mount Plate Required
No
Force @ 60 psi
543 lbf
Vibration Speed @ 60 psi
9,700 vpm
Maximum Operating Temperature
360 Degrees F
Vibration Speeds @ PSI
12,500 vpm @ 80 psi, 9,700 vpm @ 60 psi
Mount Plate Included
No
Maximum Bin Weight Capacity
7,060 lb
Outlet Connection Type
BSPP
Air Flow Rate
13.2 cfm @ 60 psi, 20.1 cfm @ 87 psi, 7.6 cfm @ 30 psi
Pneumatic Vibrator Type
Ball
Maximum Vibration Speed
12,500 vpm
Mount Type
Any Position
Vibration Speed @ 80 psi
12,500 vpm
Maximum Inlet Pressure
90 psi
Mounting Orientation
Any Position

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 3/8 in, Outlet Connection Type BSPP, Air Flow Rate 13.2 cfm @ 60 psi, 20.1 cfm @ 87 psi, 7.6 cfm @ 30 psi, Maximum Force 706 lbf, Inlet Connection Size 3/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 12,500 vpm, Maximum Bin Weight Capacity 7,060 lb, Overall Height 3.94 in, Overall Length 6.3 in, Overall Width 1.77 in, Sound Level 80 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Ball
