  11. Pneumatic Turbine Vibrator, Force 581 Lb

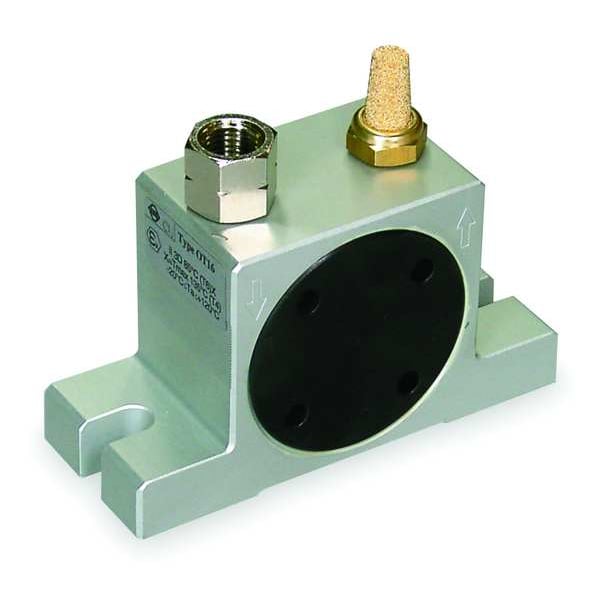

Dayton Pneumatic Turbine Vibrator, Force 581 Lb 1DYP6 - main

Pneumatic Turbine Vibrator, Force 581 Lb

  • Mfr # 1DYP6

  • Zoro # G0662383

product price: $253.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Turbine
Force Rating
581 lb
CFM @ 80 PSI
10.1
Speed @ 60 psi
20,000 VPM
Overall Length
4-1/2"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYP6
Zoro #
G0662383
UPC #
190735137246
Country of Origin
Italy

Dimensions

Overall Length
4-1/2"
Overall Width
1-5/8"
Overall Height
2-1/2"
Inlet Connection Size
1/4 in
Mount Hole Size
0.4
Outlet Connection Size
1/4 in

Details

Vibrator Type
Turbine
Item
Pneumatic Vibrator
Force Rating
581 lb
CFM @ 80 PSI
10.1
Speed @ 60 psi
20,000 VPM
Speed @ 80 psi
21,000 VPM
Bin Weight Capacity
5810 lb
dB @ 80 psi
64
Inlet Port
1/4" NPT
Outlet Port
1/4" BSPP
Muffler
Included
Max. Temp.
250 Degrees F
Mounting
Any Position
Housing Material
Aluminum
Mounting Plate
No
Duty
Continuous
Max. Pressure
90 psi
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Force @ PSI
427 lbf @ 30 psi, 527 lbf @ 60 psi, 581 lbf @ 87 psi
Pneumatic Vibrator Type
Turbine
Duty Cycle
Continuous
Maximum Bin Weight Capacity
5,810 lb
Outlet Connection Type
BSPP
Mount Plate Required
No
Maximum Inlet Pressure
90 psi
Vibration Speeds @ PSI
20,000 vpm @ 60 psi, 21,000 vpm @ 80 psi
Inlet Connection Type
NPT
Maximum Force
581 lbf
Maximum Vibration Speed
21,000 vpm
Mount Plate Included
No
Sound Level
64 dBA
Vibration Speed @ 60 psi
20,000 vpm
Vibration Speed @ 80 psi
21,000 vpm
Force @ 60 psi
527 lbf
Air Flow Rate
10.1 cfm @ 87 psi, 4.3 cfm @ 30 psi, 7.2 cfm @ 60 psi
Mount Type
Any Position
Mounting Orientation
Any Position
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
248 Degrees F

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 1/4 in, Outlet Connection Type BSPP, Air Flow Rate 10.1 cfm @ 87 psi, 4.3 cfm @ 30 psi, 7.2 cfm @ 60 psi, Maximum Force 581 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 21,000 vpm, Maximum Bin Weight Capacity 5,810 lb, Overall Height 2.56 in, Overall Length 4.5 in, Overall Width 1.65 in, Sound Level 64 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine
