  9. Pump, 1 1/2 HP, 115/230V, 17.0/8.5 Amp

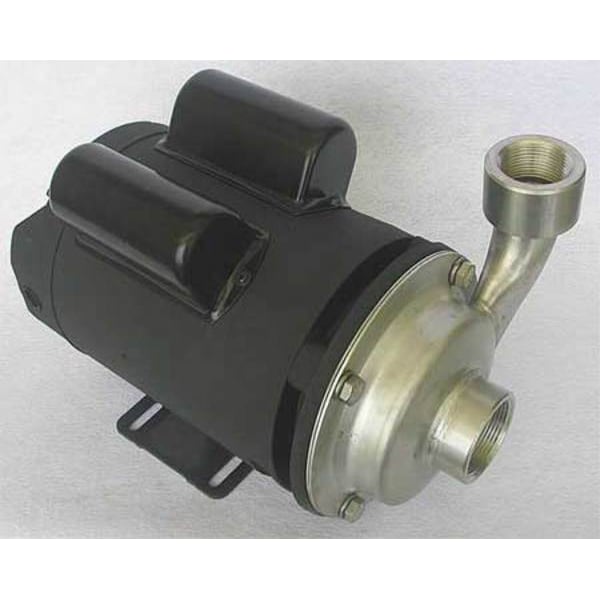

Dayton Pump, 1 1/2 HP, 115/230V, 17.0/8.5 Amp 4JMV9 - main

Pump, 1 1/2 HP, 115/230V, 17.0/8.5 Amp

  • Mfr # 4JMV9

  • Zoro # G1318457

product price: $1,024.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2 hp
Housing Material
304 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
116 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4JMV9
Zoro #
G1318457
UPC #
190735326640
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Width
8 5/16 in
Length
13 11/16 in
Height
8 in
Max. Dia. Solids
1/8 in
Overall Length
13.7 in
Overall Height
8 in
Overall Width
8.3 in
Shaft Outer Diameter
7/16 in
Solid Diameter (Maximum)
0.13 in
Intake Pipe Size
1 1/2 in
Discharge Pipe Size
1 1/4 in

Details

Item
Chemical Resistant Centrifugal Pump
HP
1 1/2 hp
Housing Material
304 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
116 gpm @ 5 ft
Max. Head
65 ft
Inlet
1-1/2 in NPT
Best Efficiency GPM @ Head
50 gpm @ 48 ft
Outlet
1-1/4 in NPT
Motor Enclosure
Open Dripproof
GPM of Water @ 50 Ft. of Head
44
Inlet Pressure
122 psi
Drain Plug
No
Wetted Materials
304 Stainless Steel, Carbon, Ceramic, Viton
Motor RPM
3,450 RPM
Bearing Type
Ball
Impeller Material
304 Stainless Steel
Max. Fluid Viscosity
31 SUS
GPM of Water @ 60 Ft. of Head
13
NEMA/IEC Frame
56J
Includes
Manual
Max. Specific Gravity
1.0
Best Efficiency Range GPM @ Head
16 to 97 gpm @ 60 to 23 ft
GPM of Water @ 10 Ft. of Head
108
GPM of Water @ 40 Ft. of Head
70
Agency Compliance
CUS
GPM of Water @ 30 Ft. of Head
81
Screw Material
Stainless Steel
Service Factor
1.15
Seal Type
Mechanical
Min. GPM @ Head
13 gpm @ 60 ft
GPM of Water @ 5 Ft. of Head
116
GPM of Water @ 25 Ft. of Head
95
Motor Type
Permanent Split Capacitor
Impeller Type
Closed
Application
Chemical Processing, Circulation, Cooling, Liquids Transfer, Pressure Boosting and Circulating
Max. Case Pressure
150 psi
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Port Rotation
90 Degrees Increments
Hz
60
Amps
17.0/8.5
GPM of Water @ 15 Ft. of Head
105
Shaft Material
Stainless Steel
Max. Liquid Temp.
200 Degrees F
Duty
Continuous
GPM of Water @ 20 Ft. of Head
100
Volute Material
304 Stainless Steel
Standards
CUS
Flow Rate @ 5 ft of Head (Maximum)
102 gpm
Feet of Head (Maximum)
78 ft
Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 20 ft of Head (Maximum)
95 gpm
Ambient Temperature (Minimum)
40 Degrees F
Discharge Rotation
90 Degrees Increments
Shut Off Pressure (Maximum)
150 psi
Wetted Material
304 Stainless Steel, Carbon, Ceramic, Viton
Impeller Design
Closed
Frequency
60 Hz
Viscosity (Maximum)
31 SUS
Priming
Manual
Motor Speed (Maximum)
3,450 RPM
Case Pressure (Maximum)
150 psi
Specific Gravity (Maximum)
1
Flow Rate (Minimum)
13 gpm
Best Efficiency Flow
50 gpm
Horsepower (Maximum)
1 1/2 hp
Nameplate Voltage
115/230V AC
Discharge Pipe Type
NPT
Intake Pipe Type
NPT
Flow Rate @ 1 ft of Head (Maximum)
103 gpm
Flow Rate (Maximum)
116 gpm
Best Efficiency Head
48 ft
Flow Rate @ 40 ft of Head (Maximum)
60 gpm
Media Temperature (Minimum)
40 Degrees F
Flow Rate @ 15 ft of Head (Maximum)
98 gpm
Flow Rate @ 30 ft of Head (Maximum)
76 gpm
Current
17.0 or 8.5 A
Media Temperature (Maximum)
200 Degrees F
Flow Rate @ 25 ft of Head (Maximum)
85 gpm
Compatible Motor Frame
56J NEMA
For Use With Potable Systems
No
Flow Rate @ 10 ft of Head (Maximum)
100 gpm
Duty Cycle
Continuous
Flow Rate @ 60 ft of Head (Maximum)
13 gpm

Description

Centrifugal Pump, Discharge Pipe Size 1 1/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 78 ft, Flow Rate (Maximum) 116 gpm, Horsepower (Maximum) 1 1/2 hp, Housing Material 304 Stainless Steel, Impeller Design Closed, Impeller Material 304 Stainless Steel, Intake Pipe Size 1 1/2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 200 Degrees F, Phase Single, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 31 SUS, Flow Rate @ 10 ft of Head (Maximum) 100 gpm
