  9. Pump, 1 1/2 HP, 208-230/460 Volt

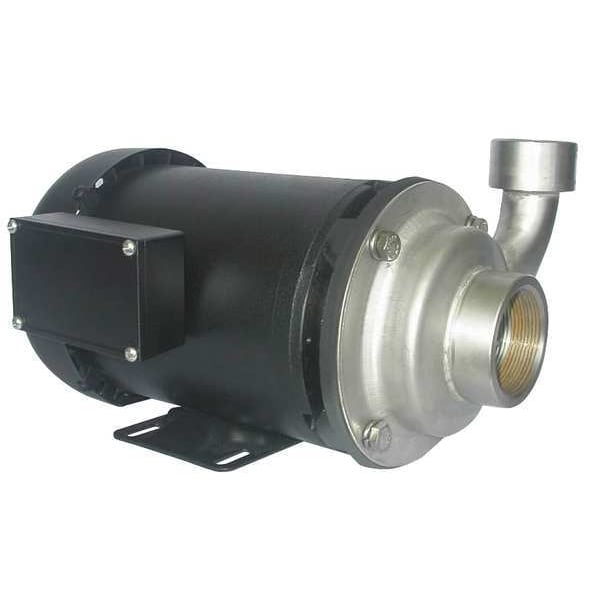

Dayton Pump, 1 1/2 HP, 208-230/460 Volt 4JMX5 - main

Pump, 1 1/2 HP, 208-230/460 Volt

  • Mfr # 4JMX5

  • Zoro # G1481347

product price: $1,068.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2 hp
Housing Material
304 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
116 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4JMX5
Zoro #
G1481347
UPC #
190735326787
Country of Origin
China

Dimensions

Width
9 1/4 in
Length
13 7/16 in
Manufacturers Warranty Length
1 yr
Height
7 7/8 in
Max. Dia. Solids
1/8 in
Overall Height
7.9 in
Overall Width
9.3 in
Overall Length
13.4 in
Solid Diameter (Maximum)
0.13 in
Intake Pipe Size
1 1/2 in
Discharge Pipe Size
1 1/4 in
Shaft Outer Diameter
7/16 in

Details

HP
1 1/2 hp
Item
Chemical Resistant Centrifugal Pump
Housing Material
304 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
116 gpm @ 5 ft
Max. Head
65 ft
Inlet
1-1/2 in NPT
Best Efficiency GPM @ Head
50 gpm @ 48 ft
Outlet
1-1/4 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Port Rotation
90 Degrees Increments
Bearing Type
Ball
Duty
Continuous
Amps
7.0-6.6/3.3
Drain Plug
No
Agency Compliance
CUS
Max. Fluid Viscosity
31 SUS
GPM of Water @ 30 Ft. of Head
81
NEMA/IEC Frame
56J
Hz
60
Service Factor
1.15
Max. Specific Gravity
1.0
Impeller Material
304 Stainless Steel
Shaft Material
Stainless Steel
Min. GPM @ Head
13 gpm @ 60 ft
Inlet Pressure
122 psi
Motor RPM
3,450 RPM
Wetted Materials
304 Stainless Steel, Carbon, Ceramic, Viton
GPM of Water @ 15 Ft. of Head
105
GPM of Water @ 40 Ft. of Head
70
Impeller Type
Closed
GPM of Water @ 50 Ft. of Head
44
GPM of Water @ 25 Ft. of Head
95
GPM of Water @ 10 Ft. of Head
108
Application
Chemical Processing, Circulation, Cooling, Liquids Transfer, Pressure Boosting and Circulating
GPM of Water @ 60 Ft. of Head
13
Seal Type
Mechanical
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
GPM of Water @ 20 Ft. of Head
100
Includes
Manual
Max. Case Pressure
150 psi
Best Efficiency Range GPM @ Head
16 to 97 gpm @ 60 to 23 ft
GPM of Water @ 5 Ft. of Head
116
Max. Liquid Temp.
200 Degrees F
Screw Material
Stainless Steel
Volute Material
304 Stainless Steel
Motor Type
Three-Phase Induction
Standards
CUS
Shut Off Pressure (Maximum)
150 psi
Flow Rate (Minimum)
13 gpm
Flow Rate @ 60 ft of Head (Maximum)
13 gpm
Horsepower (Maximum)
1 1/2 hp
Flow Rate @ 20 ft of Head (Maximum)
95 gpm
Nameplate Voltage
208-230/460V AC
Feet of Head (Maximum)
78 ft
Media Temperature (Maximum)
200 Degrees F
Flow Rate @ 25 ft of Head (Maximum)
85 gpm
Best Efficiency Flow
50 gpm
Discharge Pipe Type
NPT
Duty Cycle
Continuous
Frequency
60 Hz
Flow Rate @ 1 ft of Head (Maximum)
103 gpm
Wetted Material
304 Stainless Steel, Carbon, Ceramic, Viton
Compatible Motor Frame
56J NEMA
Motor Speed (Maximum)
3,450 RPM
Flow Rate @ 40 ft of Head (Maximum)
60 gpm
Current
3.6 or 1.8 A
Best Efficiency Head
48 ft
Flow Rate (Maximum)
116 gpm
Viscosity (Maximum)
31 SUS
Flow Rate @ 15 ft of Head (Maximum)
98 gpm
Priming
Manual
Discharge Rotation
90 Degrees Increments
Flow Rate @ 10 ft of Head (Maximum)
100 gpm
Intake Pipe Type
NPT
Case Pressure (Maximum)
150 psi
Ambient Temperature (Minimum)
40 Degrees F
Flow Rate @ 30 ft of Head (Maximum)
76 gpm
Flow Rate @ 5 ft of Head (Maximum)
102 gpm
For Use With Potable Systems
No
Impeller Design
Closed
Ambient Temperature (Maximum)
104 Degrees F
Specific Gravity (Maximum)
1
Media Temperature (Minimum)
40 Degrees F

Description

Centrifugal Pump, Discharge Pipe Size 1 1/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 78 ft, Flow Rate (Maximum) 116 gpm, Horsepower (Maximum) 1 1/2 hp, Housing Material 304 Stainless Steel, Impeller Design Closed, Impeller Material 304 Stainless Steel, Intake Pipe Size 1 1/2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 200 Degrees F, Phase Three, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 31 SUS, Flow Rate @ 10 ft of Head (Maximum) 100 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
