  9. Pump, 1/3 HP, 115/230V, 6.0/3.0 Amp

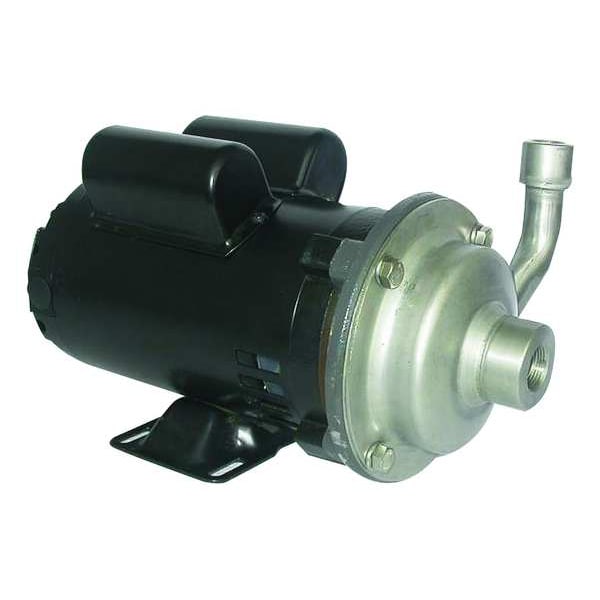

Dayton Pump, 1/3 HP, 115/230V, 6.0/3.0 Amp 4JMV2 - main

Pump, 1/3 HP, 115/230V, 6.0/3.0 Amp

  • Mfr # 4JMV2

  • Zoro # G3390527

product price: $626.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 hp
Housing Material
304 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
21 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4JMV2
Zoro #
G3390527
UPC #
190735326572
Country of Origin
China

Dimensions

Max. Dia. Solids
1/8 in
Width
6 1/2 in
Length
12 11/16 in
Manufacturers Warranty Length
1 yr
Height
7 7/8 in
Overall Width
6.5 in
Overall Length
12.7 in
Overall Height
7.9 in
Discharge Pipe Size
1/2 in
Intake Pipe Size
3/4 in
Shaft Outer Diameter
7/16 in
Solid Diameter (Maximum)
0.13 in

Details

HP
1/3 hp
Item
Chemical Resistant Centrifugal Pump
Housing Material
304 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
21 gpm @ 5 ft
Max. Head
48 ft
Best Efficiency GPM @ Head
10 gpm @ 26 ft
Inlet
3/4 in NPT
Outlet
1/2 in NPT
Motor Enclosure
Open Dripproof
GPM of Water @ 15 Ft. of Head
18
GPM of Water @ 5 Ft. of Head
21
Impeller Type
Closed
NEMA/IEC Frame
56J
Duty
Continuous
Agency Compliance
CUS
Shaft Material
Stainless Steel
Motor Type
Permanent Split Capacitor
Port Rotation
90 Degrees Increments
GPM of Water @ 25 Ft. of Head
11
Screw Material
Stainless Steel
Best Efficiency Range GPM @ Head
11 to 19 gpm @ 28 to 6 ft
Service Factor
1.6
Inlet Pressure
128 psi
GPM of Water @ 20 Ft. of Head
15
GPM of Water @ 40 Ft. of Head
1
Bearing Type
Ball
Max. Specific Gravity
1.0
Wetted Materials
304 Stainless Steel, Carbon, Ceramic, Viton
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Hz
60
Drain Plug
No
Seal Type
Mechanical
Includes
Manual
Amps
6.0/3.0
Application
Chemical Processing, Circulation, Cooling, Liquids Transfer, Pressure Boosting and Circulating
Motor RPM
3,450 RPM
Min. GPM @ Head
1 gpm @ 40 ft
Max. Liquid Temp.
200 Degrees F
Max. Case Pressure
150 psi
GPM of Water @ 10 Ft. of Head
20
Max. Fluid Viscosity
31 SUS
Impeller Material
304 Stainless Steel
GPM of Water @ 30 Ft. of Head
4
Volute Material
304 Stainless Steel
Standards
CUS
Current
6.0 or 3.0 A
Nameplate Voltage
115/230V AC
Specific Gravity (Maximum)
1
Case Pressure (Maximum)
150 psi
Flow Rate @ 40 ft of Head (Maximum)
2 gpm
Flow Rate @ 1 ft of Head (Maximum)
24.5 gpm
Wetted Material
304 Stainless Steel, Carbon, Ceramic, Viton
Flow Rate @ 15 ft of Head (Maximum)
20 gpm
Flow Rate @ 10 ft of Head (Maximum)
22 gpm
Discharge Pipe Type
NPT
Feet of Head (Maximum)
50 ft
Flow Rate @ 25 ft of Head (Maximum)
11 gpm
Frequency
60 Hz
Ambient Temperature (Maximum)
104 Degrees F
Horsepower (Maximum)
1/3 hp
Motor Speed (Maximum)
3,450 RPM
Impeller Design
Closed
Intake Pipe Type
NPT
Media Temperature (Minimum)
40 Degrees F
Best Efficiency Head
26 ft
Media Temperature (Maximum)
200 Degrees F
Flow Rate (Minimum)
1 gpm
Viscosity (Maximum)
31 SUS
Duty Cycle
Continuous
Flow Rate @ 5 ft of Head (Maximum)
23.5 gpm
Shut Off Pressure (Maximum)
150 psi
Compatible Motor Frame
56J NEMA
Discharge Rotation
90 Degrees Increments
Ambient Temperature (Minimum)
40 Degrees F
Flow Rate @ 30 ft of Head (Maximum)
10 gpm
Flow Rate (Maximum)
21 gpm
For Use With Potable Systems
No
Best Efficiency Flow
10 gpm
Flow Rate @ 20 ft of Head (Maximum)
18 gpm
Priming
Manual

Description

Centrifugal Pump, Discharge Pipe Size 1/2 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 50 ft, Flow Rate (Maximum) 21 gpm, Horsepower (Maximum) 1/3 hp, Housing Material 304 Stainless Steel, Impeller Design Closed, Impeller Material 304 Stainless Steel, Intake Pipe Size 3/4 in, Intake Pipe Type NPT, Media Temperature (Maximum) 200 Degrees F, Phase Single, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 31 SUS, Flow Rate @ 10 ft of Head (Maximum) 22 gpm
