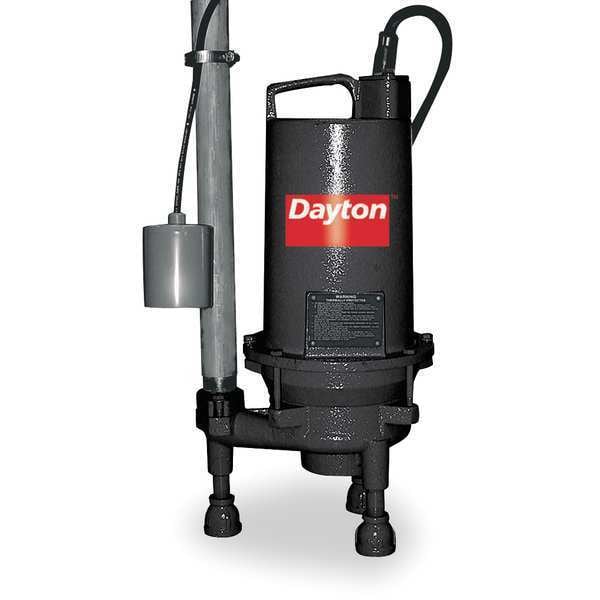

Dayton Pump, Grinder, 2 HP 3BB97 - main

Pump, Grinder, 2 HP

  • Mfr # 3BB97

  • Zoro # G1354166

product price: $2,682.99
/ea
Free Shipping & Returns

Key Features

HP
2 hp
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3BB97
Zoro #
G1354166
UPC #
190735280232
Country of Origin
China

Dimensions

Min. Sump Pit Dia.
16 in
Cord Length
20 ft
Length
21" FNPT
Manufacturers Warranty Length
1 yr
Cord Length - Pumps
20 ft.
Height
21"
Diameter
8-13/16"
Overall Length
21 in
Discharge Dia.
1 1/4 in
Overall Height
21 in
Body Dia.
8 13/16 in
Sump Pit Diameter - Minimum
16 in
Discharge Diameter
1 1/4 in
Body Diameter
8 7/8 in

Details

HP
2 hp
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
Cast Iron
Max. Head
100 ft
Impeller Material
Cast Iron
GPM of Water @ 35 Ft. of Head
58
GPM of Water @ 40 Ft. of Head
57
Motor Type
PSC
Amps
15 A
Off Point
10 in
Duty
Continous
GPM of Water @ 70 Ft. of Head
48
Hz
60
GPM of Water @ 60 Ft. of Head
54
GPM of Water @ 200 Ft. of Head
28
Item - Grinder Pumps
Grinder Pump
Switch Type
Tether
Pump Body Material
Cast Iron
GPM of Water @ 25 Ft. of Head
57
Housing Material
Cast iron
GPM of Water @ 90 Ft. of Head
28
Max. Head - Pumps
100 ft.
GPM of Water @ 45 Ft. of Head
56
GPM of Water @ 80 Ft. of Head
40
GPM of Water @ 5 Ft. of Head
58
On Point
18 in
Shaft Seal Material - Pumps
Carbon, Ceramic
Max. Liquid Temp.
77 Degrees F
Pump RPM
3450
Phase
Single
Handle
Yes
Item
Grinder Pump
Impeller Material - Pumps
Cast Iron
Input Phase AC
1
Discharge NPT
1-1/4" F
Includes
20 Feet SOW Cable, Leg Kit, Type 440 Stainless Steel Hardware, Type 440 Stainless Steel Radial Cutter, Type 440 Stainless Steel Shaft, Type 440 Stainless Steel Shredding Ring
GPM of Water @ 55 Ft. of Head
48
Voltage - Pumps
240VAC
Shaft Seal
Silicon Carbide
GPM of Water @ 20 Ft. of Head
57
Switch Type - Pumps
Tether
Voltage
240
Switch Electrical Connection
Piggyback
Flow Rate @ 40 Ft. of Head
57 gpm
Discharge Standard
NPT
Flow Rate @ 20 Ft. of Head
57 gpm
Rated Voltage
240V AC
RPM
3,450 RPM
Flow Rate @ 60 Ft. of Head
54 gpm
Duty Cycle
Continuous
Discharge Gender
Female
Discharge
1 1/4 in FNPT
Horsepower
2 hp
Shaft Seal Material
Carbon/Ceramic
Frequency
60 Hz
Current
15 A
Liquid Temperature - Maximum
77 Degrees F
Feet of Head - Maximum
100 ft
Rotation Speed - Maximum
3,450 RPM
Flow Rate @ 10 ft of Head
56 gpm

Description

Grinder Pump, HP 2 hp, Rated Voltage 240V AC, Hz 60, Phase - Pumps 1, Amps 15 A, Motor Type PSC, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Off Point 10 in, On Point 18 in, Flow Rate @ 20 Ft. of Head 57 gpm, Flow Rate @ 40 Ft. of Head 57 gpm, Flow Rate @ 60 Ft. of Head 54 gpm, Max. Head 100 ft, Min. Sump Pit Dia. 16 in, Body Dia. 8 13/16 in, Overall Height 21 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
