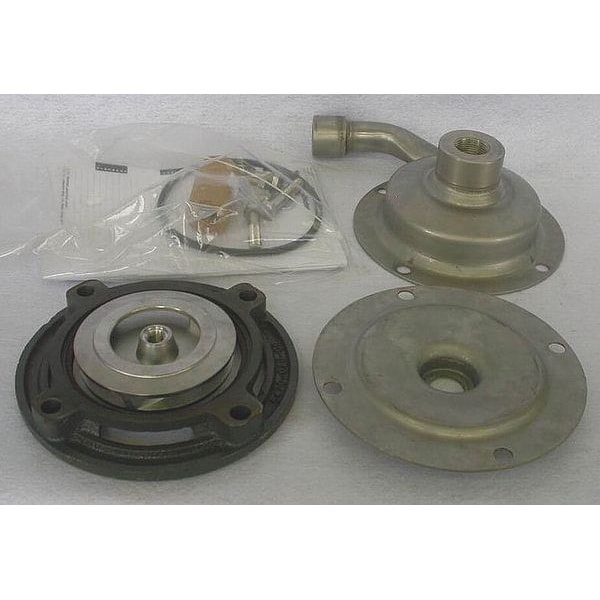

Dayton Pump Head, 1/3 HP, 3/4 x 1/2 In. 4JMY1 - main

Pump Head, 1/3 HP, 3/4 x 1/2 In.

  • Mfr # 4JMY1

  • Zoro # G1928647

product price: $380.99
/ea
Free Shipping & Returns

Key Features

HP Required
1/3 hp
Inlet
3/4 in
Outlet
1/2 in
Wetted Materials
Carbon, Ceramic, 304 SS, Viton
Seal Material
Carbon, Ceramic, Viton
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4JMY1
Zoro #
G1928647
UPC #
190735326831
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Max. Dia. Solids
1/8
Length
3 in
Width
8 3/8 in
Height
7 13/16 in
Overall Length
3 in
Intake Pipe Size
3/4 in
Solid Diameter (Maximum)
0.13 in
Discharge Pipe Size
1/2 in
Overall Width
8.3 in
Overall Height
7.8 in

Details

HP Required
1/3 hp
Inlet
3/4 in
Outlet
1/2 in
Wetted Materials
Carbon, Ceramic, 304 SS, Viton
Seal Material
Carbon, Ceramic, Viton
For Use With
Clear, Non-Abrasive, Non-Flammable Liquids Compatible with Pump Components
Impeller Material
304 Stainless Steel
GPM of Water @ 10 Ft. of Head
20
Best Efficiency GPM @ Head
10 @ 26 ft
Max. Case Pressure
150 psi
Max. Specific Gravity
1.0
Use with Frame Number
56J
Max. GPM @ Head (Ft.)
21 @ 5
Inlet Pressure
128 psi
Impeller Type
Closed
Includes
Hardware, Mounting Adapter, O-Rings, Seal
GPM of Water @ 40 Ft. of Head
1
Port Rotation
90 Increments
GPM of Water @ 20 Ft. of Head
15
Item
Centrifugal Pump Head
Type
Chemical Transfer, Straight
Housing Material
304 Stainless Steel
GPM of Water @ 30 Ft. of Head
4
Seal Type
Mechanical Type 21
Flow Rate @ 30 ft of Head (Maximum)
10 gpm
Volute Material
304 Stainless Steel
Discharge Pipe Type
NPT
Discharge Rotation
360 Degrees at 90 Degrees Increments
Best Efficiency Head
26 ft
Wetted Material
304 Stainless Steel, Carbon, Ceramic, Viton
Horsepower (Maximum)
1/3 hp
Duty Cycle
Continuous
Ambient Temperature (Minimum)
40 Degrees F
Media Temperature (Maximum)
200 Degrees F
Case Pressure (Maximum)
150 psi
Compatible Motor Frame
56J NEMA
Flow Rate @ 20 ft of Head (Maximum)
18 gpm
Ambient Temperature (Maximum)
104 Degrees F
Media Temperature (Minimum)
40 Degrees F
For Use With Potable Systems
No
Frequency
60 Hz
Compatible with Brand
Dayton
Flow Rate @ 10 ft of Head (Maximum)
22 gpm
Flow Rate @ 40 ft of Head (Maximum)
1 gpm
Feet of Head (Maximum)
50 ft
Best Efficiency Flow
10 gpm
Impeller Design
Closed
Motor Speed (Maximum)
3,450 RPM
Product Type
Centrifugal Pump Head
Intake Pipe Type
NPT
Specific Gravity (Maximum)
1
Compatible Grainger Part Number
4JMV2, 4JMW6

Description

Centrifugal Pump Head, Case Pressure (Maximum) 150 psi, Compatible Motor Frame 56J NEMA, Discharge Pipe Size 1/2 in, Discharge Pipe Type NPT, Discharge Rotation 360 Degrees at 90 Degrees Increments, Feet of Head (Maximum) 50 ft, Flow Rate @ 10 ft of Head (Maximum) 22 gpm, Flow Rate @ 20 ft of Head (Maximum) 18 gpm, Flow Rate @ 30 ft of Head (Maximum) 10 gpm, Flow Rate @ 50 ft of Head (Maximum) Not Applicable, Horsepower (Maximum) 1/3 hp, Housing Material 304 Stainless Steel
