  9. Pump, Sump, 0.50 HP

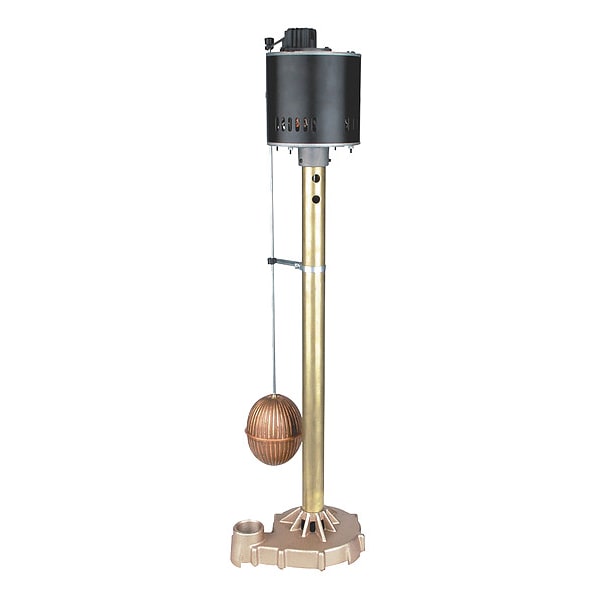

Dayton Pump, Sump, 0.50 HP 4KU63 - main

Pump, Sump, 0.50 HP

  • Mfr # 4KU63

  • Zoro # G2197483

product price: $546.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Cast Bronze
Voltage
115
HP
1/2 hp
Switch Actuation
Vertical Float
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4KU63
Zoro #
G2197483
UPC #
190735328606
Country of Origin
China

Dimensions

Base to Motor Height
25"
Cord Length
10 ft
Height
30-1/2"
Cord Size
18/3
Cord Length - Pumps
10 ft.
Max. Dia. Solids
3/8"
Min. Sump Pit Dia.
18 in
Diameter
12"
Base to Motor Height (In.)
25
Max. Diameter Solids
3/8 in
Body Dia.
12 in
Overall Height
30 1/2 in
Discharge Dia.
1 1/4 in
Basket Dia.
25 in
Basin Dia.
25 in
Sump Pit Diameter - Minimum
18 in
Solids Diameter - Maximum
3/8 in
Body Diameter
12 in
Sump Pit Depth - Minimum
24 in
Discharge Diameter
1 1/4 in

Details

Housing Material
Cast Bronze
Voltage
115
HP
1/2 hp
Switch Actuation
Vertical Float
Phase
Single
Switch Electrical Connection
Integral
Outlet
1-1/4
Body Material
Cast Bronze
Switch Type
Vertical
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
48 gpm
Motor Type
PSC
Impeller Material - Pumps
Stainless Steel
Max. Liquid Temp.
140 Degrees F
Discharge NPT
1-1/4" F
Input Phase AC
1
Amps
5 A
Item - Sump Pumps
Non-Submersible Sump Pump
GPM of Water @ 10 Ft. of Head
48
Column Material
Brass
GPM of Water @ 15 Ft. of Head
33
Base Material
Stainless Steel
GPM of Water @ 5 Ft. of Head
60
Off Point
5 in
Impeller Material
Stainless Steel
Amps - Pumps
5.00
Float Material
Copper
Bearing Type
Dual Ball
Insulation Class
B
Cord Type
SJT
Hz
60 Hz
Duty
Intermittent
Pump Body Material
Cast Bronze
Item
Pedestal Sump Pump
Voltage - Pumps
120VAC
GPM of Water @ 20 Ft. of Head
10
Thermal Protection
Auto
On Point
13 in-15 in
For Use With
Water Only
Max. Head
22 ft
Motor RPM
1750
Max. Head - Pumps
22 ft.
Switch Type - Pumps
Vertical
Agency Compliance
cCSAus
RPM
1,750 RPM
Flow Rate @ 20 Ft. of Head
10 gpm
Alarm Included
No
Rated Voltage
120V AC
Discharge Gender
Female
Flow Rate @ 15 Ft. of Head
33 gpm
Discharge Standard
NPT
NEC Cord Designation
SJT
Discharge
1-1/4 in FNPT
Duty Cycle
Intermittent
Flow Rate @ 5 Ft. of Head
60 gpm
Standards
cCSAus
Volute Material
Brass
Frequency
60 Hz
Includes Alarm
No Alarm Included
Feet of Head - Maximum
22 ft
Impeller Design
Vortex
Hazardous Location Class
Not Rated
Rotation Speed - Maximum
1,750 RPM
Current
5 A
Horsepower
1/2 hp
Flow Rate @ 10 ft of Head
48 gpm
Liquid Temperature - Maximum
140 Degrees F
For Media Type
Clear Water, Trash Water
Power Source
Corded Electric

Description

Pedestal Sump Pump, HP 1/2 hp, Rated Voltage 120V AC, Hz 60 Hz, Phase - Pumps 1, Amps 5 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 5 in, On Point 13 in-15 in, Body Material Cast Bronze, Impeller Material Stainless Steel, Flow Rate @ 5 Ft. of Head 60 gpm, Flow Rate @ 10 Ft. of Head 48 gpm, Flow Rate @ 15 Ft. of Head 33 gpm, Flow Rate @ 20 Ft. of Head 10 gpm, Max. Diameter Solids 3/8 in, Min. Sump Pit Dia. 18 in, Body Dia. 12 in, Overall Height 30 1/2 in
