Shop DAYTON

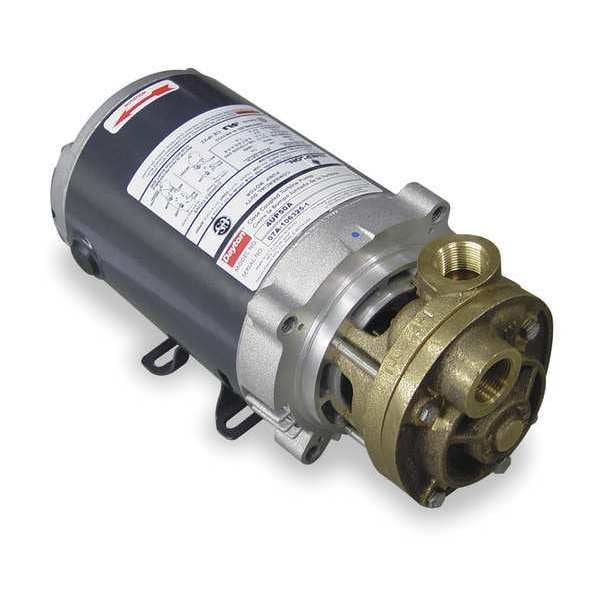

Pump, Turbine, 1/2 HP

  • Mfr # 4UP51

  • Zoro # G3170921

product price:  $1,019.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Voltage
115/208-230
Wetted Materials
Bronze
Seal Material
Buna-N/Carbon/Ceramic (Face)
Max. Pressure
300 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4UP51
Zoro #
G3170921
UPC #
190735335390
Country of Origin
United States

Dimensions

Width
5 11/16 in
Max. Dia. Solids
25 Microns
Manufacturers Warranty Length
1 yr
Height
5 3/16 in
Overall Width
5.69 in
Overall Height
5.19 in
Solid Diameter (Maximum)
25 micron
Compatible Intake Pipe Size
3/4 in
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
3/4 in
Discharge Diameter
3/4 in
Inlet Diameter
3/4 in

Details

HP
1/2 hp
Voltage
115/208-230
Wetted Materials
Bronze
Seal Material
Buna-N/Carbon/Ceramic (Face)
Max. Pressure
300 psi
Item
Turbine Pump
Motor Enclosure
Open Drip Proof
Housing Material
Bronze
Duty
Continuous
Inlet
3/4 in
Impeller Type
Regenerative Turbine
GPM @ 10 PSI
6.2
Inlet (In.)
3/4
Bearing Type
Sealed Ball Bearing (Motor Bearing)
Includes
Bronze Casing
GPM @ 20 PSI
5.8
GPM @ 75 PSI
4.0
Impeller Material
Bronze
Max. Case Pressure
300 psi
Best Efficiency GPM @ Head
4.7 gpm @ 52 psi ft
Phase
Single
GPM @ 50 PSI
4.8
Inlet Pressure
200 psi
Frame
56c
GPM @ 60 PSI
4.5
Motor Type
Capacitor-Start
Port Rotation
90 Degrees Increments
GPM @ 30 PSI
5.5
Max. Specific Gravity
1
Outlet
3/4 in
Agency Compliance
CE & CSA ON MOTOR ONLY, UL
Standards
CE Certified (Motor Only), CSA Certified (Motor Only), UL Listed
Flow Rate @ 80 psi
3.85 gpm
Duty Cycle
Continuous
Flow Rate @ 100 psi
3.2 gpm
Shut Off Pressure (Maximum)
110 psi
Intake Type
NPT
NPSHr
462 ft
Flow Rate @ 120 psi
2.5 gpm
Pump Housing Material
Bronze
Flow Rate @ 30 psi
5.5 gpm
Discharge Type
NPT
Flow Rate @ 90 psi
3.55 gpm
Discharge Rotation
90 Degrees Increments
Best Efficiency Head
52 ft
Motor Frame Designation
56C
Nameplate Voltage
115/208-230V AC
Wetted Material
Bronze
Impeller Design
Peripheral Vaned
Flow Rate @ 60 psi
4.5 gpm
Flow Rate @ 50 psi
4.8 gpm
Flow Rate @ 10 psi
6.2 gpm
Case Pressure (Maximum)
300 psi
Flow Rate @ 20 psi
5.8 gpm
Specific Gravity (Maximum)
1
Maximum Flow Rate
6.2 gpm
Minimum Flow Rate
4 gpm
Maximum Media Temperature
230 Degrees F
Horsepower
1/2 hp
Seal Type
Type 21
Flow Rate @ 40 psi
5.2 gpm
Flow Rate @ 70 psi
4.1 gpm
Ambient Temperature - Minimum
-20 Degrees F
Shaft Seal Type
Mechanical
Case Pressure - Maximum
300 psi
Pump Design
Regenerative Turbine
Ambient Temperature - Maximum
86 Degrees F
Media Temperature - Minimum
-20 Degrees F
Media Temperature - Maximum
230 Degrees F
Priming
Manual
Flow Rate (Maximum)
6.2 gpm
Shut Off Pressure - Maximum
177 psi
Feet of Head (Maximum)
410 ft
Operation
Manual
Pumping Application
Boiler Feed, Booster Service, Condensate Return, Cooling and Heat Transfer, Liquid Transfer
Shaft Seal Material
Buna-N/Carbon/Ceramic
Full Load Current
6.9/3.5-3.4
Chemical Compatibility
Water
Best Efficiency Flow
4.7 gpm
Power Source
Electric Motor
Number of Stages
1
Flow Rate (Minimum)
4 gpm
Power Source - TS Only
Electric Motor

Description

Turbine Pump, Phase Single, Pump Housing Material Bronze, Motor Enclosure Open Drip Proof, Horsepower 1/2 hp, Nameplate Voltage 115/208-230V AC, Shut Off Pressure (Maximum) 110 psi, Maximum Flow Rate 6.2 gpm, Flow Rate @ 10 psi 6.2 gpm, Flow Rate @ 20 psi 5.8 gpm, Flow Rate @ 30 psi 5.5 gpm, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 3/4 in, Discharge Type NPT, Motor Type Capacitor-Start, Best Efficiency Head 52 ft, Case Pressure (Maximum) 300 psi
