Shop DAYTON

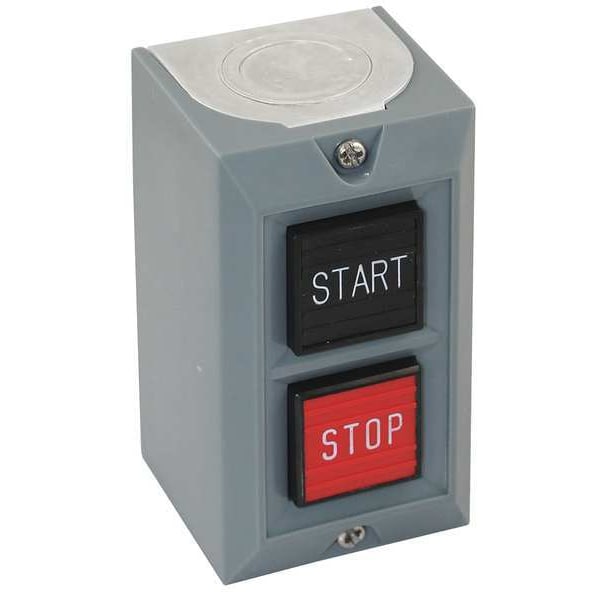

Push Button Control Station, 1NO/1NC, 25mm

  • Mfr # 20C794

  • Zoro # G7465927

product price:  $60.19
/ea

Key Features

Legend
Start/Stop
Number of Pilot Lights
0
Type of Operator
Push Button/Push Button
Contact Form
1NO/1NC
Number of Operators
2
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
20C794
Zoro #
G7465927
UPC #
190735152119
Country of Origin
China

Dimensions

Size
25 mm
Width
3.69 in
Height
2.34 in
Depth
2.06 in
Panel Cutout Diameter
25 mm
Overall Width
3.69 in
Overall Depth
2.06 in
Hub Size - Maximum
3/4 in
Overall Height
2.34 in

Details

Item
Control Station
Legend
Start/Stop
Number of Pilot Lights
0
Type of Operator
Push Button/Push Button
Contact Form
1NO/1NC
Number of Operators
2
NEMA Rating
1
Contact Rating
10A @ 600V AC, 5A @ 24V DC
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, NEMA 50, UL 508
Head Material
Plastic
Action
Momentary/Momentary
Hub
1/2 in to 3/4 in NPT
Mechanical Interlock
No
Enclosure Color
Gray
Enclosure Material
Plastic
NEMA Contact Rating Designation
A600/P600
Operator Color
Black, Red
Mounting
Wall
IP Rating
IP40
Product Type
Control Station
NEMA Enclosure Rating
1
Operator Configuration
(2) Push Buttons
DC Contact Rating
5 A @ 24 V
AC Contact Rating
10 A @ 600 V
Includes Mechanical Interlock
No Mechanical Interlock Included.

Description

Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 25 mm, Legend Start/Stop, Type of Operator Push Button/Push Button, Action Momentary/Momentary, Operator Color Black, Red, Contact Form 1NO/1NC, Mechanical Interlock No, NEMA Rating 1, Contact Rating 10A @ 600V AC, 5A @ 24V DC, NEMA Contact Rating Designation A600/P600, IP Rating IP40, Mounting Wall, Hub 1/2 in to 3/4 in NPT, Height 2.34 in, Width 3.69 in, Depth 2.06 in, Head Material Plastic, Enclosure Material Plastic
