  11. Push Trolley, 10000 lb. Load Capacity
Shop All Utility Carts
Dayton

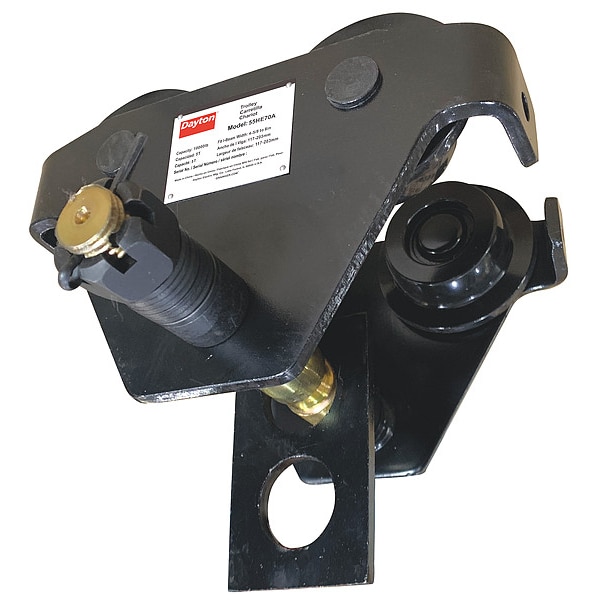

Push Trolley, 10000 lb. Load Capacity

original price: $602.24
32% off
new price: $408.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Load Capacity 10,000 lb
  • Head Room To Bail 2 5/8 in
  • Includes Hanger Plate, Hanger Shaft, Washers
  • Trolley Wheel Dia. 4 5/8 in
  • Fits Beam Height 10 in to 24-1/2 in
See all product information

Product Information

Dimensions

Trolley Wheel Dia. 4 5/8 in
Fits Beam Height 10 in to 24-1/2 in
Min. Radius Curve 39 3/8 in
For Max. Beam Flange Width 8 in
For Maximum Beam Height 24 1/2 in
For Min. Beam Flange Width 4 5/8 in
Minimum Radius Curve 39 3/8 in
For Minimum Beam Height 10 in
Trolley Wheel Diameter 4 3/5 in
Mfr. Warranty Length 1 yr

Details

Load Capacity 10,000 lb
Item Trolley
Head Room To Bail 2 5/8 in
Includes Hanger Plate, Hanger Shaft, Washers
Trolley Item Push Trolley
Wheel Material Steel
Fits Beam Flange W 4-5/8 in to 8 in
Head Room To Shaft 8 39/64 in
Standards ASME B30.17
Trolley Wheel Material Steel
For Beam Shape Flat
Headroom to Mounting Point 2 5/8 in
Maximum Load Capacity 10,000 lb
Trolley Type Push
Headroom to Connecting Shaft 8 5/8 in
Trolley Frame Material Cast Iron

Description

Trolley, Trolley Type Push, Maximum Load Capacity 10,000 lb, Trolley Frame Material Cast Iron, For Beam Shape Flat, For Minimum Beam Flange Width 4 5/8 in, For Maximum Beam Flange Width 8 in, Headroom to Connecting Shaft 8 5/8 in, Headroom to Mounting Point 2 5/8 in, For Minimum Beam Height 10 in, For Maximum Beam Height 24 1/2 in, Includes Hanger Plate, Hanger Shaft, Washers, Minimum Radius Curve 39 3/8 in, Trolley Wheel Diameter 4 3/5 in, Trolley Wheel Material Steel

Restrictions
