  9. Rectangular OEM Blower, 1400 RPM, 1 Phase, Direct Drive, Steel 1 Speed

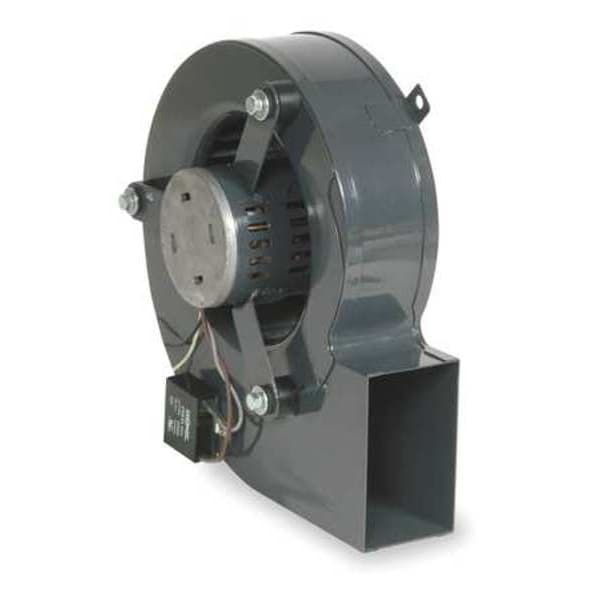

Dayton Rectangular OEM Blower, 1400 RPM, 1 Phase, Direct Drive, Steel 1 Speed 1TDR2 - main

Rectangular OEM Blower, 1400 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 1TDR2

  • Zoro # G0971634

product price: $131.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
220
Drive Type
Direct Drive
Full Load Amps
1.05
Housing Material
Steel
Inlet Dia.
5 3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TDR2
Zoro #
G0971634
UPC #
190735147139
Country of Origin
China

Dimensions

Inlet Dia.
5 3/8 in
Overall Height
11 in
Overall Width
4 1/8 in
Blower Wheel Diameter
7 in
Overall Depth
10 1/4 in
Outlet Width
2 1/2 in
Dimension D
2 5/8 in
Dimension A
10 5/16 in
Dimension F
3 3/8 in
Blower Wheel Width
1 7/8 in
Dimension C
4 in
Dimension J
2 1/4 in
Outlet Height
4 3/16 in
Dimension B
10 in
Lead Length
13 in
Dimension E
11 1/16 in
Housing Width
4 1/8 in
Inlet Diameter
5 3/8 in
Wheel Width
1 7/8 in
Shaft Diameter
8 mm
Wheel Bore Diameter
8 mm
Wheel Diameter
7 in
Manufacturer Warranty Length
1 yr Limited
Housing Height
11 in
Housing Depth
10 1/4 in

Details

CFM @ 0.100-In. SP
220
Drive Type
Direct Drive
Full Load Amps
1.05
Housing Material
Steel
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
No
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Max. Inlet Temp.
104 Degrees F
Replaces
4C754
Mounting Position
All Position
CFM @ 0.000-In. SP
229
Bearing Type
Ball
Housing Finish
Enamel
CFM @ 0.300-In. SP
205
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Motor Insulation
Class B
Item
OEM Blower
RPM
1400
Motor Enclosure
Open
Max. Ambient Temp.
104 Degrees F
Housing Color
Gray
CFM @ 0.200-In. SP
213
CFM @ 0.500-In. SP
184
Hz
50/60
CFM @ 0.400-In. SP
198
Wheel Type
Forward-Curved
Replacement For
4C754
Speed Controllable
No
Market
Commercial, Industrial, Residential
Motor Type
Permanent Split Capacitor
Compatible Speed Control
No
Number of Inlets
1
Motor Speed
1,400 RPM
Wheel Material Finish
Galvanized
Spark Resistant Construction Type
Not Rated
Flange Type
Non-Flanged
OEM Replacement
Yes
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
For Location
Indoor
Mounting Orientation
Multiposition
Motor Insulation Class
B
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
For High-Static Pressure Applications
No
Hazardous Location Application
No
High-Efficiency Motor
No
Application
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Includes Motor
Yes
Corrosion Resistant
No
Current
1.05 A
Chemical Resistant
No
Thermal Overload Protection
Yes
Electrical Connection
Wire Leads
Resistance Properties
Corrosion Resistant
For Air Type
Clean Air
Outlet Shape
Rectangular
Brake Horsepower
1/20 hp
Airflow @ 0.100 in SP
220 cfm
Airflow @ 0.500 in SP
184 cfm
Motor Location
Out of Airstream
Includes Mounting Hardware
No
Minimum Ambient Temperature
14 Degrees F
Nameplate Voltage
115V AC
Airflow @ 0.000 in SP
229 cfm
Mount Type
All Position
Airflow @ 0.400 in SP
198 cfm
Motor Frame Designation
3.3" PSC Motor
Sound Level
Not Rated
Housing Material Grade
SPCC
Motor Duty Class
Continuous
Minimum Fan Speed
0 RPM
Assembly
Assembled
Maximum Ambient Temperature
104 Degrees F
Rotation
CCW
Maximum Static Pressure
1 in wc
Features
Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation
Maximum Inlet Air Temperature
104 Degrees F
Frequency
50/60 Hz
Motor Horsepower
1/20 hp
Maximum Fan Speed
1,400 RPM
Airflow @ 0.250 in SP
207 cfm
Motor IP Rating
IP20
Housing Material Finish
Enamel
AMCA Fan Class
Not Rated
Housing Material Gauge
1 mm
Wheel Material
Steel
Voltage
115
Mounting
All Position

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 7 in, Airflow @ 0.000 in SP 229 cfm, Airflow @ 0.100 in SP 220 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 207 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 198 cfm, Airflow @ 0.500 in SP 184 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable, Airflow @ 1.250 in SP Not Applicable
