  9. Rectangular OEM Blower, 1500/1085 RPM, 1 Phase, Direct Drive, Steel 2 Speed

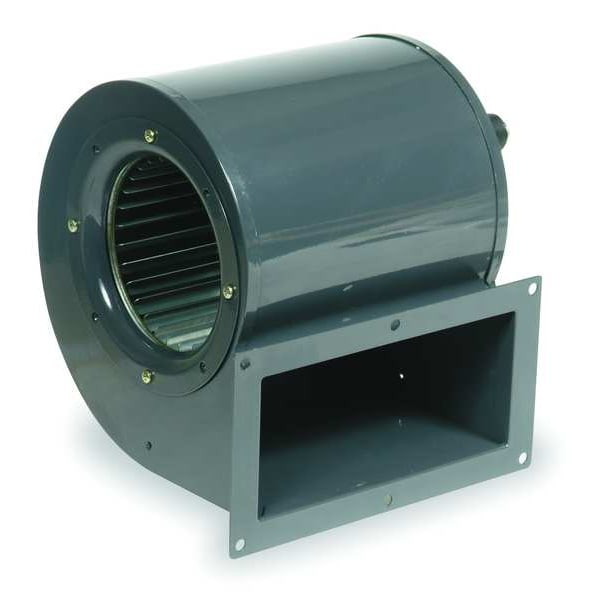

Dayton Rectangular OEM Blower, 1500/1085 RPM, 1 Phase, Direct Drive, Steel 2 Speed 1TDT6 - main

Rectangular OEM Blower, 1500/1085 RPM, 1 Phase, Direct Drive, Steel 2 Speed

  • Mfr # 1TDT6

  • Zoro # G2571651

product price: $135.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
405/290
Drive Type
Direct Drive
Full Load Amps
1.10/0.85
Housing Material
Steel
Includes
Discharge Mounting Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TDT6
Zoro #
G2571651
UPC #
190735147269
Country of Origin
Taiwan, Province of China

Dimensions

Inlet Dia.
4 9/16 in
Overall Height
9 7/8 in
Overall Width
8 15/16 in
Blower Wheel Diameter
5 1/8 in
Dimension L
8 13/16 in
Dimension B
10 1/2 in
Dimension D
8 3/16 in
Dimension E
9 7/8 in
Lead Length
13 in
Dimension J
9 7/16 in
Outlet Width
7 3/4 in
Dimension F
3 5/16 in
Dimension M
4 3/8 in
Overall Depth
8 15/16 in
Dimension K
5 in
Dimension A
8 7/8 in
Dimension C
9 1/4 in
Outlet Height
3 1/2 in
Blower Wheel Width
7 in
Housing Height
9 3/8 in
Inlet Diameter
4 1/2 in
Flange Size
9 7/16 in W x 5 in H
Wheel Bore Diameter
8 mm
Shaft Diameter
8 mm
Manufacturer Warranty Length
1 yr Limited
Wheel Width
7 in
Wheel Diameter
5 1/8 in
Housing Depth
8 1/2 in
Housing Width
9 1/4 in

Details

CFM @ 0.100-In. SP
405/290
Drive Type
Direct Drive
Full Load Amps
1.10/0.85
Housing Material
Steel
Includes
Discharge Mounting Flange
Number of Speeds
2
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
Yes
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
RPM
1500/1085
Hz
50/60
CFM @ 0.200-In. SP
370/285
CFM @ 0.500-In. SP
150/130
Housing Finish
Enamel
Item
OEM Blower
Motor Enclosure
Open
Max. Ambient Temp.
104 Degrees F
Housing Color
Gray
CFM @ 0.300-In. SP
330/260
Bearing Type
Ball
Mounting Position
All Position
Replaces
4C565
CFM @ 0.000-In. SP
428/293
Wheel Type
Forward-Curved
Max. Inlet Temp.
104 Degrees F
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
CFM @ 0.600-In. SP
70/30
CFM @ 0.400-In. SP
225/188
Motor Insulation
Class B
Speed Controllable
No
Motor Type
Permanent Split Capacitor
Motor Speed
1,500 RPM
Motor Frame Designation
3.3" PSC motor
Airflow @ 0.100 in SP
405 cfm
Includes Motor
Yes
Motor Insulation Class
B
For Location
Indoor
Chemical Resistant
No
Frequency
50/60 Hz
Airflow @ 0.250 in SP
353 cfm
Minimum Fan Speed
0 RPM
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Nameplate Voltage
115V AC
Outlet Shape
Rectangular
OEM Replacement
Yes
Assembly
Assembled
Brake Horsepower
1/15 hp
Resistance Properties
Corrosion Resistant
Airflow @ 0.000 in SP
428 cfm
Corrosion Resistant
No
Maximum Static Pressure
5/8 in wc
Sound Level
Not Rated
Number of Inlets
2
Features
The Dynamically Balanced Blower Provides Smooth and Quiet Operation, The Motor Has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, The Noise and Vibration are Held to a Minimum to Maintain Cfm at Higher Static Pressures
AMCA Fan Class
Not Rated
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Minimum Ambient Temperature
14 Degrees F
Airflow @ 0.400 in SP
225 cfm
Housing Material Grade
SPCC
Thermal Overload Protection
Yes
Housing Material Finish
Enamel
Hazardous Location Application
No
Maximum Inlet Air Temperature
104 Degrees F
Maximum Fan Speed
1,500 RPM
Rotation
CCW
Motor Duty Class
Continuous
Motor IP Rating
IP20
High-Efficiency Motor
No
Airflow @ 0.500 in SP
150 cfm
Includes Mounting Hardware
No
Motor Horsepower
1/15 hp
Spark Resistant Construction Type
Not Rated
For High-Static Pressure Applications
No
Mount Type
All Position
Flange Type
Flanged
Replacement For
4C565
Application
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
For Air Type
Clean Air
Current
1.10/0.85 A
Mounting Orientation
Multiposition
Maximum Ambient Temperature
104 Degrees F
Wheel Material Finish
Galvanized
Motor Location
Out of Airstream
Electrical Connection
Wire Leads
Market
Commercial, Industrial, Residential
Compatible Speed Control
No
Housing Material Gauge
1 mm
Wheel Material
Steel
Voltage
115
Mounting
All Position
Type
2 Speed

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 5 1/8 in, Airflow @ 0.000 in SP 428 cfm, Airflow @ 0.100 in SP 405 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 353 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 225 cfm, Airflow @ 0.500 in SP 150 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable, Airflow @ 1.250 in SP Not Applicable
