  9. Rectangular OEM Blower, 1670 RPM, 1 Phase, Direct Drive, Steel 1 Speed

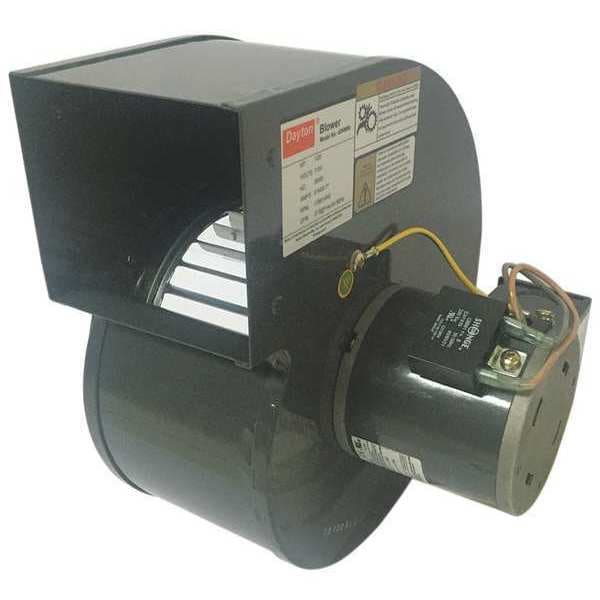

Dayton Rectangular OEM Blower, 1670 RPM, 1 Phase, Direct Drive, Steel 1 Speed 45NM97 - main

Rectangular OEM Blower, 1670 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 45NM97

  • Zoro # G3851325

product price: $81.85
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
255
Drive Type
Direct Drive
Full Load Amps
0.43
Housing Material
Steel
Inlet Dia.
4 9/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45NM97
Zoro #
G3851325
UPC #
190735890417
Country of Origin
China

Dimensions

Inlet Dia.
4 9/16 in
Overall Height
9 3/8 in
Overall Width
7 1/2 in
Blower Wheel Diameter
5 1/8 in
Dimension F
3 5/16 in
Dimension L
4 7/8 in
Overall Depth
8 7/8 in
Outlet Width
4 in
Dimension M
4 3/8 in
Dimension A
8 7/8 in
Dimension J
5 1/2 in
Dimension D
4 1/4 in
Lead Length
13 in
Dimension E
9 7/8 in
Dimension C
7 9/16 in
Outlet Height
3 7/16 in
Blower Wheel Width
1 7/8 in
Housing Width
7 1/2 in
Manufacturer Warranty Length
1 yr Limited
Housing Height
9 3/8 in
Wheel Diameter
5 1/8 in
Inlet Diameter
4 1/2 in
Wheel Bore Diameter
8 mm
Wheel Width
1 7/8 in
Housing Depth
8 7/8 in
Shaft Diameter
8 mm

Details

CFM @ 0.100-In. SP
255
Drive Type
Direct Drive
Full Load Amps
0.43
Housing Material
Steel
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
No
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
230V AC
Blower Thermal Protection
Auto
Blower Conduit Box
Yes
Replaces
1TDR4
RPM
1670
CFM @ 0.200-In. SP
235
CFM @ 0.400-In. SP
183
CFM @ 0.500-In. SP
135
Mounting Position
All Position
Wheel Type
Forward-Curved
Motor Enclosure
Open
Bearing Type
Ball
Motor Insulation
Class B
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Max. Inlet Temp.
104 Degrees F
Hz
50/60
Housing Finish
Enamel
Max. Ambient Temp.
104 Degrees F
Housing Color
Gray
Item
OEM Blower
CFM @ 0.000-In. SP
271
CFM @ 0.300-In. SP
210
Shop By
Closeouts
Replacement For
1TDR4
Maximum Inlet Air Temperature
104 Degrees F
Outlet Shape
Rectangular
Hazardous Location Application
No
Maximum Static Pressure
5/8 in wc
Spark Resistant Construction Type
Not Rated
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Flange Type
Non-Flanged
AMCA Fan Class
Not Rated
Motor Insulation Class
B
Airflow @ 0.100 in SP
255 cfm
Minimum Ambient Temperature
14 Degrees F
Housing Material Gauge
1 mm
Motor IP Rating
IP20
Housing Material Grade
SPCC
Number of Inlets
1
For Location
Indoor
Motor Duty Class
Continuous
Electrical Connection
Wire Leads
Compatible Speed Control
No
Airflow @ 0.400 in SP
183 cfm
For High-Static Pressure Applications
No
Sound Level
Not Rated
Mount Type
All Position
Application
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
Rotation
CW
Airflow @ 0.500 in SP
135 cfm
Airflow @ 0.250 in SP
219 cfm
Minimum Fan Speed
0 RPM
Includes Motor
Yes
Assembly
Assembled
Motor Horsepower
1/20 hp
Speed Controllable
No
Motor Speed
1,650 RPM
Frequency
50/60 Hz
Maximum Fan Speed
1,670 RPM
High-Efficiency Motor
No
For Air Type
Clean Air
Includes Mounting Hardware
No
Thermal Overload Protection
Yes
Features
Open Motor Has Cast-Aluminum End Shields for Greater Heat Dissipation, Resulting in Less Downtime and Longer Service Life, This Dayton Dynamically Balanced OEM Blower Mounts in any Position and Operates with Minimal Noise and Vibration, to Maintain cfm at Higher Static Pressures
Mounting Orientation
Multiposition
OEM Replacement
No
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Resistance Properties
Corrosion Resistant
Brake Horsepower
1/20 hp
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Housing Material Finish
Enamel
Current
0.43 A
Market
Commercial, Industrial, Residential
Motor Location
Out of Airstream
Nameplate Voltage
230V AC
Motor Type
Permanent Split Capacitor
Wheel Material Finish
Galvanized
Maximum Ambient Temperature
104 Degrees F
Chemical Resistant
No
Airflow @ 0.000 in SP
271 cfm
Motor Frame Designation
3.3" PSC motor
Corrosion Resistant
No
Wheel Material
Steel
Voltage
230

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 5 1/8 in, Airflow @ 0.000 in SP 271 cfm, Airflow @ 0.100 in SP 255 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 219 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 183 cfm, Airflow @ 0.500 in SP 135 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable, Airflow @ 1.250 in SP Not Applicable
