  9. Rectangular OEM Blower, 1700 RPM, 1 Phase, Direct Drive, Steel 1 Speed

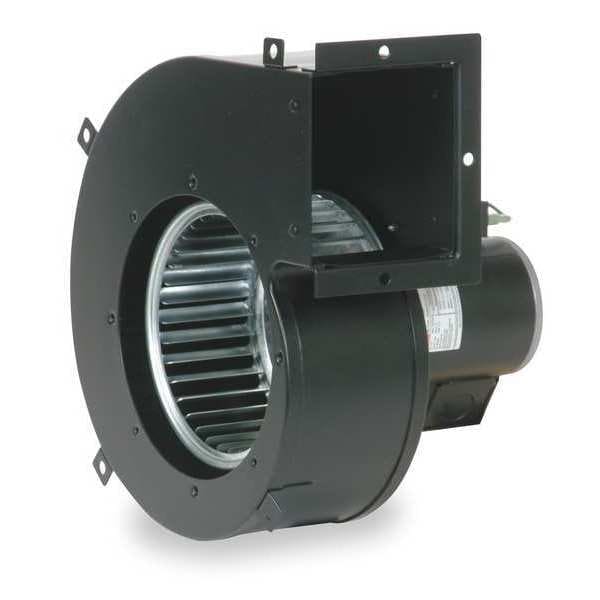

Dayton Rectangular OEM Blower, 1700 RPM, 1 Phase, Direct Drive, Steel 1 Speed 3FRG3 - main

Rectangular OEM Blower, 1700 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 3FRG3

  • Zoro # G0446521

product price: $178.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
210
Drive Type
Direct Drive
Full Load Amps
0.37
Housing Material
Steel
Includes
Discharge Mounting Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3FRG3
Zoro #
G0446521
UPC #
190735285527
Country of Origin
China

Dimensions

Inlet Dia.
5 5/16 in
Overall Height
9 7/16 in
Overall Width
8 5/8 in
Blower Wheel Diameter
5 1/8 in
Lead Length
13 in
Dimension K
5 in
Blower Wheel Width
1 7/8 in
Dimension C
8 5/8 in
Dimension E
10 7/8 in
Outlet Width
3 3/4 in
Overall Depth
8 7/8 in
Dimension J
4 7/16 in
Outlet Height
3 7/16 in
Dimension F
3 5/16 in
Dimension Y
4 3/8 in
Dimension X
2 3/16 in
Dimension B
9 7/16 in
Dimension A
8 7/8 in
Dimension Z
2 1/2 in
Inlet Diameter
5 1/4 in
Housing Height
9 7/16 in
Shaft Diameter
8 mm
Flange Size
4 7/16 in W x 5 in H
Wheel Bore Diameter
8 mm
Housing Width
8 5/8 in
Manufacturer Warranty Length
1 yr Limited
Housing Depth
8 7/8 in
Wheel Diameter
5 1/8 in
Wheel Width
1 7/8 in

Details

CFM @ 0.100-In. SP
210
Drive Type
Direct Drive
Full Load Amps
0.37
Housing Material
Steel
Includes
Discharge Mounting Flange
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
Yes
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
230V AC
Blower Thermal Protection
Auto
Blower Conduit Box
Yes
CFM @ 0.500-In. SP
110
Housing Color
Black
Wheel Type
Forward-Curved
CFM @ 0.200-In. SP
195
Motor Enclosure
Open
Hz
50/60
Bearing Type
Ball
Item
OEM Blower
RPM
1700
CFM @ 0.300-In. SP
180
Max. Inlet Temp.
450 Degrees F
Housing Finish
Flat
Max. Ambient Temp.
104 Degrees F
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Mounting Position
All Position
Motor Insulation
Class B
CFM @ 0.000-In. SP
227
CFM @ 0.400-In. SP
162
Minimum Fan Speed
0 RPM
Application
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
Market
Commercial, Industrial, Residential
Motor Frame Designation
3.3" PSC motor
For Location
Indoor
Airflow @ 0.100 in SP
210 cfm
Includes Motor
Yes
Airflow @ 0.400 in SP
162 cfm
Hazardous Location Application
No
Maximum Ambient Temperature
104 Degrees F
Motor Horsepower
1/30 hp
OEM Replacement
Yes
Chemical Resistant
No
Motor IP Rating
IP20
Maximum Inlet Air Temperature
450 Degrees F
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Mount Type
All Position
Includes Mounting Hardware
No
Minimum Ambient Temperature
14 Degrees F
Maximum Static Pressure
1/2 in wc
High-Efficiency Motor
No
Corrosion Resistant
No
Motor Type
Permanent Split Capacitor
Number of Inlets
1
Sound Level
Not Rated
Housing Material Grade
SPCC
Motor Location
Out of Airstream
Current
0.37 A
Features
the Blower Housing Has Side Mounting Tabs and a 3-Sided Mounting Flange, The Durable Motor/Blower Design Features Ball Bearings, a Cast-Aluminum End Shield, a Rolled Steel Body, and a Steel Cooling Fan, the Externally Mounted Cooling Fan (Between the Motor and the Blower Wheel) Keeps the Motor Cooler for a Longer Service Life, the Permanent Split Capacitor Motor Operates More Efficiently Than a Comparably Sized Shaded Pole Motor
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Airflow @ 0.250 in SP
134 cfm
Spark Resistant Construction Type
Not Rated
Flange Type
Flanged
Brake Horsepower
1/30 hp
Outlet Shape
Rectangular
For Air Type
Clean Air
Motor Duty Class
Continuous
Nameplate Voltage
230V AC
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
AMCA Fan Class
Not Rated
Frequency
50/60 Hz
Mounting Orientation
Multiposition
Speed Controllable
No
Electrical Connection
Wire Leads
Housing Material Finish
Flat
Maximum Fan Speed
1,700 RPM
Resistance Properties
Corrosion Resistant
Housing Material Gauge
1 mm
Assembly
Assembled
Motor Insulation Class
B
Airflow @ 0.000 in SP
227 cfm
Rotation
CW
Compatible Speed Control
No
Thermal Overload Protection
Yes
For High-Static Pressure Applications
No
Wheel Material Finish
Galvanized
Motor Speed
1,700 RPM
Airflow @ 0.500 in SP
110 cfm
Wheel Material
Steel
Type
High Temperature
Voltage
230
Mounting
All Position

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 5 1/8 in, Airflow @ 0.000 in SP 227 cfm, Airflow @ 0.100 in SP 210 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 134 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 162 cfm, Airflow @ 0.500 in SP 110 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable, Airflow @ 1.250 in SP Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
