  9. Rectangular OEM Blower, 2380 RPM, 1 Phase, Direct Drive, Steel 1 Speed

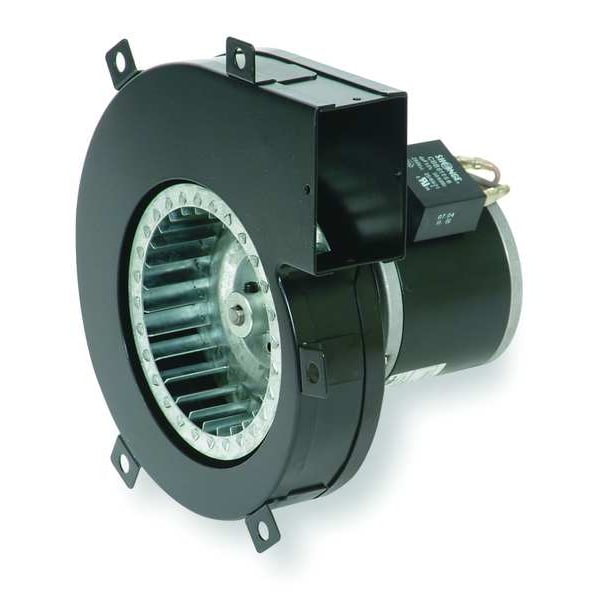

Dayton Rectangular OEM Blower, 2380 RPM, 1 Phase, Direct Drive, Steel 1 Speed 1TDV1 - main

Rectangular OEM Blower, 2380 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 1TDV1

  • Zoro # G2103403

product price: $131.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
99
Drive Type
Direct Drive
Full Load Amps
0.52
Housing Material
Steel
Inlet Dia.
4 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TDV1
Zoro #
G2103403
UPC #
190735147399
Country of Origin
China

Dimensions

Inlet Dia.
4 3/4 in
Overall Height
7 3/8 in
Overall Width
5 1/8 in
Blower Wheel Diameter
4 9/16 in
Dimension A
7 in
Dimension F
3 3/8 in
Outlet Height
2 1/2 in
Dimension E
10 7/8 in
Lead Length
13 in
Blower Wheel Width
1 7/8 in
Overall Depth
7 in
Dimension B
7 3/8 in
Outlet Width
1 11/16 in
Dimension C
5 1/8 in
Housing Width
5 1/8 in
Wheel Diameter
4 1/2 in
Housing Height
7 3/8 in
Shaft Diameter
8 mm
Wheel Bore Diameter
8 mm
Housing Depth
7 in
Wheel Width
1 7/8 in
Manufacturer Warranty Length
1 yr Limited
Inlet Diameter
4 3/4 in

Details

CFM @ 0.100-In. SP
99
Drive Type
Direct Drive
Full Load Amps
0.52
Housing Material
Steel
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
No
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
Yes
Motor Enclosure
Open
Replaces
4C723
Housing Color
Black
Hz
50/60
Housing Finish
Flat
CFM @ 0.600-In. SP
86
Bearing Type
Ball
Max. Inlet Temp.
450 Degrees F
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
CFM @ 0.800-In. SP
80
CFM @ 0.200-In. SP
96
CFM @ 0.000-In. SP
101
CFM @ 0.500-In. SP
90
Wheel Type
Forward-Curved
CFM @ 0.400-In. SP
92
Item
OEM Blower
Mounting Position
All Position
Max. Ambient Temp.
104 Degrees F
CFM @ 0.300-In. SP
94
RPM
2380
Motor Insulation
Class B
CFM @ 0.700-In. SP
83
Minimum Fan Speed
0 RPM
Motor Insulation Class
B
Flange Type
Non-Flanged
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Minimum Ambient Temperature
14 Degrees F
Airflow @ 0.100 in SP
99 cfm
Corrosion Resistant
No
High-Efficiency Motor
No
Features
the Blower Housing Has Side Mounting Tabs and a 3-Sided Mounting Flange, the Durable Motor/Blower Design Features Ball Bearings, a Cast-Aluminum End Shield, a Rolled Steel Body, and a Steel Cooling Fan, The Externally Mounted Cooling Fan (Between the Motor and the Blower Wheel) Keeps the Motor Cooler for a Longer Service Life, the Permanent Split Capacitor Motor Operates More Efficiently Than a Comparably Sized Shaded Pole Motor
Motor Horsepower
1/45 hp
Maximum Inlet Air Temperature
450 Degrees F
For Location
Indoor
Brake Horsepower
1/45 hp
Chemical Resistant
No
Spark Resistant Construction Type
Not Rated
Motor Speed
2,500 RPM
Motor Type
Permanent Split Capacitor
Wheel Material Finish
Galvanized
Airflow @ 0.500 in SP
90 cfm
Outlet Shape
Rectangular
For Air Type
Clean Air
Housing Material Finish
Flat
Assembly
Assembled
Housing Material Gauge
1 mm
Application
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
Includes Motor
Yes
Electrical Connection
Wire Leads
Mount Type
All Position
Market
Commercial, Industrial, Residential
Number of Inlets
1
Housing Material Grade
SPCC
Hazardous Location Application
No
Maximum Static Pressure
1 3/4 in wc
Mounting Orientation
Multiposition
Airflow @ 0.000 in SP
101 cfm
Includes Mounting Hardware
No
Motor IP Rating
IP20
Maximum Ambient Temperature
104 Degrees F
Replacement For
4C723
For High-Static Pressure Applications
No
Speed Controllable
No
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Resistance Properties
Corrosion Resistant
Compatible Speed Control
No
AMCA Fan Class
Not Rated
Airflow @ 0.250 in SP
96 cfm
Maximum Fan Speed
2,380 RPM
Motor Frame Designation
3.3" PSC motor
Sound Level
Not Rated
Frequency
50/60 Hz
Motor Duty Class
Continuous
Current
0.52 A
OEM Replacement
Yes
Rotation
CW
Motor Location
Out of Airstream
Airflow @ 0.400 in SP
92 cfm
Nameplate Voltage
115V AC
Thermal Overload Protection
Yes
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Wheel Material
Steel
Type
High Temperature
Mounting
All Position
Voltage
115

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 4 1/2 in, Airflow @ 0.000 in SP 101 cfm, Airflow @ 0.100 in SP 99 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 96 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 92 cfm, Airflow @ 0.500 in SP 90 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable, Airflow @ 1.250 in SP Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
