  9. Rectangular OEM Blower, 2450 RPM, 1 Phase, Direct Drive, Steel

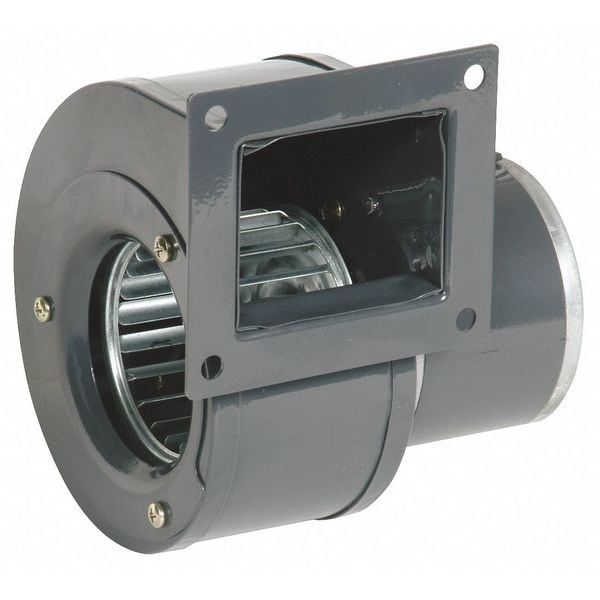

Dayton Rectangular OEM Blower, 2450 RPM, 1 Phase, Direct Drive, Steel 1TDR6 - main

Rectangular OEM Blower, 2450 RPM, 1 Phase, Direct Drive, Steel

  • Mfr # 1TDR6

  • Zoro # G1955502

product price: $102.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
144
Drive Type
Direct Drive
Full Load Amps
0.75
Housing Material
Steel
Includes
Discharge Mounting Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TDR6
Zoro #
G1955502
UPC #
190735147177
Country of Origin
China

Dimensions

Inlet Dia.
3 3/4 in
Overall Height
7 5/8 in
Overall Width
6 in
Blower Wheel Diameter
4 3/16 in
Dimension E
7 5/8 in
Dimension F
3 5/16 in
Dimension D
3 in
Dimension L
3 3/4 in
Dimension C
6 in
Lead Length
13 in
Outlet Width
2 15/16 in
Dimension J
4 7/16 in
Dimension B
8 1/4 in
Blower Wheel Width
1 7/8 in
Dimension K
4 1/16 in
Dimension M
3 3/8 in
Dimension A
7 1/8 in
Outlet Height
2 5/8 in
Overall Depth
7 1/8 in
Wheel Width
1 7/8 in
Inlet Diameter
3 3/4 in
Wheel Diameter
4 1/8 in
Housing Depth
7 1/8 in
Housing Height
7 5/8 in
Flange Size
4 7/16 in W x 4 1/16 in H
Manufacturer Warranty Length
1 yr Limited

Details

CFM @ 0.100-In. SP
144
Drive Type
Direct Drive
Full Load Amps
0.75
Housing Material
Steel
Includes
Discharge Mounting Flange
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
Yes
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
Yes
CFM @ 1.000-In. SP
86 cfm
Housing Color
Gray
CFM @ 0.200-In. SP
136
Max. Ambient Temp.
104 Degrees F
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Wheel Type
Forward-Curved
CFM @ 1.200-In. SP
44 cfm
CFM @ 0.800-In. SP
106
Replaces
4C006
Hz
50/60
CFM @ 0.000-In. SP
148
Mounting Position
All Position
Max. Inlet Temp.
104 Degrees F
Housing Finish
Enamel
RPM
2450
Bearing Type
Ball
Motor Enclosure
Open
CFM @ 0.400-In. SP
130
CFM @ 0.300-In. SP
134
CFM @ 0.900-In. SP
95 cfm
CFM @ 0.500-In. SP
124
Motor Insulation
Class B
Item
OEM Blower
CFM @ 0.700-In. SP
114
Motor Location
Out of Airstream
Resistance Properties
Corrosion Resistant
Motor Frame Designation
3.3" PSC Motor
Housing Material Grade
SPCC
Sound Level
Not Rated
Application
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
Motor IP Rating
IP20
Minimum Ambient Temperature
14 Degrees F
Compatible Speed Control
No
Electrical Connection
Wire Leads
For Air Type
Clean Air
Maximum Ambient Temperature
104 Degrees F
Maximum Static Pressure
1 1/4 in wc
Includes Motor
Yes
Assembly
Assembled
Corrosion Resistant
No
Replacement For
4C006
AMCA Fan Class
Not Rated
Spark Resistant Construction Type
Not Rated
Airflow @ 0.400 in SP
130 cfm
Motor Type
Permanent Split Capacitor
Motor Horsepower
1/40 hp
Wheel Material Finish
Galvanized
Flange Type
Flanged
Speed Controllable
No
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Motor Speed
2,480 RPM
Chemical Resistant
No
Hazardous Location Application
No
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Maximum Inlet Air Temperature
104 Degrees F
Brake Horsepower
1/40 hp
Number of Inlets
1
OEM Replacement
Yes
Frequency
50/60 Hz
Airflow @ 1.000 in SP
86 cfm
For Location
Indoor
Nameplate Voltage
115V AC
Airflow @ 0.000 in SP
148 cfm
Current
0.75 A
Maximum Fan Speed
2,450 RPM
Motor Duty Class
Continuous
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Features
Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Double Blower Provides Smooth and Quiet Operation
High-Efficiency Motor
No
Airflow @ 0.500 in SP
124 cfm
Mount Type
All Position
Housing Material Finish
Enamel
Includes Mounting Hardware
No
Motor Insulation Class
B
Outlet Shape
Rectangular
Market
Commercial, Industrial, Residential
Thermal Overload Protection
Yes
Airflow @ 0.250 in SP
136 cfm
Rotation
CW
Mounting Orientation
Multiposition
Airflow @ 0.100 in SP
144 cfm
For High-Static Pressure Applications
No
Wheel Material
Steel
Mounting
All Position
Voltage
115

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 4 1/8 in, Airflow @ 0.000 in SP 148 cfm, Airflow @ 0.100 in SP 144 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 136 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 130 cfm, Airflow @ 0.500 in SP 124 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP 86 cfm, Airflow @ 1.250 in SP Not Applicable
