  9. Rectangular OEM Blower, 2880 RPM, 1 Phase, Direct Drive, Steel

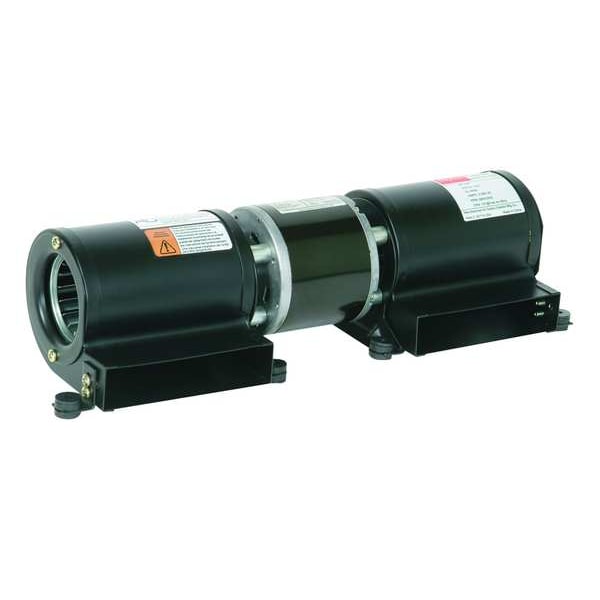

Dayton Rectangular OEM Blower, 2880 RPM, 1 Phase, Direct Drive, Steel 3FRF8 - main

Rectangular OEM Blower, 2880 RPM, 1 Phase, Direct Drive, Steel

  • Mfr # 3FRF8

  • Zoro # G0841321

product price: $152.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
212
Drive Type
Direct Drive
Full Load Amps
0.28
Housing Material
Steel
Includes
6 Rubber Isolator
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3FRF8
Zoro #
G0841321
UPC #
190735285480
Country of Origin
China

Dimensions

Inlet Dia.
2 9/16 in
Overall Height
4 3/4 in
Overall Width
14 3/4 in
Blower Wheel Diameter
2 15/16 in
Outlet Width
4 5/8 in
Dimension J
5/16 in
Dimension B
4 13/16 in
Dimension H
14 3/4 in
Dimension F
4 3/4 in
Overall Depth
3 5/8 in
Dimension D
1 3/4 in
Dimension G
3 3/8 in
Dimension A
3 5/8 in
Lead Length
17 in
Dimension E
8 15/16 in
Dimension C
4 7/16 in
Blower Wheel Width
3 3/4 in
Outlet Height
1 5/8 in
Inlet Diameter
2 1/2 in
Housing Height
4.8 in
Housing Width
3.6 in
Wheel Diameter
2 7/8 in
Wheel Width
3.7 in
Housing Depth
4.4 in

Details

CFM @ 0.100-In. SP
212
Drive Type
Direct Drive
Full Load Amps
0.28
Housing Material
Steel
Includes
6 Rubber Isolator
Phase
1
Blower Item
Low Profile Blower
Blower Outlet Shape
Rectangular
With Flange
No
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
230V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Motor Insulation
Class B
Max. Ambient Temp.
104 Degrees F
CFM @ 0.200-In. SP
198
Item
OEM Blower
Hz
50/60
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Max. Inlet Temp.
104 Degrees F
Wheel Type
Forward-Curved
Bearing Type
Ball
Motor Enclosure
Open
CFM @ 0.000-In. SP
262
Mounting Position
All Position
Housing Color
Black
RPM
2880
Housing Finish
Flat
Airflow @ 0.100 in SP
212 cfm
Outlet Shape
Rectangular
Maximum Static Pressure
3/4 in wc
Motor Horsepower
1/40 hp
Motor Insulation Class
B
Nameplate Voltage
230V AC
Current
0.28 A
Frequency
50/60 Hz
Flange Type
Non-Flanged
Wheel Material
Steel
Number of Inlets
2
Motor Duty Class
Continuous
Standards
CE Compliant, UL/cUL Listed, RoHS Compliant
Assembly
Assembled
Mounting Orientation
Multiposition
Motor Type
Permanent Split Capacitor
Airflow @ 0.200-In. SP
198 cfm
Housing Construction
Twin Scroll
Thermal Overload Protection
Yes
Blower Type
Low-Profile Blower
Maximum Ambient Temperature
104 Degrees F
Features
6 Rubber Isolators on Mounting Holes Reduce Vibration and Noise, Ball Bearings and Cast-Aluminum End Shields Connect Blower to Heavy-Duty, Permanent Split-Capacitor Dayton Motor, Class B Automatic Thermal Protection Blowers Provide Economical Air Delivery, Compact Design, Double Inlet Maximizes Airflow Efficiency, Flat Black Finish, Forward Curve Centrifugal Blower Wheels, Mounted in Twin Scroll Housings, Provide Increased Airflow at Higher Pressures
Maximum Inlet Air Temperature
104 Degrees F
Motor Speed
2,880 RPM
Application
Corn Stoves, Electronic Equipment, Exhaust or Ventilate Cabinets, Fireplace Inserts, Office Machines, Pellet Stoves
For Ventilation Type
Exhaust
Housing Material Finish
Flat
Airflow @ 0.000 in SP
262 cfm

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Assembly Assembled, Wheel Diameter 2 7/8 in, Airflow @ 0.000 in SP 262 cfm, Airflow @ 0.100 in SP 212 cfm, Airflow @ 0.200-In. SP 198 cfm, Airflow @ 0.250 in SP Not Applicable, Maximum Static Pressure 3/4 in wc, Maximum Inlet Air Temperature 104 Degrees F, Bearing Type Ball, Wheel Material Steel, Housing Material Steel, Wheel Width 3.7 in, Number of Inlets 2, Inlet Diameter 2 1/2 in, Outlet Shape Rectangular, Outlet Height 1 5/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
