  9. Rectangular OEM Blower, 3080 RPM, 1 Phase, Direct Drive, Steel 1 Speed

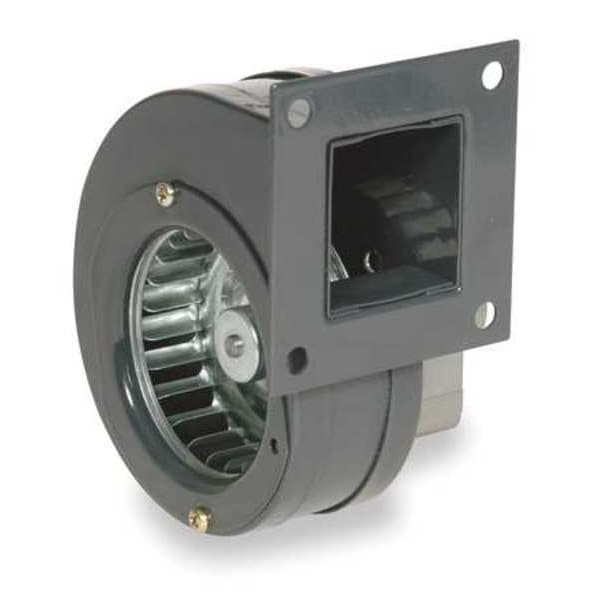

Dayton Rectangular OEM Blower, 3080 RPM, 1 Phase, Direct Drive, Steel 1 Speed 1TDN4 - main

Rectangular OEM Blower, 3080 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 1TDN4

  • Zoro # G0744694

product price: $57.55
/ea

Key Features

CFM @ 0.100-In. SP
46
Drive Type
Direct Drive
Full Load Amps
0.50
Housing Material
Steel
Includes
Discharge Mounting Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TDN4
Zoro #
G0744694
UPC #
190735146972
Country of Origin
Taiwan, Province of China

Dimensions

Inlet Dia.
2 9/16 in
Overall Height
4 1/2 in
Overall Width
4 3/16 in
Blower Wheel Diameter
2 15/16 in
Dimension A
4 1/2 in
Overall Depth
4 1/2 in
Dimension J
3 7/16 in
Dimension M
2 7/16 in
Dimension D
2 1/8 in
Dimension L
2 13/16 in
Dimension B
5 5/16 in
Outlet Height
1 5/8 in
Dimension K
3 1/8 in
Outlet Width
2 in
Lead Length
13 in
Dimension C
4 3/16 in
Dimension E
4 11/16 in
Dimension F
2 1/2 in
Blower Wheel Width
1 1/2 in
Manufacturer Warranty Length
1 yr Limited
Inlet Diameter
2 1/2 in
Wheel Width
1 1/2 in
Wheel Diameter
2 7/8 in
Housing Width
4 3/16 in
Housing Height
4 1/2 in
Wheel Bore Diameter
6 mm
Shaft Diameter
6 mm
Flange Size
3 7/16 in W x 3 1/8 in H
Housing Depth
4 1/2 in

Details

CFM @ 0.100-In. SP
46
Drive Type
Direct Drive
Full Load Amps
0.50
Housing Material
Steel
Includes
Discharge Mounting Flange
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
Yes
Blower Motor Type
Shaded Pole
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Motor Enclosure
Open
Hz
60
Mounting Position
All Position
Replaces
4C761
Item
OEM Blower
Housing Color
Gray
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
CFM @ 0.200-In. SP
44
CFM @ 0.300-In. SP
39
CFM @ 0.400-In. SP
30
CFM @ 0.500-In. SP
13
Motor Insulation
Class B
Bearing Type
Ball
Housing Finish
Enamel
RPM
3080
CFM @ 0.000-In. SP
49
Max. Inlet Temp.
104 Degrees F
Max. Ambient Temp.
104 Degrees F
Wheel Type
Forward-Curved
OEM Replacement
Yes
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Resistance Properties
Corrosion Resistant
Mount Type
All Position
Minimum Ambient Temperature
14 Degrees F
Maximum Fan Speed
3,080 RPM
Nameplate Voltage
115V AC
Application
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
Motor Horsepower
1/130 hp
Chemical Resistant
No
Outlet Shape
Rectangular
High-Efficiency Motor
No
Maximum Ambient Temperature
104 Degrees F
Spark Resistant Construction Type
Not Rated
Corrosion Resistant
No
Motor Type
Shaded Pole
Motor Speed
3,080 RPM
Replacement For
4C761
Includes Motor
Yes
Airflow @ 0.250 in SP
41 cfm
For Air Type
Clean Air
Number of Inlets
1
Housing Material Grade
SPCC
Features
Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, The Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation
Thermal Overload Protection
Yes
Frequency
60 Hz
Speed Controllable
No
Motor Location
Out of Airstream
Airflow @ 0.500 in SP
13 cfm
Flange Type
Flanged
Airflow @ 0.400 in SP
30 cfm
Motor Insulation Class
B
Motor Frame Designation
C-frame motor
Wheel Material Finish
Galvanized
Housing Material Gauge
0.8 mm
Airflow @ 0.000 in SP
49 cfm
Motor IP Rating
IP20
Includes Mounting Hardware
No
Market
Commercial, Industrial, Residential
Compatible Speed Control
No
Housing Material Finish
Enamel
Current
0.5 A
For High-Static Pressure Applications
No
Brake Horsepower
1/130 hp
Mounting Orientation
Multiposition
Maximum Inlet Air Temperature
104 Degrees F
Hazardous Location Application
No
Sound Level
Not Rated
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Airflow @ 0.100 in SP
46 cfm
Rotation
CW
Maximum Static Pressure
5/8 in wc
AMCA Fan Class
Not Rated
Assembly
Assembled
Motor Duty Class
Continuous
Electrical Connection
Wire Leads
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Minimum Fan Speed
0 RPM
For Location
Indoor
Wheel Material
Steel
Mounting
All Position
Voltage
115

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 2 7/8 in, Airflow @ 0.000 in SP 49 cfm, Airflow @ 0.100 in SP 46 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 41 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 30 cfm, Airflow @ 0.500 in SP 13 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable, Airflow @ 1.250 in SP Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
