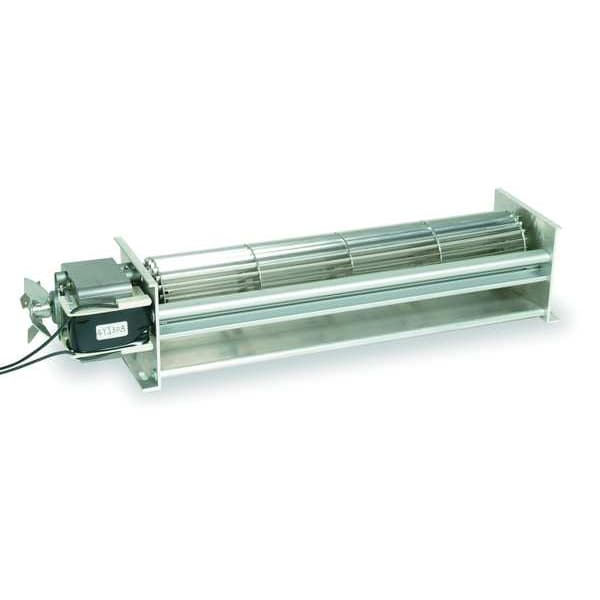

Rectangular OEM Blower, 3130 RPM, 1 Phase, Direct Drive, C45 Carbon Steel

  • Mfr # 1TDU3
  • Zoro # G0870003
product price:
$
79.15
/ea

Key Features

CFM @ 0.100-In. SP
64
Drive Type
Direct Drive
Full Load Amps
0.5 A
Housing Material
C45 Carbon Steel
Overall Height
3 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1TDU3
Zoro #
G0870003
UPC #
190735147320
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
3 1/2 in
Overall Width
7 7/8 in
Blower Wheel Diameter
2 7/16 in
Overall Depth
4 1/8 in
Outlet Height
1 in
Dimension E
10 7/8 in
Blower Wheel Width
4 1/2 in
Dimension B
3 1/2 in
Dimension A
4 3/16 in
Lead Length
13 in
Dimension D
6 5/16 in
Dimension C
7 15/16 in
Dimension W
5 3/4 in
Outlet Width
5 1/8 in
Housing Width
4.1 in
Wheel Diameter
2 3/8 in
Housing Depth
7.9 in
Wheel Width
4.5 in
Housing Height
3.5 in
Fits Chest Size
Economical Air Delivery for General Heating, Cooling, Ventilating, or Component Cooling, Featuring Continuous-Duty Operation and Automatic Thermal Protection, Permanently Lubricated Sleeve Bearings on the Motor and Blower Housing Significantly Reduce Motor Hum Transmission into Equipment, the Extruded Aluminum, 1-Pc. Housing Keeps the Blower Wheel and Motor Properly Aligned, Reducing Vibration, the Heavy-Duty, Shaded-Pole Motor Features an Oversized Stack to Enhance Cooling and Product Life, and a Durable Metal Cooling-Fan Blade

Details

CFM @ 0.100-In. SP
64
Drive Type
Direct Drive
Full Load Amps
0.5 A
Housing Material
C45 Carbon Steel
Phase
1
Blower Item
Transflow Blower
Blower Outlet Shape
Rectangular
With Flange
No
Blower Motor Type
Shaded Pole
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Motor Enclosure
Open Dripproof
Replaces
4C743
RPM
3130
Max. Inlet Temp.
104 Degrees F
Mounting Position
All Position
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Item
OEM Blower
Hz
60 Hz
CFM @ 0.000-In. SP
77
Motor Insulation
Class B
Max. Ambient Temp.
104 Degrees F
Bearing Type
Sleeve
CFM @ 0.200-In. SP
40
Wheel Type
Forward-Curved
Flange Type
Non-Flanged
Motor Duty Class
Continuous
Airflow @ 0.200-In. SP
40 cfm
Motor Type
Shaded Pole
Wheel Material
C45 Carbon Steel
Standards
CE Compliant, UL/cUL Listed, RoHS Compliant
Airflow @ 0.250 in SP
14.6 cfm
Thermal Overload Protection
Yes
OEM Replacement
4C743
Motor Speed
3,130 RPM
Airflow @ 0.100 in SP
64 cfm
Frequency
60 Hz
Maximum Inlet Air Temperature
104 Degrees F
Mounting Orientation
Multiposition
Current
0.5 A
Housing Construction
One Piece
Outlet Shape
Rectangular
Maximum Ambient Temperature
104 Degrees F
Features
Economical Air Delivery for General Heating, Cooling, Ventilating, or Component Cooling, Featuring Continuous-Duty Operation and Automatic Thermal Protection, Permanently Lubricated Sleeve Bearings on the Motor and Blower Housing Significantly Reduce Motor Hum Transmission into Equipment, the Extruded Aluminum, 1-Pc. Housing Keeps the Blower Wheel and Motor Properly Aligned, Reducing Vibration, the Heavy-Duty, Shaded-Pole Motor Features an Oversized Stack to Enhance Cooling and Product Life, and a Durable Metal Cooling-Fan Blade
For Ventilation Type
Exhaust
Airflow @ 0.000 in SP
77 cfm
Motor Insulation Class
B
Application
Corn Stoves, Electronic Equipment, Exhaust or Ventilate Cabinets, Fireplace Inserts, Office Machines, Pellet Stoves
Blower Type
Transflow Blower
Number of Inlets
1
Maximum Static Pressure
1/4 in wc
Nameplate Voltage
115V AC
Assembly
Assembled
Motor Horsepower
1/100 hp

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Assembly Assembled, Wheel Diameter 2 3/8 in, Airflow @ 0.000 in SP 77 cfm, Airflow @ 0.100 in SP 64 cfm, Airflow @ 0.200-In. SP 40 cfm, Airflow @ 0.250 in SP 14.6 cfm, Maximum Static Pressure 1/4 in wc, Maximum Inlet Air Temperature 104 Degrees F, Bearing Type Sleeve, Wheel Material C45 Carbon Steel, Housing Material C45 Carbon Steel, Wheel Width 4.5 in, Number of Inlets 1, Outlet Shape Rectangular, Outlet Height 1 in
