  9. Rectangular OEM Blower, 3461 RPM, 1 Phase, Direct Drive, Steel 1 Speed

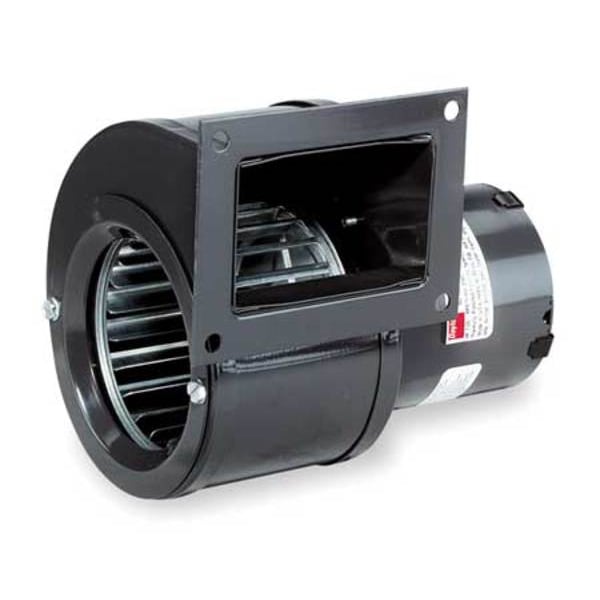

Dayton Rectangular OEM Blower, 3461 RPM, 1 Phase, Direct Drive, Steel 1 Speed 70213469X - main

Rectangular OEM Blower, 3461 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 70213469X

  • Zoro # G1051662

product price: $162.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
141
Drive Type
Direct Drive
Full Load Amps
1.5/1.37
Housing Material
Steel
Inlet Dia.
3 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70213469X
Zoro #
G1051662
UPC #
190735362518
Country of Origin
Mexico

Dimensions

Inlet Dia.
3 1/8 in
Overall Height
5 3/4 in
Overall Width
7 1/2 in
Blower Wheel Diameter
3 13/16 in
Lead Length
6 in
Overall Depth
5 1/4 in
Dimension D
3 5/16 in
Blower Wheel Width
2 1/2 in
Dimension A
5 5/16 in
Outlet Width
3 1/4 in
Dimension K
3 1/2 in
Outlet Height
2 1/16 in
Dimension M
2 7/8 in
Dimension B
5 3/4 in
Dimension C
7 1/2 in
Dimension L
3 31/32 in
Dimension E
6 1/2 in
Dimension F
3-5/16"
Dimension J
4 19/32 in
Wheel Width
2 1/2 in
Flange Size
4 19/32 in W x 3 1/2 in H
Inlet Diameter
3 1/8 in
Manufacturer Warranty Length
1 yr Limited
Wheel Diameter
3 3/4 in

Details

CFM @ 0.100-In. SP
141
Drive Type
Direct Drive
Full Load Amps
1.5/1.37
Housing Material
Steel
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
Yes
Blower Motor Type
Shaded Pole
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
Yes
CFM @ 0.300-In. SP
129
Max. Inlet Temp.
104 Degrees F
Replaces
4C446
Wheel Type
Forward-Curved
CFM @ 0.400-In. SP
121
Item
OEM Blower
Agency Compliance
CSA Certified, UL Component Recognized
CFM @ 0.200-In. SP
135
Motor Enclosure
Open Dripproof
Bearing Type
Sleeve
RPM
3461
Not For Use With
Not Intended For Use As Inline Blowers For Wood Burners
Housing Color
Gray
CFM @ 0.500-In. SP
114
Housing Finish
Baked Enamel
Motor Insulation
Class B
Mounting Position
All Position
CFM @ 0.150-In. SP
138 cfm
Max. Ambient Temp.
104 Degrees F
CFM @ 0.000-In. SP
148
Hz
50/60
Current
1.5/1.37 A
Thermal Overload Protection
Yes
Mount Type
All Position
Number of Discharge Positions
4
Mounting Orientation
Multiposition
Standards
CSA Certified, UL Listed
Includes Drive Package
Yes
Nameplate Voltage
115V AC
Electrical Connection
Wire Leads
Motor Horsepower
1/25 hp
Motor Type
Shaded Pole
Motor Speed
3,160 RPM
Discharge Position
All
Airflow @ 0.250 in SP
137 cfm
Maximum Ambient Temperature
104 Degrees F
Rotation
CW
Housing Material Finish
Baked Enamel
Airflow @ 0.400 in SP
121 cfm
Replacement For
4C446
Airflow @ 0.000 in SP
148 cfm
Outlet Shape
Rectangular
For Air Type
Clean Air
Maximum Static Pressure
3/4 in wc
Number of Inlets
1
Assembly
Assembled
Includes Motor
Yes
Flange Type
Flanged
Frequency
50/60 Hz
Minimum Ambient Temperature
40 Degrees C
Maximum Fan Speed
3,461 RPM
Motor Insulation Class
B
Maximum Inlet Air Temperature
104 Degrees F
Airflow @ 0.500 in SP
114 cfm
Wheel Material
Steel
Airflow @ 0.100 in SP
141 cfm
Minimum Fan Speed
3,100 RPM
OEM Replacement
No
Mounting
All Position
Voltage
115

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 3 3/4 in, Airflow @ 0.000 in SP 148 cfm, Airflow @ 0.100 in SP 141 cfm, Airflow @ 0.250 in SP 137 cfm, Airflow @ 0.400 in SP 121 cfm, Airflow @ 0.500 in SP 114 cfm
