Compare

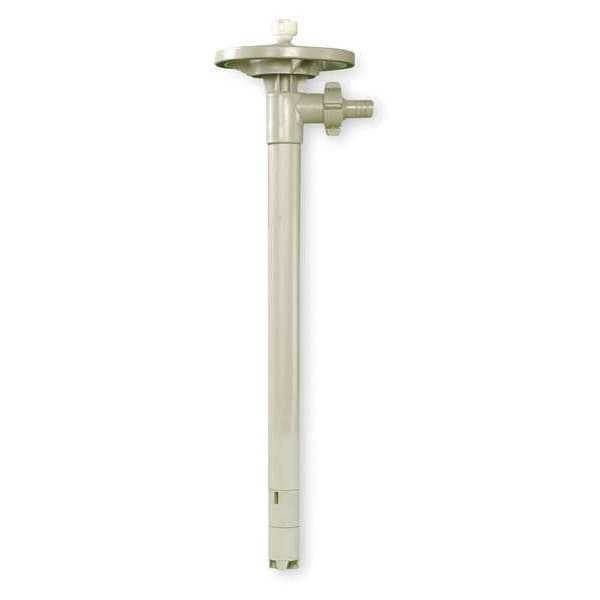

Repl Drum Pump Tube, Polypropylene

Mfr # 1DLL2
Zoro # G2960806

$373.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Max. Pressure 16 psi
For Use With Liquid Transfer
Adapter Material Polypropylene
Max. Viscosity 1500 CPS
Self-Priming Yes

See all product information

Brand Dayton
MFR # 1DLL2
Zoro # G2960806
UPC #
190735135273
Country of Origin United States
Category Fuel Transfer Accessories

Dimensions

Inlet Size	1 5/8 in
Height	39"
Suction Tube Length	39 in
Overall Length	43 in
Outlet Size	1 in
For Container Size	55 gal

Details

Item	Drum Pump Tube
Max. Pressure	16 psi
For Use With	Liquid Transfer
Adapter Material	Polypropylene
Max. Viscosity	1500 CPS
Self-Priming	Yes
GPM	32
Wetted Materials	Carbon Graphite, Hasteloy C-276, Polypropylene, PTFE
Max. Head	36 ft
Max. Liquid Temp.	130 Degrees F
Includes	Hose Barb
Seal Material	Sealless
Not Recommended Chemicals	Acetic Acid (Glacial), Chromic Acid 30%, Formic Acid, Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Sulfuric Acid (75% - 100%), Acetone, Methyl Ethyl Ketone (MEK), Ethyl (Ethanol), Isopropyl (Isopropanol), Methyl (Methanol), Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent (Mineral Spirits), Ethyl Acetate, Formaldehyde 40%, Formaldehyde, Ammonium Hydroxide, Sodium Hypochlorite/Bleach (to 20%), Lacquer Thinners, Toluene, Xylene, Methyl Chloride, Trichlorethylene (50%), DEF
Suction Tube Material	Polypropylene
Discharge Tube Outlet OD	1 1/2 in
Max. Flow Rate	35 gpm
Diesel Exhaust Fluid Compatible	No
Discharge Connection Type	Hose Barb
Suction Tube OD	1 in
Discharge Tube Outlet ID	1 in
For Container Type	Drum
For Media Type	Acetic Acid, Chromic Acid, Citric Acid, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sulfuric Acid, Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate, Sodium Hydroxide, Potassium Hydroxide (50%), Water, Sodium Bisulfate, Sodium Bisulfite, Ammonia
Suction Tube ID	1 1/3 in
Max. Fluid Temp.	130 Degrees F
Runs Dry	Yes
Food Grade	No
Compatible Chemicals	Acetic Acid 20%, Acetic Acid 80%, Chromic Acid 50%, Citric Acid 50%, Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (20%), Nitric Acid (10% Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (10% - 75%), Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate (10%), Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Potassium Hydroxide (50%), Fresh Water, Salt Water, Deionized Water, Sodium Bisulfate, Sodium Bisulfite, Ammonia (Liquids)
Max. Head Pressure	16 psi
Gear Lube	NT
Grease	NT

Description

Drum Pump Tube, Suction Tube Length 39 in, Pump Package Type Drum Pump Tube, Suction Tube Material Polypropylene, Suction Tube ID 1 1/3 in, Suction Tube OD 1 in, Discharge Tube Outlet ID 1 in, Discharge Tube Outlet OD 1 1/2 in, Discharge Connection Type Hose Barb, Overall Length 43 in, For Container Size 55 gal, For Container Type Drum, Max. Flow Rate 35 gpm, Max. Viscosity 1500 CPS, Max. Fluid Temp. 130 Degrees F, Max. Head 36 ft, Max. Head Pressure 16 psi, Self-Priming Yes
