Dayton Round OEM Blower, 3030 RPM, 1 Phase, Direct Drive, Steel 1 Speed 70213466X - main
Shop DAYTON

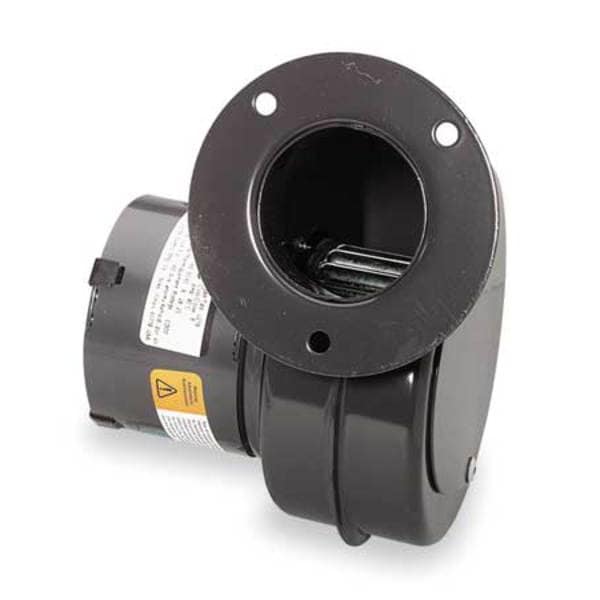

Round OEM Blower, 3030 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 70213466X

  • Zoro # G1533427

product price:  $136.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
57
Drive Type
Direct Drive
Full Load Amps
0.49/0.42
Housing Material
Steel
Inlet Dia.
2 3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70213466X
Zoro #
G1533427
UPC #
190735362471
Country of Origin
Mexico

Dimensions

Inlet Dia.
2 3/8 in
Overall Height
5 3/4 in
Overall Width
5 3/16 in
Blower Wheel Diameter
3 in
Overall Depth
6 1/4 in
Blower Wheel Width
1 7/8 in
Dimension C
5 7/32 in
Lead Length
6 in
Dimension A
6 5/16 in
Dimension D
2 7/32 in
Outlet Width
2 1/4 in
Dimension L
2 3/8 in
Dimension F
3 5/16 in
Dimension E
7 in
Dimension M
2 13/16 in
Outlet Height
2 1/4 in
Dimension B
5 13/16 in
Dimension J
4 in
Manufacturer Warranty Length
1 yr Limited
Wheel Diameter
3 in
Flange Size
4 in Dia.
Outlet Diameter
2 1/8 in
Inlet Diameter
2 3/8 in
Wheel Width
1 7/8 in

Details

CFM @ 0.100-In. SP
57
Drive Type
Direct Drive
Full Load Amps
0.49/0.42
Housing Material
Steel
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
Yes
Blower Motor Type
Shaded Pole
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
Yes
CFM @ 0.500-In. SP
23
Housing Color
Gray
Housing Finish
Baked Enamel
Item
OEM Blower
CFM @ 0.200-In. SP
54
CFM @ 0.300-In. SP
49
Motor Insulation
Class B
RPM
3030
Agency Compliance
CSA Certified, UL Component Recognized
Max. Ambient Temp.
104 Degrees F
Replaces
4C440
CFM @ 0.400-In. SP
39
Max. Inlet Temp.
104 Degrees F
Wheel Type
Forward-Curved
Motor Enclosure
Open Dripproof
Mounting Position
All Position
Bearing Type
Sleeve
CFM @ 0.150-In. SP
55 cfm
Hz
50/60
Not For Use With
Not Intended For Use As Inline Blowers For Wood Burners
CFM @ 0.000-In. SP
60
Mount Type
All Position
Electrical Connection
Wire Leads
Airflow @ 0.100 in SP
57 cfm
Mounting Orientation
Multiposition
Housing Material Finish
Baked Enamel
Wheel Material
Steel
Motor Type
Shaded Pole
Motor Speed
3,030 RPM
Replacement For
4C440
Includes Drive Package
Yes
Airflow @ 0.400 in SP
39 cfm
Flange Type
Flanged
Discharge Position
All
Maximum Fan Speed
3,030 RPM
Standards
CSA Certified, UL Listed
Rotation
CCW
Motor Horsepower
1/125 hp
Minimum Ambient Temperature
40 Degrees C
Current
0.49/0.42 A
Thermal Overload Protection
Yes
For Air Type
Clean Air
Outlet Shape
Round
Maximum Inlet Air Temperature
104 Degrees F
Motor Insulation Class
B
Assembly
Assembled
Number of Discharge Positions
4
Maximum Ambient Temperature
104 Degrees F
Airflow @ 0.000 in SP
60 cfm
Airflow @ 0.500 in SP
23 cfm
Includes Motor
Yes
Frequency
50/60 Hz
Number of Inlets
1
Nameplate Voltage
115V AC
OEM Replacement
No
Mounting
All Position
Voltage
115

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 3 in, Airflow @ 0.000 in SP 60 cfm, Airflow @ 0.100 in SP 57 cfm, Airflow @ 0.400 in SP 39 cfm, Airflow @ 0.500 in SP 23 cfm
