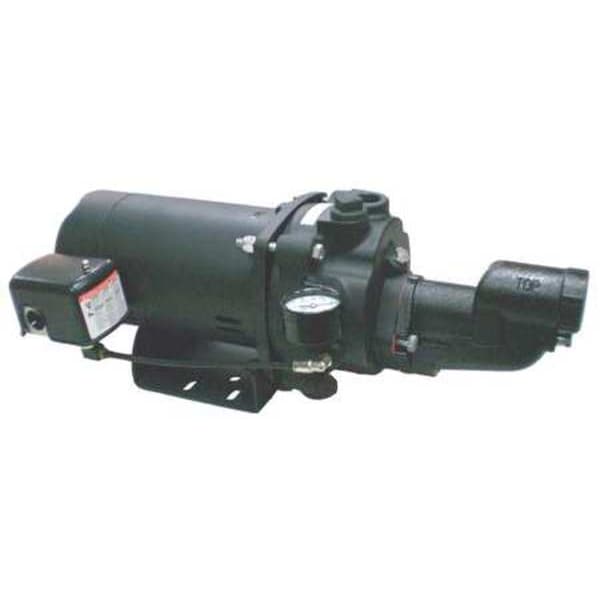

Dayton Shallow Well Jet Pump, 1-1/2 HP, 115/230V 5UXK2 - main

Shallow Well Jet Pump, 1-1/2 HP, 115/230V

  • Mfr # 5UXK2

  • Zoro # G1421901

product price: $863.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2 hp
Pump Material
Cast Iron
Inlet
1-1/4 in NPT
Amps
21.5/11 A
Includes
1 x 3/4 In. Adaptor, Nozzle, Venturi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5UXK2
Zoro #
G1421901
UPC #
190735353417
Country of Origin
China

Dimensions

Length (In.)
22.875
Height (In.)
8.6875
Width (In.)
9.8125
Overall Height
8 11/16
Inlet Dia.
1 1/4 in
Overall Width
9 13/16
Overall Length
22 7/8
Manufacturer Warranty Length
1 yr
Inlet Diameter
1 1/4 in
Discharge Diameter
1 in

Details

Item
Shallow Well Jet Pump
HP
1 1/2 hp
Pump Material
Cast Iron
Inlet
1-1/4 in NPT
Amps
21.5/11 A
Includes
1 x 3/4 In. Adaptor, Nozzle, Venturi
Flow Rate @ 10 Ft. Lift @ 40 PSI
23.6 gpm
Ejector Included
Yes
Discharge
1 in NPT
GPM of Water @ 5 Ft @ 30, 50 PSI
26.9/26.6
Compliance
CSA-US
NPT Inlet (In.)
1-1/4
Suction Lift (Ft.)
25
Seal Type
Mechanical
Number of Stages
1
GPM of Water @ 20 Ft @ 30, 50 PSI
17.3/16.9
GPM of Water @ 10 Ft @ 30, 50 PSI
23.8/23.5
Motor Type
Capacitor Start
GPM of Water @ 25 Ft @ 30, 50 PSI
13.5/13.5
Application
Transfer
Max. Inlet Pressure (PSI)
123
Max. Operating Temp. (F)
90
Pressure Switch Setting
30 to 50 psi
Motor Enclosure
ODP
GPM of Water @ 15 Ft @ 30, 50 PSI
20.8/20.6
Max. Case Pressure (PSI)
123
Voltage
115/230
Outlet
1" NPT
NPT Outlet
1
Shut Off (PSI)
64
Max. Operating Temp.
90
Max. Inlet Pressure
123 psi
Max. Suction Lift
25 ft
Inlet Standard
NPT
Rated Voltage
115/230V AC
Shut Off Pressure
64 psi
Max. Case Pressure
123 psi
Flow Rate @ 10 Ft. Lift @ 30 PSI
23.8 gpm
Flow Rate @ 10 Ft. Lift @ 50 PSI
23.5 gpm
Discharge Standard
NPT
Standards
CSA C US
Shut Off Pressure - Maximum
64 psi
Flow Rate - Maximum
27.4 gpm
For Media Type
Clear Water
Phase
Single
Full Load Current
21.5/11 A
Installation
Floor Standing
Horsepower
1 1/2 hp
Inlet Pressure - Maximum
123 psi
Pressure Switch Setting - Maximum
50 psi
Priming
Self-Priming
Series
JSI
Media Temperature - Minimum
5 Degrees C
Pressure Switch Setting - Minimum
30 psi
Media Temperature - Maximum
90 Degrees F
Inlet Gender
Female
Includes Ejector
Ejector Included
Product Type
Shallow Well Jet Pump
Power Source
Corded Electric
Case Pressure - Maximum
123 psi
Motor Enclosure Design
Open Drip Proof
Frequency
60 Hz
Discharge Gender
Female
Pump Technology
Centrifugal
Suction Lift - Maximum
25 ft

Description

Shallow Well Jet Pump, HP 1 1/2 hp, Rated Voltage 115/230V AC, Amps 21.5/11 A, Ejector Included Yes, Flow Rate @ 10 Ft. Lift @ 30 PSI 23.8 gpm, Flow Rate @ 10 Ft. Lift @ 40 PSI 23.6 gpm, Flow Rate @ 10 Ft. Lift @ 50 PSI 23.5 gpm, Max. Suction Lift 25 ft, Inlet 1-1/4 in NPT, Discharge 1 in NPT, Max. Case Pressure 123 psi, Max. Inlet Pressure 123 psi, Max. Operating Temp. 90, Shut Off Pressure 64 psi, Overall Length 22 7/8, Overall Width 9 13/16, Overall Height 8 11/16
