CAD Viewer & Download Files

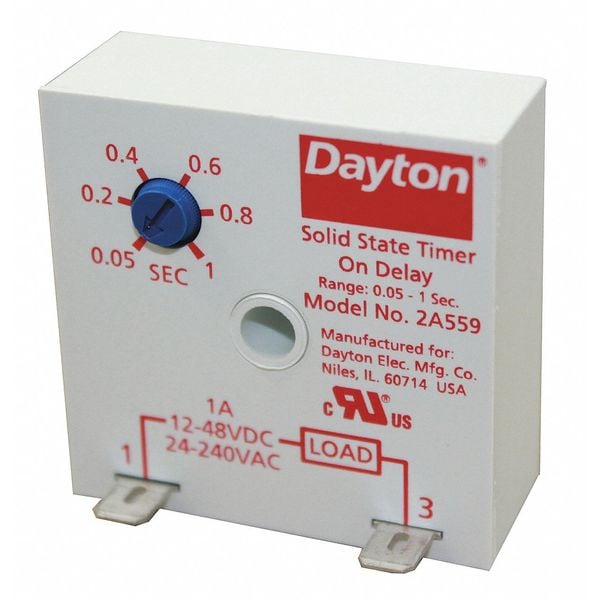

Single Function Encapsulated Timing Relay, Square, On Delay, 1 Functions 240V DC, SPST-NO
Mfr # 2A559
Zoro # G1230397
CAD Available
product price: $31.89
/eaKey Features
CAD Drawing
Delay Function
On Delay
Number of Delay Functions
1
Minimum Time Setting
0.05 sec
Maximum Time Setting
1 sec
Base Shape
Square
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
2A559
Zoro #
G1230397
UPC #
190735216309
Country of Origin
United States
Dimensions
Overall Height - Relay
1.14 in
Body Height
0.79 in
Body Depth
2 in
Overall Depth
1.14 in
Body Width
2 in
Description
Single Function Encapsulated Timing Relay, Adjustment Method Potentiometer, Base Shape Square, Coil Voltage 240V DC, Contact Form SPST-NO, Contact Rating (AC) 1 A @ 24 to 120V, Contact Rating (DC) 1 A @ 12 to 24V, Current Rating 1 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Screw Terminal, Input Voltage 12 to 48V DC, 24 to 240V AC, Minimum Time Setting 0.05 sec, Maximum Time Setting 1 sec, Number of Pins 2, Sealing Encapsulated, Mounting Style Surface
