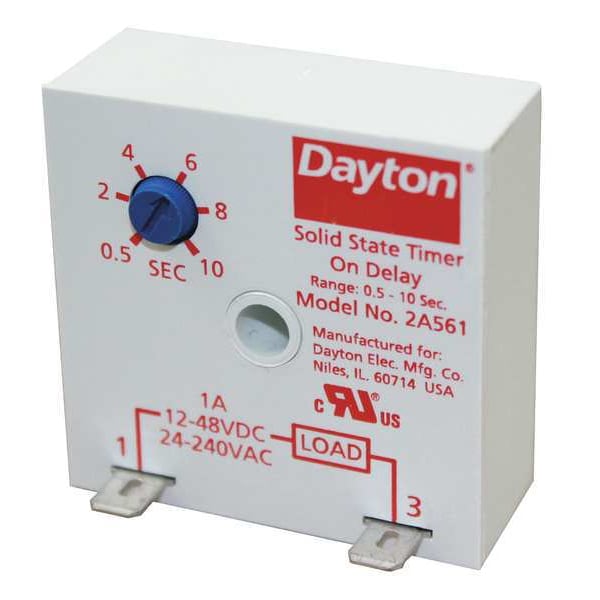

Single Function Encapsulated Timing Relay, Square, On Delay, 1 Functions 240V DC, SPST-NO

  • Mfr # 2A561
  • Zoro # G0337924
CAD Available
product price:
$
32.49
/ea

Key Features

CAD Drawing
Delay Function
On Delay
Number of Delay Functions
1
Minimum Time Setting
0.5 sec
Maximum Time Setting
10 sec
Base Shape
Square
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2A561
Zoro #
G0337924
UPC #
190735216323
Country of Origin
United States
Item
Single Function Encapsulated Timing Relay
Delay Function
On Delay
Number of Delay Functions
1
Minimum Time Setting
0.5 sec
Maximum Time Setting
10 sec
Base Shape
Square
Number of Pins
2
Coil Voltage
240V DC
Current Rating
1 A
Contact Form
SPST-NO
Contact Rating (AC)
1 A @ 24 to 120V
Contact Rating (DC)
1 A @ 12 to 24V
Type of Output
Solid State
Timer Range
0.50 sec. to 10.00 sec.
Adjustment Method
Potentiometer
Contact Amp Rating (Resistive)
1A
Status Indicator
None
Operating Functions
1
Input or Control Voltage Range
24V AC to 240V AC, 12V DC to 48V DC
Standards
CE Certified, UL Listed
Input Voltage
12 to 48V DC, 24 to 240V AC
Electrical Connection
Screw Terminal
Frequency
50/60 Hz
Mounting Style
Surface
Sealing
Encapsulated
Reset Method
Time-Limit Reset
CAD Available
Yes

Dimensions

Overall Height - Relay
1.14 in
Body Height
0.79 in
Body Depth
2 in
Overall Depth
1.14 in
Body Width
2 in

Description

Single Function Encapsulated Timing Relay, Adjustment Method Potentiometer, Base Shape Square, Coil Voltage 240V DC, Contact Form SPST-NO, Contact Rating (AC) 1 A @ 24 to 120V, Contact Rating (DC) 1 A @ 12 to 24V, Current Rating 1 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Screw Terminal, Input Voltage 12 to 48V DC, 24 to 240V AC, Minimum Time Setting 0.5 sec, Maximum Time Setting 10 sec, Number of Pins 2, Sealing Encapsulated, Mounting Style Surface
