  13. Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 120V AC/DC, DPDT

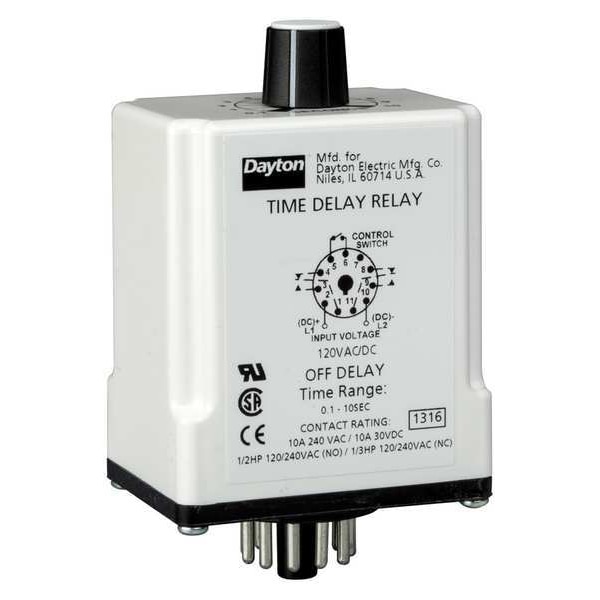

Dayton Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 120V AC/DC, DPDT 1EGC4 - main

CAD Viewer & Download Files

Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 120V AC/DC, DPDT

  • Mfr # 1EGC4

  • Zoro # G0663327

CAD Available
product price: $49.39
/ea

Key Features

CAD Drawing
Delay Function
Off Delay
Number of Delay Functions
1
Minimum Time Setting
9 sec
Maximum Time Setting
15 min
Base Shape
Octal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1EGC4
Zoro #
G0663327
UPC #
190735137864
Country of Origin
United States

Dimensions

Overall Height - Relay
3.1 in
Body Height
2.9 in
Body Depth
1.7 in
Body Width
2.4 in
Overall Depth
3.1 in

Details

Item
Single Function Time Delay Relay
Delay Function
Off Delay
Number of Delay Functions
1
Minimum Time Setting
9 sec
Maximum Time Setting
15 min
Base Shape
Octal
Number of Pins
11
Coil Voltage
120V AC/DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 240V AC
Contact Rating (DC)
10 A @ 30V
Standards
CE Certified, CSA Certified, UL Listed, UL Socket
Coil Rating
2VA
Status Indicator
None
Operating Functions
2
Contact Amp Rating (Resistive)
10A
Socket Code
B
Electrical Connection
Socket
Socket
1EGP2, 1EGP4, 6X156
Contact Material
Silver Nickel
Adjustment Method
Potentiometer
Input Voltage
120V AC/DC
Frequency
50/60 Hz
Reset Method
Time-Limit Reset
Minimum Operating Temperature
-18 Degrees F
Mechanical Operating Durability
10,000,000
Operating Time Accuracy
+0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Sealing
Enclosed
Electrical Operating Durability
100,000
Mounting Style
Plug-In
Power Consumption
2 VA
Maximum Operating Temperature
122 Degrees F
IP Rating
IP20
CAD Available
Yes

Description

Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Off Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 9 sec, Maximum Time Setting 15 min, Number of Pins 11, Sealing Enclosed, Mounting Style Plug-In
