CAD Viewer & Download Files

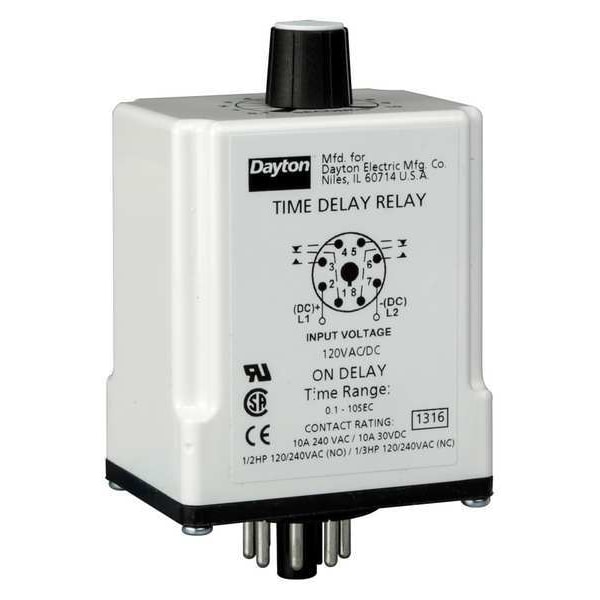

Single Function Time Delay Relay, Octal, On Delay, 1 Functions 120V AC/DC, DPDT
Mfr # 1EGB8
Zoro # G2987397
CAD Available
product price: $49.59
/eaKey Features
CAD Drawing
Delay Function
On Delay
Number of Delay Functions
1
Minimum Time Setting
9 sec
Maximum Time Setting
15 min
Base Shape
Octal
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1EGB8
Zoro #
G2987397
UPC #
190735137819
Country of Origin
United States
Dimensions
Overall Height - Relay
3.1 in
Body Width
2.4 in
Body Height
2.9 in
Overall Depth
3.1 in
Body Depth
1.7 in
Description
Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 9 sec, Maximum Time Setting 15 min, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In
