Dayton

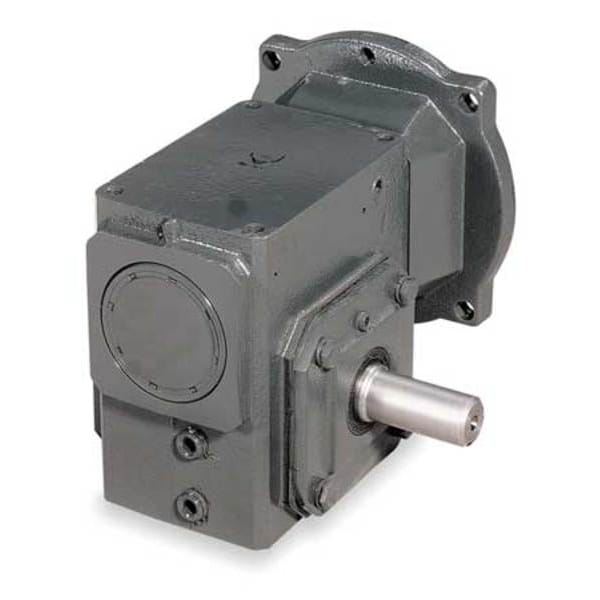

Speed Reducer, C-Face, 56C, 50:1

product price: $677.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Nominal Ratio 50:1
  • Input RPM 1,750 RPM
  • Bore Dia. 5/8 in
  • Nominal Output RPM 35 RPM
  • Standards AGMA
See all product information

Product Information

Dimensions

Bore Dia. 5/8 in
Dimension U 7/8 in
Output Shaft Dia. 7/8 in
Input Shaft Diameter 5/8 in
Output Shaft Diameter 7/8 in

Details

Item Speed Reducer
Nominal Ratio 50:1
Input RPM 1,750 RPM
Nominal Output RPM 35 RPM
Standards AGMA
Bearings Ball
Output Torque @ 3/4 HP 449 in.-lb.
Duty Standard
Mounting Any Position Except Input Motor Shaft Up
Seal Type Double Lip
Gear Type Worm
Reducer Model No. 83954
Finish Powdered Epoxy Paint
Output Torque @ 1/2 HP 449 in-lb
Shaft Orientation Right Angle
Overhung Load 700 lb
Output Torque @ 1/4 HP 279 in-lb
Frame 56c
Speed Reducer Type C-Face
Output Torque @ 1/40 HP 3600 in.-lb.
Solid/Hollow Output Shaft Solid
Max. Input HP 0.5 hp
Rotation CW/CCW
Worm Center Distance 1.75 in
Worm Gear Material Bronze
Single/Double Output/Universal Single Output
Pinion Material Hardened Steel
Gear Material Hardened Steel, Manganese Bronze
Max. Output Torque 449 in-lb
Lubrication Klubersynth UH1 6-460
Housing Material Cast Iron
Number of Stages 1
Output Torque @ 1/3 HP 379 in-lb
Application Speed Reducer
Nominal Output rpm 35 rpm
Mounting Orientation Any Position Except Input Motor Shaft Up
Motor Frame Designation 56C
Input Connection Type C-Face
Housing Material Finish Powdered Epoxy Paint
Maximum Output Speed 35 RPM
Gear Ratio 50:1
Maximum Output Torque 449 in-lb
Overhung Load Capacity 700 ft-lb
Maximum Input Horsepower 0.5 hp
Output Shaft Type Keyed
Maximum Input Speed 1,750 RPM
Bearing Type Ball, Tapered Roller

Description

Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Keyed, Maximum Output Speed 35 RPM, Motor Frame Designation 56C, Worm Center Distance 1.75 in, Gear Ratio 50:1, Rotation CW/CCW, Maximum Input Horsepower 0.5 hp, Maximum Output Torque 449 in-lb, Overhung Load Capacity 700 ft-lb, Mounting Orientation Any Position Except Input Motor Shaft Up, Housing Material Cast Iron, Application Speed Reducer, Bearing Type Ball, Tapered Roller

Restrictions
