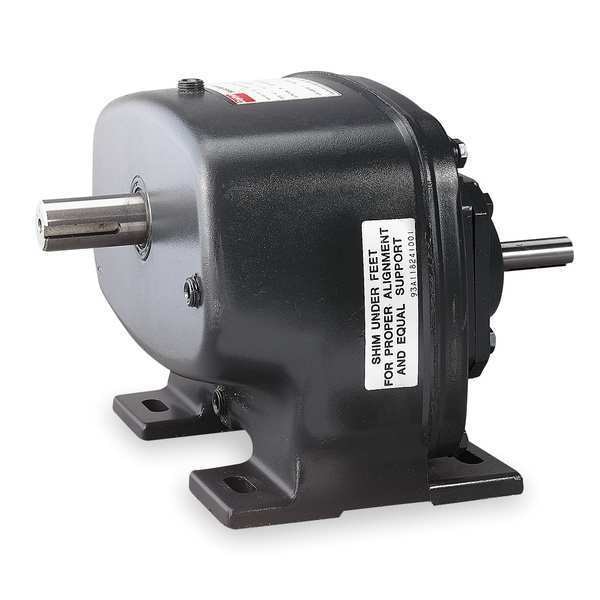

Speed Reducer, Indirect Drive, 12.5:1

  • Mfr # 4Z861

  • Zoro # G1526034

product price:
$
971.99
/ea
Free Shipping & Returns

Key Features

Nominal Ratio
12.5:1
Input RPM
1750 rpm
Nominal Output RPM
140 RPM
Overall Length
5.69 in
Standards
AGMA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4Z861
Zoro #
G1526034
UPC #
190735341094
Country of Origin
United States
Item
Speed Reducer
Nominal Ratio
12.5:1
Input RPM
1750 rpm
Nominal Output RPM
140 RPM
Standards
AGMA
Solid/Hollow Output Shaft
Solid
Rotation
CW/CCW
Output Torque @ 1/40 HP
3600 in.-lb.
Max. Input HP
1 hp
Output Torque @ 1/3 HP
143 in-lb
Reducer Model No.
84463
Output Torque @ 1/4 HP
107 in-lb
Seal Type
Double Lip
Duty
Standard
Lubrication
Klubersynth UH1 6-460
Single/Double Output/Universal
Single Output
Max. Output Torque
427 in-lb
Output Torque @ 1/2 HP
214 in-lb
Output Torque @ 1 HP
427 in-lb
Number of Stages
1
Speed Reducer Type
Indirect Drive
Output Torque @ 3/4 HP
320 in-lb
Shaft Orientation
Parallel Inline
Gear Material
Hardened Steel
Finish
Powdered Epoxy Paint
Housing Material
Cast Aluminum
Gear Type
Helical
Bearings
Ball
Output Torque @ 1.5 HP
427 in.-lb.
Pinion Material
Hardened Steel
Overhung Load
709 lb
Application
General Purpose
Includes
Speed Reducer, Steel Key, Tube Anti-Seize Compound, Vent Plug
Nominal Output rpm
140 rpm
Mount Type
Bolt-on
Base to Center
4.88 in
Input Connection Type
Indirect Drive
Bearing Type
Ball
Maximum Input Speed
1,725 RPM
Maximum Output Speed
140 RPM
Housing Material Finish
Powdered Epoxy Paint
Maximum Input Horsepower
1 hp
Input Shaft Type
Keyed Shaft
Gear Ratio
12.5:1
Overhung Load Capacity
709 lb
Maximum Output Torque
427 in-lb
Output Shaft Type
Keyed
For Location
Indoor, Outdoor

Description

Speed Reducer, Input Connection Type Indirect Drive, Gear Type Helical, Output Shaft Type Keyed, Maximum Output Speed 140 RPM, Base to Center 4.88 in, Gear Ratio 12.5:1, Rotation CW/CCW, Maximum Input Horsepower 1 hp, Maximum Output Torque 427 in-lb, Overhung Load Capacity 709 lb, Overall Height 7.47 in, Mount Hole Center-to-Center Length 4.5 in, Application General Purpose, Bearing Type Ball, Maximum Input Speed 1,725 RPM, For Location Indoor, Outdoor, Gear Material Hardened Steel
