  9. Square Axial Fan Kit, 120V AC, Cast Aluminum, 3 1/8 in W.

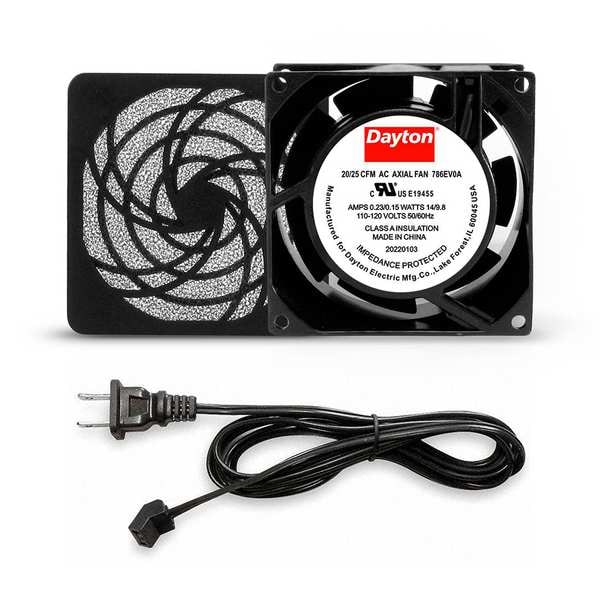

Dayton Square Axial Fan Kit, 120V AC, Cast Aluminum, 3 1/8 in W. 786EV0 - main

Square Axial Fan Kit, 120V AC, Cast Aluminum, 3 1/8 in W.

  • Mfr # 786EV0

  • Zoro # G804946716

product price: $50.99
/ea

Key Features

Blade Material
Polycarbonate
CFM @ 0.000-In. SP
20/25 cfm
Depth
1 1/2 in
Height
3 1/8 in
Housing Material
Cast Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
786EV0
Zoro #
G804946716
UPC #
-
Country of Origin
China

Dimensions

Depth
1 1/2 in
Height
3 1/8 in
Width
3 1/8 in
Fan Cord Length
72 in

Details

Blade Material
Polycarbonate
CFM @ 0.000-In. SP
20/25 cfm
Housing Material
Cast Aluminum
Watts
14/9.8 W
Includes
Fan, Steel Wire Guard, Cord Set with NEMA 1-15 Plug
Voltage
120V AC
RPM
2350/2850 RPM
Motor Insulation
Class A
Environmental Applications
Equipment Cooling
Bearing Type
Ball
Mounting Position
Vertical or Horizontal
Max. Ambient Temp.
150 Degrees F
Hz
50/60 Hz Hz
Amps
0.23/0.15 A
Thermal Protection
Impedance Protected
IP Rating
20
Mounting Eye O.C.
2 13/16 in
Item
Square Axial Fan Kit
Fan Shape
Square
Electrical Connection - Fans
Terminals
Motor Design
Shaded Pole
Standards
cULus Recognized
Color
Black
Sound Level
34/37

Description

Axial Fan, Fan Shape Square, Mounting Eye O.C. 2 13/16 in, Height 3 1/8 in, Depth 1 1/2 in, Width 3 1/8 in, Fan Cord Length 72 in, CFM @ 0.000-In. SP 20 cfm, 25 cfm, Watts 14/9.8 W, Voltage 120V AC, 60/50 Hz Hz, 0.23/0.15 A Amps, Electrical Connection - Fans Terminals, Sound Level 37 dBA, IP Rating IP20, Mounting Position Horizontal/Vertical, Bearing Type Ball, 2,350 RPM, 2,850 RPM RPM, Motor Design Shaded Pole, Motor Insulation A, Thermal Protection Yes, Max. Ambient Temp. 150 Degrees F
