  9. Square Axial Fan Kit, 120V AC, Cast Aluminum, 4 3/4 in W.

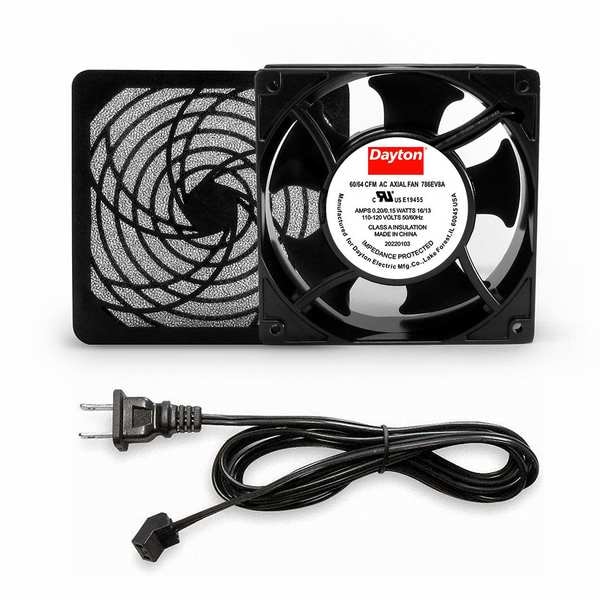

Dayton Square Axial Fan Kit, 120V AC, Cast Aluminum, 4 3/4 in W. 786EV8 - main

Square Axial Fan Kit, 120V AC, Cast Aluminum, 4 3/4 in W.

  • Mfr # 786EV8

  • Zoro # G904924980

product price: $58.19
/ea

Key Features

Blade Material
Polycarbonate
CFM @ 0.000-In. SP
60/64 cfm
Depth
1 in
Height
4 3/4 in
Housing Material
Cast Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
786EV8
Zoro #
G904924980
UPC #
-
Country of Origin
China

Dimensions

Depth
1 in
Height
4 3/4 in
Width
4 3/4 in
Fan Cord Length
72 in

Details

Blade Material
Polycarbonate
CFM @ 0.000-In. SP
60/64 cfm
Housing Material
Cast Aluminum
Watts
16/13 W
Includes
Fan, Filter, Plastic Guard, Cord Set with NEMA 1-15 Plug
Voltage
120V AC
Amps
0.20/0.15 A
IP Rating
20
Mounting Position
Vertical or Horizontal
Standards
cULus Recognized
Max. Ambient Temp.
150 Degrees F
Hz
50/60 Hz Hz
RPM
2250/2450 RPM
Mounting Eye O.C.
4 1/8 in
Environmental Applications
Equipment Cooling
Electrical Connection - Fans
Terminals
Motor Insulation
Class A
Sound Level
34/37
Bearing Type
Ball
Item
Square Axial Fan Kit
Color
Black
Fan Shape
Square
Motor Design
Shaded Pole
Thermal Protection
Impedance Protected

Description

Axial Fan, Fan Shape Square, Mounting Eye O.C. 4 1/8 in, Height 4 3/4 in, Depth 1 in, Width 4 3/4 in, Fan Cord Length 72 in, CFM @ 0.000-In. SP 60 cfm, 64 cfm, Watts 16/13 W, Voltage 120V AC, 60/50 Hz Hz, 0.2/0.15 A Amps, Electrical Connection - Fans Terminals, Sound Level 37 dBA, IP Rating IP20, Mounting Position Horizontal/Vertical, Bearing Type Ball, 2,250 RPM, 2,450 RPM RPM, Motor Design Shaded Pole, Motor Insulation A, Thermal Protection Yes, Max. Ambient Temp. 150 Degrees F
