Dayton

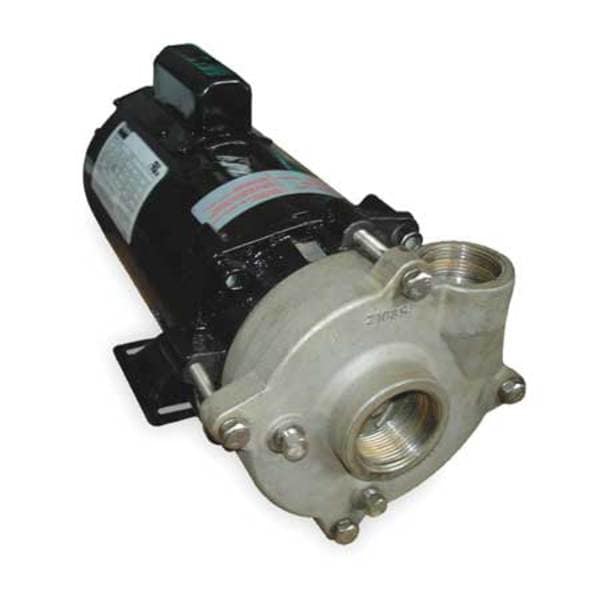

Stainless Steel 1/2 HP Centrifugal Pump 115/230V

original price: $563.78
5% off
new price: $530.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP - Pumps 1/2 hp
  • Voltage - Pumps 120/240V AC
  • Phase - Pumps 1
  • Housing Material - Pumps Stainless Steel
  • Inlet Size - Pumps 1-1/4 in NPT
See all product information

Product Information

Dimensions

Inlet Size - Pumps 1-1/4 in NPT
Outlet Size - Pumps 1 in NPT
Max. Dia. Solids 7/16 in
Manufacturers Warranty Length 1 yr
Height 5 7/8 in
Length 13 1/2 in
Width 6 5/8 in
Overall Width 6.6 in
Overall Length 13.6 in
Overall Height 5.8 in
Compatible Intake Pipe Size 1 1/4 in
Compatible Discharge Pipe Size 1 in
Manufacturer Warranty Length 1 yr
Solid Diameter (Maximum) 0.44 in

Details

HP - Pumps 1/2 hp
Voltage - Pumps 120/240V AC
Phase - Pumps 1
Housing Material - Pumps Stainless Steel
Max. Pressure - Pumps 19 psi
Max. Head 44 ft
Motor Enclosure - Pumps Open Dripproof
GPM of Water @ 40 Ft. of Head 10
Outlet 1" NPT
Min. GPM @ Head 10 gpm @ 40 ft
HP 1/2
Includes Manual
GPM of Water @ 10 Ft. of Head 67
Motor Enclosure Open Dripproof (ODP)
Best Efficiency Range GPM @ Head 19 to 63 gpm @ 35 to 15 ft
Motor Type Capacitor-Start
Max. Case Pressure 200 psi
GPM of Water @ 15 Ft. of Head 63
Motor RPM 3450
Item - Straight Centrifugal Pumps Straight Centrifugal High Flow Pump
Seal Material Viton
Amps 8.4/4.8
Inlet 1-1/4" NPT
Port Rotation 4 Position Increments
Hz 60
Best Efficiency GPM @ Head 38 gpm @ 27 ft
Wetted Materials Carbon, Ceramic, Stainless Steel, Viton
Agency Compliance c UL us
Impeller Material Stainless Steel
Inlet Pressure 200 psi
GPM of Water @ 20 Ft. of Head 57
Bearing Type Ball
GPM of Water @ 25 Ft. of Head 48
Housing Material Stainless steel
Max. Pressure 19.04 psi
Duty Continuous
Max. Specific Gravity 1.0
Impeller Type Semi Open
Max. GPM @ Head 67 gpm @ 10 ft
GPM of Water @ 30 Ft. of Head 40
Item Centrifugal Pump
Frame 56J
Max. Liquid Temp. 200 Degrees F
Voltage 115/230
Phase Single
Standards cULus Listed
Features Continuous High Pressure Circulation
Maximum Media Temperature 200 Degrees F
Flow Rate @ 30 ft of Head (Maximum) 40 gpm
Pumping Application Aggressive Liquid Applications and Other General Purpose Pumping, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Utility, Water Circulation
Frequency 60 Hz
Compatible with Media Type Non-Flammable Liquids
Maximum Flow Rate 67 gpm
Flow Rate @ 10 ft of Head (Maximum) 67 gpm
Maximum RPM 3,450 RPM
Minimum Media Temperature 40 Degrees F
Duty Cycle Continuous
Pump Housing Material Stainless Steel
Nameplate Voltage 115/230V AC
Intake Type NPT
Shut Off Pressure (Maximum) 19 psi
Minimum Flow Rate 10 gpm
Wetted Material Carbon, Ceramic, Stainless Steel, Viton
Maximum Feet of Head 44 ft
For Use With Potable Systems No
Flow Rate @ 20 ft of Head (Maximum) 57 gpm
Impeller Design Semi-Open
Motor Frame Designation 56J
Horsepower 1/2 hp
Seal Type Mechanical
Feet of Head (Minimum) 10 ft
Specific Gravity (Maximum) 1
Flow Rate @ 40 ft of Head (Maximum) 10 gpm
Discharge Type NPT
Discharge Rotation 90 Degrees Increments
Best Efficiency Flow 38 gpm
Flow Rate @ 15 ft of Head (Maximum) 63 gpm
Shaft Material 304 Stainless Steel
Best Efficiency Head 27 ft

Description

Centrifugal Pump, Phase Single, Pump Housing Material Stainless Steel, Horsepower 1/2 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 40 ft of Head (Maximum) 10 gpm, Maximum Feet of Head 44 ft, Compatible Intake Pipe Size 1 1/4 in, Intake Type NPT, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 67 gpm, Flow Rate @ 10 ft of Head (Maximum) 67 gpm, Flow Rate @ 15 ft of Head (Maximum) 63 gpm, Flow Rate @ 20 ft of Head (Maximum) 57 gpm
