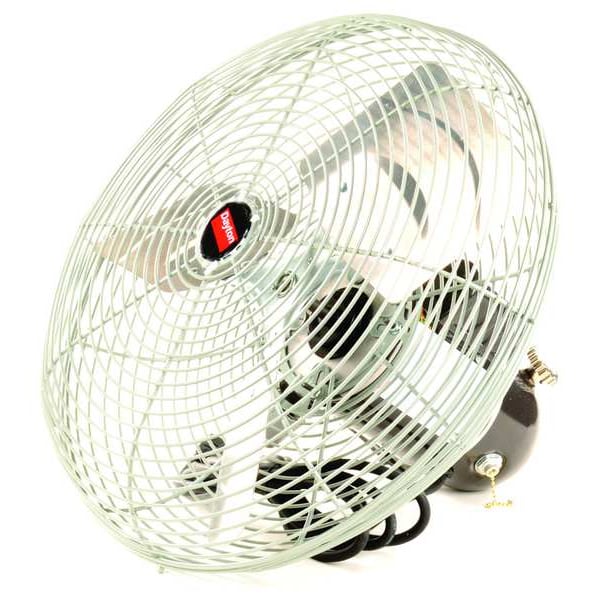

Standard Duty Air Circulator, IBeam, Pedestal, Wall Mount, 18 in Blade Dia, 115V, 2,950/4,550 cfm

  • Mfr # 13F047
  • Zoro # G4202177
product price:
$
332.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Oscillating
Number of Speeds
2
Voltage
115V AC
Phase
Single
Motor HP
1/4 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
13F047
Zoro #
G4202177
UPC #
190735118016
Country of Origin
China

Dimensions

Blade Diameter
18 in
Max. Depth
17-3/4"
Shaft Dia.
1/2 in
Height
21 in
Outside Dia.
21"
Width
21 in
Height Adjustment
Fixed Height
Fan Cord Length
10 ft
Depth
17 3/4 in
Max. Mounting Height
Unrestricted

Details

Oscillation
Oscillating
Number of Speeds
2
Voltage
115V AC
Phase
Single
Motor HP
1/4 hp
Air Flow
2,950/4,550 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Fan Power Source
Plug-In
Sound Level
72 dBA
Item
Fan Head
Fan Accessory Style
Standard
Thermal Protection
Automatic Reset
Fan Mounting Location
Fan Head Only
CFM High
4550
Environmental Applications
Industrial
Standards
cULus Listed
Fan Style
Standard
Includes
Mounting Bolts
Max. Ambient Temp.
104 Degrees F
CFM/Watt
20.7
CFM Low
2950
Air Velocity @ 10 Ft.
620/460 fpm
Requires
Mounting Device
Guard Material
Steel
Motor RPM
1100/850
Wire Guard Finish
Powder Coated
Number of Conductors
3
Motor Insulation
B
Motor Enclosure
Totally Enclosed Air-Over
Motor Type
Permanent Split Capacitor
Number of Blades
3
Air Velocity @ 20 Ft.
365/315 fpm
Hz
60 Hz
Bearing Type
Ball
Watts
183/147
Assembled
Yes
Housing Material
Steel
Air Velocity @ 40 Ft.
100/50 fpm
Mobile/Stationary
Mobile
NEMA Plug Configuration
5-15P
Application
Spot Cooling and People Cooling
Wheeled Base
Stationary
Assembly Required
No
RPM
850 RPM, 1,100 RPM
Color
Gray
Amps
2/1.4
Fan Housing Material
Steel
Material
Steel
Motor hp
1/4 hp
NEMA plug Configuration
5-15p
Head Tilt Adjustment
125 Degrees
Sound Level - Minimum
70 dBA
Airflow
2,950 cfm, 4,550 cfm
Compatible Manufacturer Model Number
40PR87, SAS.03, SAS.05, SAS.06, SAS.14
Corrosion-Resistant
Yes
Bearing Protection
Double-Sealed
Fan Shape
Basket
Environment Rating
Damp
Motor Design
Permanent Split Capacitor
Compatible with Brand
Dayton
For Location
Manufacturing Plant
Guard Color
Gray
High-Visibility
No
For Mounting Type
Bracket
Removable Base
Permanently Lubricated
Compatible with Manufacturer Model Number
40PR87, SAS.03, SAS.05, SAS.06, SAS.14
For Manufacturer Part Number
40PR87, SAS.03, SAS.05, SAS.06, SAS.14
Compatible with Mfr. Model Number
40PR87, SAS.03, SAS.05, SAS.06, SAS.14
Compatible Manufacturer Part Number
40PR87, SAS.03, SAS.05, SAS.06, SAS.14

Description

Air Circulator, Blade Dia. 18 In., Mobile, Yes, 2 Speeds, Voltage 115, 1 Phase, CFM High 4550, CFM Low 2950, Air Velocity (FPM) @ 20 Ft. 365/315, Motor HP 1/4, Motor RPM 1100/850, Operating Amps 2/1.4, Fan Mounting Location IBeam, Pedestal, Wall, Fan Accessory Style Standard, Fan RPM 1100/850, Sound Level 72dBA, Max. Ambient Temp. 104 Degrees F, Hz 60, Watts 183/147, Motor Type Permanent Split Capacitor, Drive Type Direct, Outside Dia. 21 In., Height 21 In., Width 21 In., Max. Depth 17-3/4 In.
