  5. Standard Duty Hazardous Location Industrial Fan, Wall Mount, 30 in Blade Dia, 115/230V, 10,937 cfm

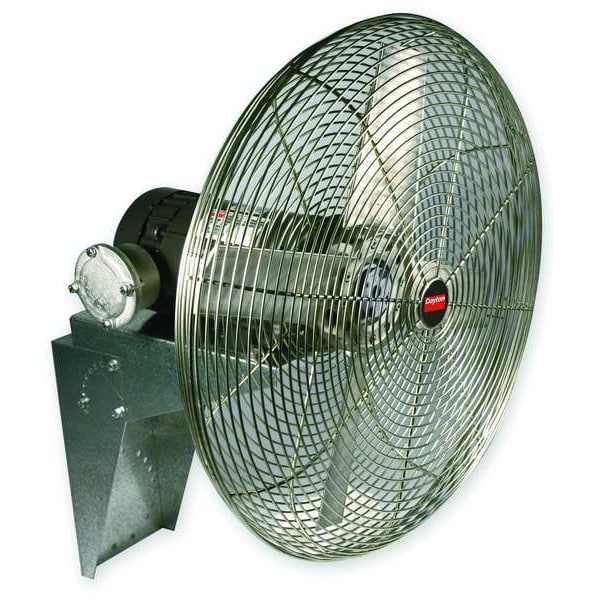

Dayton Standard Duty Hazardous Location Industrial Fan, Wall Mount, 30 in Blade Dia, 115/230V, 10,937 cfm 1VCH2 - main

Standard Duty Hazardous Location Industrial Fan, Wall Mount, 30 in Blade Dia, 115/230V, 10,937 cfm

  • Mfr # 1VCH2

  • Zoro # G1926294

product price:  $1,272.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/230V
Phase
1
Motor HP
3/4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1VCH2
Zoro #
G1926294
UPC #
190735148570
Country of Origin
United States

Dimensions

Blade Diameter
30 in
Max. Depth
25-3/4 in
Shaft Dia.
5/8 in
Height
37 in
Width
33 in
Outside Dia.
33 in
Depth
25 3/4 in

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/230V
Phase
1
Motor HP
3/4
Air Flow
10,937 cfm
Drive Type
Direct Drive
Blade Material
Cast Aluminum
Sound Level
80 dBA
Item
Hazardous Location Industrial Fan
Includes
Secondary Support Cable, Wall Bracket
Fan Accessory Style
Standard
Bearing Type
Ball
Number of Blades
4
Hz
60 Hz
Thermal Protection
Auto
Housing Material
Steel
Motor Insulation
Class B
Max. Ambient Temp.
104 Degrees F
Motor RPM
1,140 RPM
Environmental Applications
Industrial
Wire Guard Finish
Steel
CFM High
10937
Air Velocity @ 60 Ft.
295 fpm
Standards
UL Listed E29183 for Class 1, Div. 1, Group D, and Class II, Div. I, Groups E, F, and G, OSHA Compliant Wire Guards
Application
Hazardous Location Spot Cooling
Air Velocity @ 20 Ft.
835 fpm
Air Velocity @ 40 Ft.
385 fpm
Air Velocity @ 80 Ft.
260 fpm
Fan Mounting Location
Wall
Guard Material
Steel
Mobile/Stationary
Stationary
Motor Enclosure
Totally Enclosed Fan Cooled
Air Velocity @ 10 Ft.
1390 fpm
Watts
701
Motor Type
Capacitor Start
Assembled
Yes
Fan Style
Standard Duty
Amps
7.0/3.5
Assembly Required
No
Wheeled Base
Stationary
RPM
1140
Fan Housing Material
Steel
Material
Steel
Motor hp
3/4 hp

Description

Hazardous-Location Industrial Fan, Blade Dia. 30 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 115/230V AC, 1 Phase, CFM High 10,937, Air Velocity @ 20 Ft. 835 fpm, Motor HP 3/4 hp, Motor RPM 1140, Operating Amps 7.0/3.5, Fan Mounting Location Wall, Fan Accessory Style Standard, Fan RPM 1140, Sound Level 80 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 701, Motor Type Capacitor Start, Drive Type Direct Drive, Outside Dia. 33 In., Height 37 in, Width 33 in, Max. Depth 25-3/4 In.
