  9. Standard Duty Industrial Fan, Phase 1

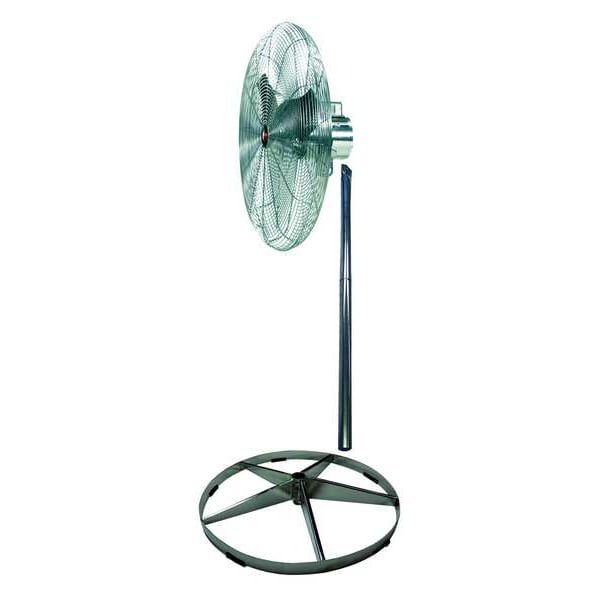

Dayton Standard Duty Industrial Fan, Phase 1 216NV2 - main

Standard Duty Industrial Fan, Phase 1

  • Mfr # 216NV2

  • Zoro # G8625152

product price: $1,993.99
/ea
Free Shipping & Returns

Key Features

Watts
120
Blade Diameter
20 in
Number of Speeds
1
Air Velocity @ 20 Ft.
225 fpm
Depth
10 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
216NV2
Zoro #
G8625152
UPC #
190735222911
Country of Origin
Multiple

Dimensions

Blade Diameter
20 in
Depth
10 1/2 in
Shaft Dia.
1/2 in
Height Adjustment
Fixed Height
Base Dia.
30 in
Width
22 1/2 in
Height
22 1/2 in

Details

Watts
120
Number of Speeds
1
Air Velocity @ 20 Ft.
225 fpm
Thermal Protection
Automatic Reset
Hz
60 Hz
Motor Insulation
Class B
Phase
1
Color
Gray
Amps
1.1
Max. Ambient Temp.
105 Degrees F
Air Velocity @ 10 Ft.
450 fpm
Blade Material
304 Stainless Steel
Features
Stainless Steel Wall Bracket, Mounting Bolts, Secondary Safety Support Cable
Guard Material
304 Stainless Steel
Motor HP
1/15 hp
Sound Level
68dBA
Standards
cULus, OSHA, BISSC, USDA, NSF
Oscillation
Non-Oscillating
Motor Enclosure
Totally Enclosed Non-Ventilated
Assembly Required
No
Number of Blades
3
Fan Mounting Location
Pedestal
Wheeled Base
Stationary
Includes
Washdown Air Circulator, Floor Pedestal, Open Base
Bearing Type
Ball
NEMA Plug Configuration
Hardwired
Motor Design
Permanent Split Capacitor
Item
Standard-Duty Industrial Fan
Voltage
115V AC
Air Velocity @ 40 Ft.
30 fpm
Air Flow
2,670 cfm

Description

Freestanding Fan, Fan Mounting Location Floor, Number of Speeds 1, Non-Oscillating, Fan Power Source Hardwired, 120 W Watts, Number of Blades 3, Fan Voltage 115 V AC, 1.1 A Amps, Height 22 1/2 in, Width 22 1/2 in, 60 Hz Hz, Bearing Type Ball, Blade Material Stainless Steel, Stainless Steel, Hardwired, Gray, BISSC, cULus, NSF, OSHA, USDA, Washdown Air Circulator, Floor Pedestal, Open Base
