Shop DAYTON

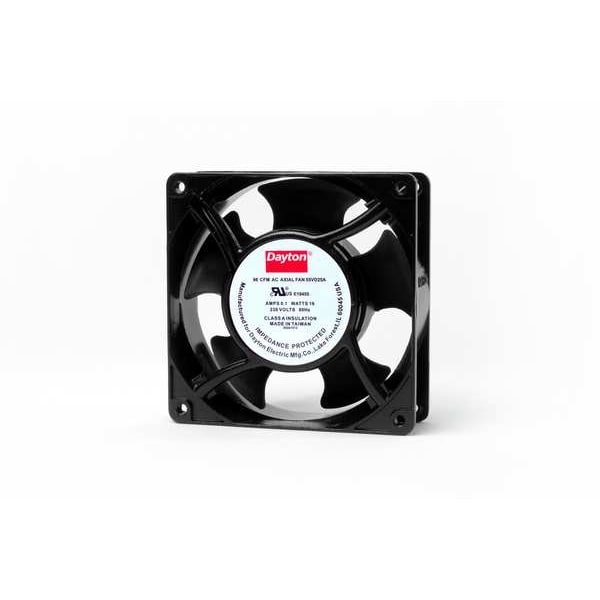

Standard Square Axial Fan, 230V AC, Aluminum, 4 11/16 in W.

  • Mfr # 55VD25

  • Zoro # G300690366

product price:  $24.39
/ea

Key Features

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
98 cfm
Depth
1 1/2 in
Height
4 11/16 in
Housing Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
55VD25
Zoro #
G300690366
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Depth
1 1/2 in
Height
4 11/16 in
Width
4 11/16 in
Fan Cord Length
No Cord

Details

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
98 cfm
Housing Material
Aluminum
Watts
16 W
Voltage
230V AC
Environmental Applications
Equipment Cooling
Motor Design
Shaded Pole
Color
Black
Amps
0.1 A
Sound Level
50 dBA
Max. Ambient Temp.
176 Degrees F
Mounting Position
Horizontal/Vertical
IP Rating
IP33
Bearing Type
Ball
Electrical Connection - Fans
Terminals
Mounting Eye O.C.
4 1/8 in
Requires
Cord Set (Not Included)
Item
Axial Fan
Motor Insulation
A
Fan Shape
Square
Standards
cULus, RoHS
RPM
3,000 RPM
Hz
60 Hz
Air Flow
98 cfm
Removable Base
Permanently Lubricated
Environment Rating
Dry
Bearing Protection
Double-Shielded
Thermal Protection
No

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 4 1/8 in, Height 4 11/16 in, Depth 1 1/2 in, Width 4 11/16 in, Fan Cord Length No Cord, CFM @ 0.000-In. SP 35 cfm, Watts 16 W, Voltage 230V AC, 60 Hz Hz, 0.10 A Amps, Electrical Connection - Fans Terminals, Sound Level 50, IP Rating IP33, Air Flow 98 cfm, Mounting Position Vertical or Horizontal, Bearing Type Ball, 3000 RPM RPM, Motor Design Shaded Pole, Motor Insulation Class A, Max. Ambient Temp. 176 Degrees F
