Shop DAYTON

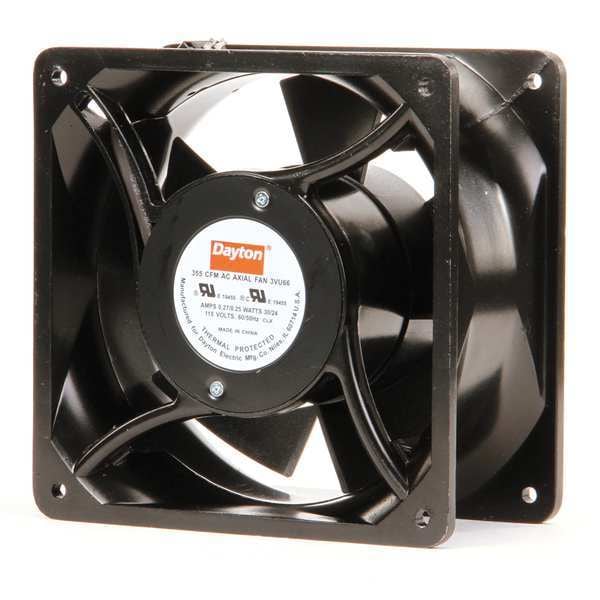

Standard Square Axial Fan, Square, 115V AC, 1 Phase, Cast Aluminum, 6 15/16 in W.

  • Mfr # 3VU66

  • Zoro # G1875675

product price:
$
117.99
/ea
Free Shipping & Returns

Key Features

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
355 cfm
Depth
3 1/2 in
Height
6 15/16 in
Housing Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3VU66
Zoro #
G1875675
UPC #
190735294789
Country of Origin
China

Dimensions

Depth
3 1/2 in
Height
6 15/16 in
Width
6 15/16 in
Fan Width
6-15/16"
Fan Depth
3-1/2"
Fan Width
6-15/16"
Fan Height
6-15/16"

Details

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
355 cfm
Housing Material
Aluminum
Phase
1
Shape
Square
Watts
24/30 W
Voltage
115V AC
Mounting Position
Horizontal/Vertical
Fan Item
Axial Fan
Mounting Eye O.C.
6 in
Fan Watts
30
Max. Ambient Temp.
158 Degrees F
Hz
60/50 Hz
Fan Shape
Square
Fan Voltage
115VAC
Fan dBA
66
dBA
66
Standards
RoHS Compliant, UL Recognized
Amps
0.27/0.25 A
Motor Insulation
A
Electrical Connection - Fans
Terminals
Housing Finish
Black Painted
Electrical Connections
Terminals
Item
Axial Fan
Thermal Protection
Yes
Mounting Eye O.C. - Fans
6"
Fan RPM
3250
Requires
Cord Set (Not Included)
Motor Type
Shaded pole
Bearings
Ball
IP Rating
IP20
Bearing Type
Ball
Color
Black
Environmental Applications
Equipment Cooling
RPM
2,800 RPM, 3,250 RPM
Motor Design
Shaded Pole
Includes Guard
No
Sound Level - Minimum
62 dBA
Removable Base
Permanently Lubricated
Includes Filter
No
Environment Rating
Dry
Sound Level
66 dBA

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 6 in, Height 6 15/16 in, Depth 3 1/2 in, Width 6 15/16 in, CFM @ 0.000-In. SP 102/92 cfm, Watts 24/30 W, Voltage 115V AC, 60/50 Hz Hz, 0.27/0.25 A Amps, Electrical Connection - Fans Terminals, Sound Level 66/62, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Ball, 3250/2800 RPM RPM, Motor Design Shaded Pole, Motor Insulation Class A, Thermal Protection Auto, Max. Ambient Temp. 158 Degrees F
