  9. Submersible Deep Well Pump and Control Panel, 1 hp, 230V AC, 3 Wires, 9.8 A, 7 Stages, 20 gpm

This item is Discontinued.

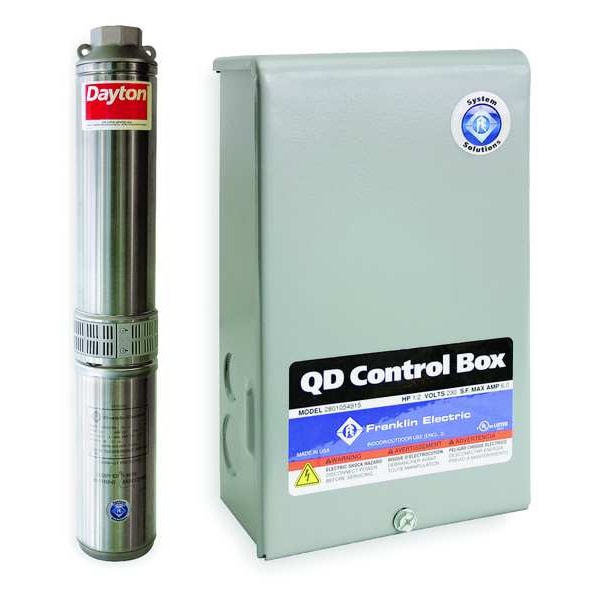

Dayton Submersible Deep Well Pump and Control Panel, 1 hp, 230V AC, 3 Wires, 9.8 A, 7 Stages, 20 gpm 558906

Submersible Deep Well Pump and Control Panel, 1 hp, 230V AC, 3 Wires, 9.8 A, 7 Stages, 20 gpm (Discontinued)

  • Mfr # 558906
  • Zoro # G2439744
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
558906
Zoro #
G2439744
UPC #
190735218563
Country of Origin
United States

Dimensions

GPM @ Vertical Depth to Water @ 20 Ft @ 50 PSI
22
GPM @ Vertical Depth to Water @ 100 Ft @ 50 PSI
17
Width (In.)
3-3/4
GPM @ Vertical Depth to Water @ 100 Ft @ 30 PSI
20
Length (In.)
3-3/4
GPM @ Vertical Depth to Water @ 200 Ft @ 30 PSI
8
Height (In.)
33-1/2
Discharge Dia.
1 1/4 in

Details

Item
Submersible Deep Well Pump and Control Panel
HP
1 hp
Number of Wires
3
Amps
9.8 A
Rated Voltage
230V AC
Phase - Pumps
1
Nominal Flow Rate
20 gpm
Number of Stages
7
Discharge Head Material
Stainless Steel
Flow Rate @ 100 Ft. @ 50 PSI
17 gpm
Impeller Material
Noryl
GPM of Water @ 20 Ft @ 30, 50 PSI
- 22
Motor
Franklin
SF Amps
10
Stages
7
Built-In Check Valve
Yes
Voltage
230
GPM of Water @ 450 Ft @ 30, 50 PSI
- -
GPM
20
GPM of Water @ 150 Ft @ 30, 50 PSI
17 -
Includes
Control Box
GPM of Water @ 500 Ft @ 30, 50 PSI
- -
GPM of Water @ 300 Ft @ 30, 50 PSI
- -
Amps AC
9.8
Pump-Motor Shell
Stainless Steel
GPM of Water @ 400 Ft @ 30, 50 PSI
- -
GPM of Water @ 175 Ft @ 30, 50 PSI
13 -
Shaft Material
Stainless Steel
Control Box Required
Yes
GPM of Water @ 80 Ft @ 30, 50 PSI
21 18
Discharge Port (In.)
1-1/4
GPM of Water @ 350 Ft @ 30, 50 PSI
- -
Pump Material
Stainless steel
Screen Material
Polyethylene
GPM of Water @ 60 Ft @ 30, 50 PSI
22 19
GPM of Water @ 125 Ft @ 30, 50 PSI
18 16
Pump Bearings
Rubber/Ceramic
Flow Ranges (GPM)
10 - 5
GPM of Water @ 100 Ft @ 30, 50 PSI
20 17
Max. Operating Temp. (F)
86
GPM of Water @ 250 Ft @ 30, 50 PSI
- -
Recommended Tank
3YA55, 4MY64
Well Capacity
High
Max. Head (Ft.)
273
GPM of Water @ 40 Ft @ 30, 50 PSI
23 21
Phase
1
GPM of Water @ 200 Ft @ 30, 50 PSI
8 -
Bearing Material
Rubber/Ceramic
Flow Rate @ 150 Ft. @ 30 PSI
17 gpm
Max. Head
273 ft
Flow Rate @ 100 Ft. @ 30 PSI
20 gpm
Max. Operating Temp.
86 Degrees F

Description

Submersible Deep Well Pump and Control Panel, HP 1 hp, Rated Voltage 230V AC, Amps 9.8 A, Phase - Pumps 1, Nominal Flow Rate 20 gpm, Number of Stages 7, Number of Wires 3, Impeller Material Noryl, Shaft Material Stainless Steel, Bearing Material Rubber/Ceramic, Flow Rate @ 100 Ft. @ 30 PSI 20 gpm, Flow Rate @ 100 Ft. @ 50 PSI 17 gpm, Flow Rate @ 150 Ft. @ 30 PSI 17 gpm, Max. Head 273 ft, Discharge Dia. 1 1/4 in, Max. Operating Temp. 86 Degrees F, Recommended Tank 3YA55, 4MY64
