  9. Submersible Deep Well Pump and Control Panel, 3/4 hp, 230V AC, 3 Wires, 8.0 A, 8 Stages, 12 gpm

This item is Discontinued.

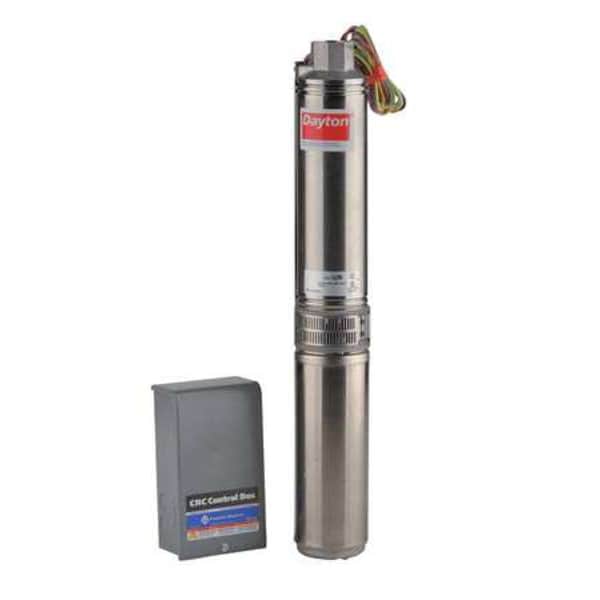

Dayton Submersible Deep Well Pump and Control Panel, 3/4 hp, 230V AC, 3 Wires, 8.0 A, 8 Stages, 12 gpm 558904

Submersible Deep Well Pump and Control Panel, 3/4 hp, 230V AC, 3 Wires, 8.0 A, 8 Stages, 12 gpm (Discontinued)

  • Mfr # 558904
  • Zoro # G1715357
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
558904
Zoro #
G1715357
UPC #
190735218549
Country of Origin
United States

Dimensions

GPM @ Vertical Depth to Water @ 200 Ft @ 50 PSI
7
GPM @ Vertical Depth to Water @ 100 Ft @ 50 PSI
10
Width (In.)
3-3/4
GPM @ Vertical Depth to Water @ 100 Ft @ 30 PSI
12
GPM @ Vertical Depth to Water @ 200 Ft @ 30 PSI
8
GPM @ Vertical Depth to Water @ 20 Ft @ 50 PSI
14
Height (In.)
24-25/32
Length (In.)
3-3/4
Discharge Dia.
1 1/4 in

Details

HP
3/4 hp
Item
Submersible Deep Well Pump and Control Panel
Number of Wires
3
Amps
8 A
Rated Voltage
230V AC
Phase - Pumps
1
Nominal Flow Rate
12 gpm
Number of Stages
8
Discharge Head Material
Stainless Steel
Flow Rate @ 100 Ft. @ 50 PSI
10 gpm
GPM of Water @ 350 Ft @ 30, 50 PSI
- -
GPM of Water @ 125 Ft @ 30, 50 PSI
11 10
Screen Material
Polyethylene
Stages
8
GPM of Water @ 60 Ft @ 30, 50 PSI
14 13
GPM of Water @ 250 Ft @ 30, 50 PSI
4 -
Impeller Material
Celcon
Amps AC
8.0
Well Capacity
Average
Motor
Franklin
Phase
1
GPM of Water @ 500 Ft @ 30, 50 PSI
- -
Recommended Tank
3YA58, 3YA59, 4MY63
Voltage
230
Max. Head (Ft.)
339
GPM of Water @ 200 Ft @ 30, 50 PSI
8 5
GPM of Water @ 80 Ft @ 30, 50 PSI
13 11
GPM of Water @ 40 Ft @ 30, 50 PSI
15 13
GPM of Water @ 450 Ft @ 30, 50 PSI
- -
Includes
Control Box
Pump Material
Stainless steel
GPM of Water @ 20 Ft @ 30, 50 PSI
-14
Discharge Port (In.)
1-1/4
GPM
10
Max. Operating Temp. (F)
86
GPM of Water @ 300 Ft @ 30, 50 PSI
- -
Built-In Check Valve
Yes
GPM of Water @ 175 Ft @ 30, 50 PSI
9 7
Flow Ranges (GPM)
10 - 4
GPM of Water @ 150 Ft @ 30, 50 PSI
10 9
Pump-Motor Shell
Stainless Steel
Control Box Required
Yes
GPM of Water @ 400 Ft @ 30, 50 PSI
- -
SF Amps
8
Pump Bearings
Rubber/Ceramic
GPM of Water @ 100 Ft @ 30, 50 PSI
12 10
Shaft Material
Stainless Steel
Max. Head
339 ft
Flow Rate @ 150 Ft. @ 50 PSI
9 gpm
Flow Rate @ 100 Ft. @ 30 PSI
12 gpm
Bearing Material
Rubber/Ceramic
Max. Operating Temp.
86 Degrees F
Flow Rate @ 150 Ft. @ 30 PSI
10 gpm

Description

Submersible Deep Well Pump and Control Panel, HP 3/4 hp, Rated Voltage 230V AC, Amps 8 A, Phase - Pumps 1, Nominal Flow Rate 12 gpm, Number of Stages 8, Number of Wires 3, Impeller Material Celcon, Shaft Material Stainless Steel, Bearing Material Rubber/Ceramic, Flow Rate @ 100 Ft. @ 30 PSI 12 gpm, Flow Rate @ 100 Ft. @ 50 PSI 10 gpm, Flow Rate @ 150 Ft. @ 30 PSI 10 gpm, Flow Rate @ 150 Ft. @ 50 PSI 9 gpm, Max. Head 339 ft, Discharge Dia. 1 1/4 in, Max. Operating Temp. 86 Degrees F
