This item is Discontinued.

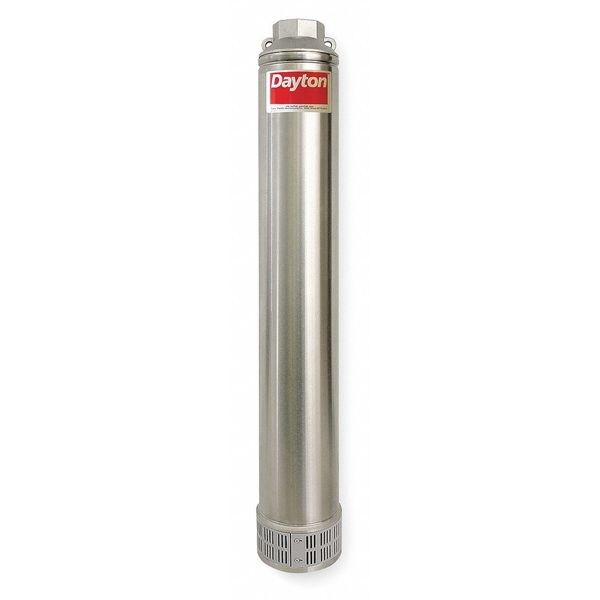

Dayton Submersible Well Pump Head, 2HP, 25 GPM 558701

Submersible Well Pump Head, 2HP, 25 GPM (Discontinued)

  • Mfr # 558701
  • Zoro # G3039662
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
558701
Zoro #
G3039662
UPC #
190735145760
Country of Origin
Mexico

Dimensions

GPM @ Vertical Depth to Water @ 100 Ft @ 30 PSI
32
GPM @ Vertical Depth to Water @ 200 Ft @ 50 PSI
16
GPM @ Vertical Depth to Water @ 200 Ft @ 30 PSI
23
GPM @ Vertical Depth to Water @ 100 Ft @ 50 PSI
28
GPM @ Vertical Depth to Water @ 20 Ft @ 50 PSI
34
Discharge Dia.
1 1/4 in
Discharge Diameter
1 1/4 in

Details

Required Motor HP
2 hp
Flow Rate @ 100 Ft. @ 40 PSI
29 gpm
Flow Rate @ 100 Ft. @ 50 PSI
28 gpm
Number of Stages
12
Max. Head
350 ft
Flow Ranges (GPM)
8-30
GPM of Water @ 200 Ft @ 30, 50 PSI
23 16
Built-In Check Valve
Yes
GPM of Water @ 20 Ft @ 30, 50 PSI
- 34
GPM
25
Stages
12
GPM of Water @ 250 Ft @ 30, 50 PSI
15 -
GPM of Water @ 450 Ft @ 30, 50 PSI
- -
GPM of Water @ 300 Ft @ 30, 50 PSI
- -
Material
Stainless Steel
Max. Operating Temp. (F)
130
GPM of Water @ 60 Ft @ 30, 50 PSI
34 31
Max. Head (Ft.)
350
GPM of Water @ 500 Ft @ 30, 50 PSI
- -
Recommended Tank
1XHH4 or 3YA55
GPM of Water @ 150 Ft @ 30, 50 PSI
29 25
GPM of Water @ 400 Ft @ 30, 50 PSI
- -
Discharge Port (In.)
1-1/4
GPM of Water @ 350 Ft @ 30, 50 PSI
- -
Item
Submersible Well Pump Head
GPM of Water @ 125 Ft @ 30, 50 PSI
30 26
Well Capacity
High
Shut Off (PSI)
350
Bearing Type
Ceramic/Rubber
GPM of Water @ 80 Ft @ 30, 50 PSI
33 29
Type
Submersible Well
Pump-Motor Shell
Stainless Steel
GPM of Water @ 40 Ft @ 30, 50 PSI
- 32
GPM of Water @ 100 Ft @ 30, 50 PSI
32 28
Tank PSI
2030405060
GPM of Water @ 175 Ft @ 30, 50 PSI
25 20
Impeller Material
Glass Filled Noryl
Max. Operating Temp.
130 Degrees F
Flow Rate @ 50 Ft. @ 40 PSI
33 gpm
Flow Rate @ 150 Ft. @ 40 PSI
27 gpm
Flow Rate @ 150 Ft. @ 50 PSI
25 gpm
Flow Rate @ 50 Ft. @ 50 PSI
31.5 gpm
Head Material
Stainless Steel
Feet of Head - Maximum
350 ft
Product Type
Submersible Deep Well Pump Head
Media Temperature - Maximum
130 Degrees F
Required Motor Horsepower
2 hp

Description

Submersible Well Pump Head, Required Motor HP 2 hp, Number of Stages 12, Recommended Tank 1XHH4 or 3YA55, Head Material Stainless Steel, Impeller Material Glass Filled Noryl, Flow Rate @ 100 Ft. @ 40 PSI 29 gpm, Flow Rate @ 100 Ft. @ 50 PSI 28 gpm, Flow Rate @ 150 Ft. @ 40 PSI 27 gpm, Flow Rate @ 150 Ft. @ 50 PSI 25 gpm, Flow Rate @ 50 Ft. @ 40 PSI 33 gpm, Max. Head 350 ft, Flow Rate @ 50 Ft. @ 50 PSI 31.5 gpm, Max. Operating Temp. 130 Degrees F, Discharge Dia. 1 1/4 in
