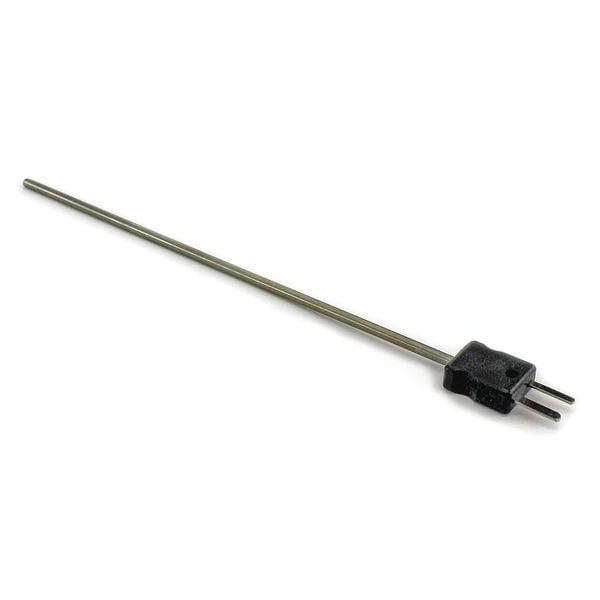

Dayton Thermocouple Probe, Mini Plug, Type J 36GL10 - main

Thermocouple Probe, Mini Plug, Type J

  • Mfr # 36GL10

  • Zoro # G0025545

product price: $26.29
/ea

Key Features

Grounded / Ungrounded
Grounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650
Thermocouple Element
22 AWG
Probe Length
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36GL10
Zoro #
G0025545
UPC #
190735274699
Country of Origin
United States

Dimensions

Probe Length
6 in
Sheath Size (In.)
0.125 in
Probe Diameter
0.125 in
Probe Tip Diameter
0.125 in
Cable Length
6 in
Probe Size
1/8 in x 6 in

Details

Item
Thermocouple Probe
Grounded / Ungrounded
Grounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650
Thermocouple Element
22 AWG
Material
304 Stainless Steel
Plug or Connector Type
Mini Plug
Error Accuracy (Deg. C)
+/-1.1 Below 293 Degrees
Construction
Metal Insulated Cable
Standards
ANSI
Max. Pressure (PSI)
1,000 psi
Insulation
Magnesium Oxide
Error Accuracy (%)
(Over 293 Degrees C) +/-0.4
Tip Style
Rounded
Probe Bend
Straight
Maximum Wire Gauge
20 AWG
Connector Type
Mini Plug
Accuracy
+/-0.4 Over 293 Degrees C, +/-1.1 Below 293 Degrees C
For Liquids and Gels
Yes
Fitting Type
Compression
Includes Thermowell
No
For Gases
Yes
Sensor Type
Thermocouple
For Air
Yes
For Surfaces
No
Cable Material
Magnesium Oxide Insulation
Junction Type
Grounded
Minimum Temperature °F
-346 Degrees F
Response Time
0.5 sec
Maximum Temperature °C
1,200 Degrees C
For Solids
No
Temperature Range
-346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C
Probe Sheath Material
304 Stainless Steel
Process Mounting
1/4 in MNPT, 1/8 in MNPT
Head Material
304 Stainless Steel
Minimum Temperature °C
-210 Degrees C
Head Connection
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
For Application
Air, Gas, Liquid
Maximum Temperature °F
2,193 Degrees F
Maximum Temperature °F
2,193 Degrees F
Minimum Temperature °F
-346 Degrees F
Minimum Temperature °C
-210 Degrees C
Maximum Temperature °C
1,200 Degrees C

Description

Thermocouple Probe, Type J, Grounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Mini Plug, Probe Size 1/8 in x 6 in, Cable Length 6 in, -346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C, Thermocouple
