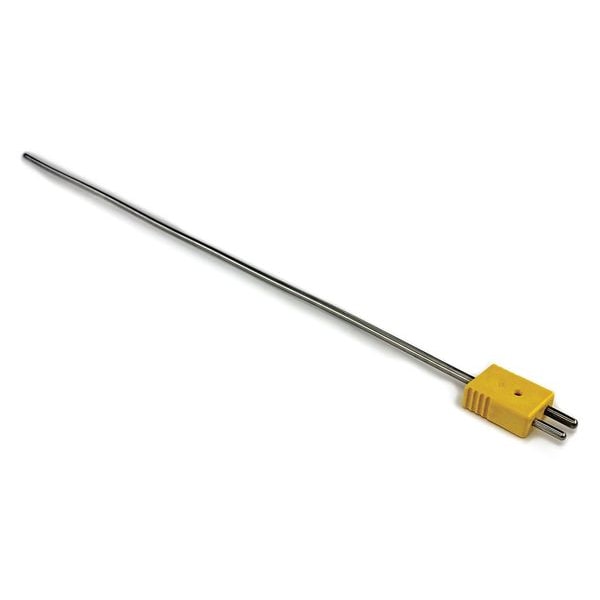

Dayton Thermocouple Probe, Standard Plug, Type K 36GK95 - main

Thermocouple Probe, Standard Plug, Type K

  • Mfr # 36GK95

  • Zoro # G9760344

product price: $47.99
/ea

Key Features

Grounded / Ungrounded
Grounded
Thermocouple Type
Type K
Temp. Limit (Deg. F)
2,150
Thermocouple Element
19 AWG
Probe Length
18 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36GK95
Zoro #
G9760344
UPC #
190735274552
Country of Origin
United States

Dimensions

Probe Length
18 in
Sheath Size (In.)
0.188 in
Cable Length
18 in
Probe Diameter
0.188 in
Probe Tip Diameter
0.188 in
Probe Size
3/16 in x 18 in

Details

Item
Thermocouple Probe
Grounded / Ungrounded
Grounded
Thermocouple Type
Type K
Temp. Limit (Deg. F)
2,150
Thermocouple Element
19 AWG
Material
Inconel 600
Plug or Connector Type
Standard Plug
Standards
ANSI
Max. Pressure (PSI)
1,000 psi
Error Accuracy (%)
(Over 293 Degrees C) +/-0.4
Insulation
Magnesium Oxide
Construction
Metal Insulated Cable
Error Accuracy (Deg. C)
+/-1.1 Below 293 Degrees
For Liquids and Gels
Yes
Probe Bend
Straight
Connector Type
Standard Plug
Probe Sheath Material
Inconel
Tip Style
Rounded
Junction Type
Grounded
Head Connection
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
Head Material
Inconel
Process Mounting
1/4 in MNPT, 1/8 in MNPT
For Surfaces
No
Maximum Wire Gauge
20 AWG
Temperature Range
-325 Degrees to 2,280 Degrees F/-200 Degrees to 1,250 Degrees C
Cable Material
Magnesium Oxide Insulation
Accuracy
+/-0.4 Over 293 Degrees C, +/-1.1 Below 293 Degrees C
For Solids
No
Minimum Temperature °C
-200 Degrees C
For Gases
Yes
Sensor Type
Thermocouple
Minimum Temperature °F
-325 Degrees F
For Air
Yes
Maximum Temperature °F
2,280 Degrees F
Fitting Type
Compression
Response Time
1 sec
For Application
Air, Gas, Liquid
Maximum Temperature °C
1,250 Degrees C
Includes Thermowell
No
Minimum Temperature °F
-325 Degrees F
Maximum Temperature °C
1,250 Degrees C
Maximum Temperature °F
2,280 Degrees F
Minimum Temperature °C
-200 Degrees C

Description

Thermocouple Probe, Type K, Grounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Standard Plug, Probe Size 3/16 in x 18 in, Cable Length 18 in, -325 Degrees to 2,280 Degrees F/-200 Degrees to 1,250 Degrees C, Thermocouple
