Shop DAYTON

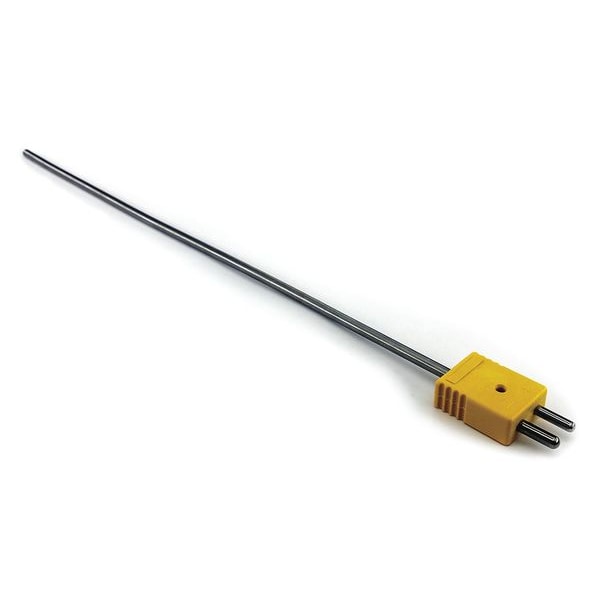

Thermocouple Probe, Standard Plug, Type K

  • Mfr # 36GK98

  • Zoro # G9760317

product price:
$
42.49
/ea

Key Features

Grounded / Ungrounded
Ungrounded
Thermocouple Type
Type K
Temp. Limit (Deg. F)
2,150
Thermocouple Element
19 AWG
Probe Length
12 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
36GK98
Zoro #
G9760317
UPC #
190735274583
Country of Origin
United States

Dimensions

Probe Length
12 in
Sheath Size (In.)
0.188 in
Probe Diameter
0.188 in
Probe Size
3/16 in x 12 in
Cable Length
12 in
Probe Tip Diameter
0.188 in
Process Mounting Thread Size
1/8" MNPT

Details

Item
Thermocouple Probe
Grounded / Ungrounded
Ungrounded
Thermocouple Type
Type K
Temp. Limit (Deg. F)
2,150
Thermocouple Element
19 AWG
Material
Inconel 600
Plug or Connector Type
Standard Plug
Error Accuracy (%)
(Over 293 Degrees C) +/-0.4
Construction
Metal Insulated Cable
Standards
ANSI
Max. Pressure (PSI)
1,000 psi
Error Accuracy (Deg. C)
+/-1.1 Below 293 Degrees
Insulation
Magnesium Oxide
Minimum Temperature °C
-200 Degrees C
Sensor Type
Thermocouple
Maximum Wire Gauge
20 AWG
Fitting Type
Compression
Cable Material
Magnesium Oxide Insulation
Probe Bend
Straight
Response Time
2.3 sec
For Application
Air, Gas, Liquid
Head Material
Inconel
Connector Type
Standard Plug
For Gases
Yes
Includes Thermowell
No
Maximum Temperature °F
2,280 Degrees F
For Surfaces
No
For Air
Yes
For Liquids and Gels
Yes
Tip Style
Rounded
Temperature Range
-325 Degrees to 2,280 Degrees F/-200 Degrees to 1,250 Degrees C
For Solids
No
Accuracy
+/-1.1 % Below 293 Degrees C, +/-0.4 % Otherwise
Minimum Temperature °F
-325 Degrees F
Maximum Temperature °C
1,250 Degrees C
Process Mounting
1/4 in MNPT, 1/8 in MNPT
Head Connection
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
Junction Type
Ungrounded
Probe Sheath Material
Inconel
Maximum Temperature °C
1,250 Degrees C
Minimum Temperature °C
-200 Degrees C
Maximum Temperature °F
2,280 Degrees F
Minimum Temperature °F
-325 Degrees F
Process Mounting Connection
Hose Clamp, Weld
Data Output Type
Serial Data Cable
Maximum Temperature (°F)
2,280 Degrees F
For Media Type
Gases, Liquids and Gels
Maximum Temperature (°C)
1,250 Degrees C

Description

Thermocouple Probe, Type K, Ungrounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Standard Plug, Probe Size 3/16 in x 12 in, Cable Length 12 in, -325 Degrees to 2,280 Degrees F/-200 Degrees to 1,250 Degrees C, Thermocouple
