  13. ThermocoupleProbe, StandardPlug, TypeJ

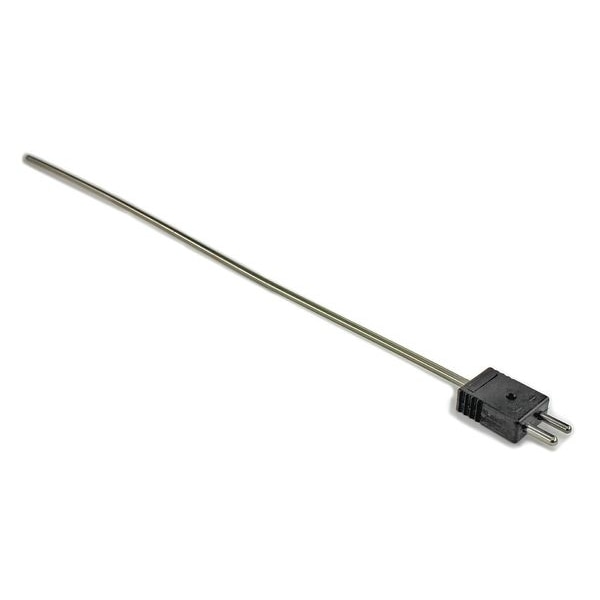

Dayton ThermocoupleProbe, StandardPlug, TypeJ 36GK93 - main

ThermocoupleProbe, StandardPlug, TypeJ

  • Mfr # 36GK93

  • Zoro # G9760362

product price: $35.69
/ea

Key Features

Grounded / Ungrounded
Grounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650
Thermocouple Element
19 AWG
Probe Length
18 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
36GK93
Zoro #
G9760362
UPC #
190735274538
Country of Origin
United States

Dimensions

Probe Length
18 in
Sheath Size (In.)
0.188 in
Cable Length
18 in
Probe Size
3/16 in x 18 in
Probe Diameter
0.188 in
Probe Tip Diameter
0.188 in

Details

Item
Thermocouple Probe
Grounded / Ungrounded
Grounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,650
Thermocouple Element
19 AWG
Material
304 Stainless Steel
Plug or Connector Type
Standard Plug
Error Accuracy (Deg. C)
+/-1.1 Below 293 Degrees
Error Accuracy (%)
(Over 293 Degrees C) +/-0.4
Insulation
Magnesium Oxide
Max. Pressure (PSI)
1,000 psi
Standards
ANSI
Construction
Metal Insulated Cable
Response Time
1 sec
Maximum Temperature °C
1,200 Degrees C
For Liquids and Gels
Yes
Tip Style
Rounded
Temperature Range
-346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C
Maximum Wire Gauge
20 AWG
Sensor Type
Thermocouple
Maximum Temperature °F
2,193 Degrees F
For Surfaces
No
For Application
Air, Gas, Liquid
Head Connection
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
Junction Type
Grounded
Process Mounting
1/4 in MNPT, 1/8 in MNPT
Minimum Temperature °C
-210 Degrees C
Accuracy
+/-0.4 Over 293 Degrees C, +/-1.1 Below 293 Degrees C
Minimum Temperature °F
-346 Degrees F
Head Material
304 Stainless Steel
Probe Sheath Material
304 Stainless Steel
Probe Bend
Straight
For Solids
No
Includes Thermowell
No
Connector Type
Standard Plug
For Gases
Yes
Fitting Type
Compression
Cable Material
Magnesium Oxide Insulation
For Air
Yes
Minimum Temperature °C
-210 Degrees C
Maximum Temperature °F
2,193 Degrees F
Minimum Temperature °F
-346 Degrees F
Maximum Temperature °C
1,200 Degrees C

Description

Thermocouple Probe, Type J, Grounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Standard Plug, Probe Size 3/16 in x 18 in, Cable Length 18 in, -346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C, Thermocouple
