Shop DAYTON

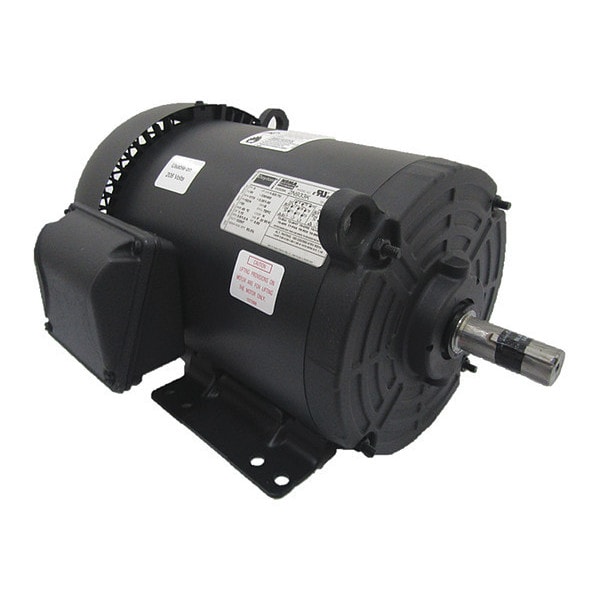

Three-Phase General Purpose Motor, 1 HP, 182/4 Frame, 230/460V AC Voltage, 1760 Nameplate RPM

  • Mfr # 2N933

  • Zoro # G3088547

product price:
$
605.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1760
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.4/1.7 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2N933
Zoro #
G3088547
UPC #
190735228227
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 9/16 in
Overall Length
15 1/4 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
3 yr
Wire Rope Length
15 1/4 in
Shaft Diameter
7/8 in
Body Diameter
8.11 in
Frame Size
182-4
Length
15 1/4 in

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1760
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.4/1.7 A
Frame
182/4
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CE, CSA (264511), UL (E47479)
CC Number
CC029A
Footnotes
2,10,15
Motor Thermal Protection
None
Inverter Rated
Yes
Duty Cycle
Continuous
Bearing Protection Type
Shaft Slingers
Full Load Current @ 60 Hz
3.2/1.6 A
Weight
25 7/32 kg
Usable @ 208V
Not Usable at 208V
Mounting Position
All Angle
Constant Torque Rating
4:1
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Number of Speeds
1
Bearing Lubrication Type
Permanently Lubricated
NEMA Design Class
B
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Product Type
General Purpose Motor
Efficiency Rating
NEMA Premium Efficiency
Bearing Type
Ball
Variable Torque Rating
10:1
Includes
Shaft Key
Shaft Design
Keyed
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Inverter Rating
Inverter Rated
Manufacturers Warranty
3 yr

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1760, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.4/1.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800
