Shop DAYTON

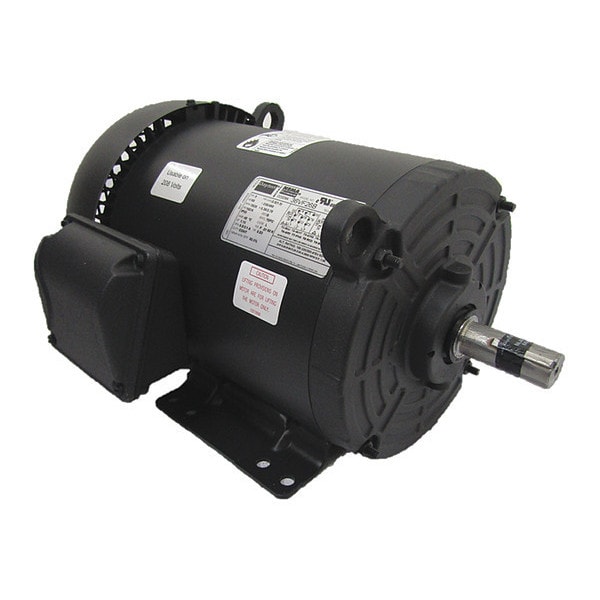

Three-Phase General Purpose Motor, 2 HP, 182/4 Frame, 230/460V AC Voltage, 3510 Nameplate RPM

  • Mfr # 36VF26
  • Zoro # G1860525
product price:
$
736.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
3510
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.4/2.7 A
Frame
182/4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
36VF26
Zoro #
G1860525
UPC #
190735275580
Country of Origin
Mexico
Item
General Purpose Motor
HP
2
Nameplate RPM
3510
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5.4/2.7 A
Frame
182/4
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CSA, UL
CC Number
CC029A
Inverter Rated
Yes
Includes
Shaft Key
Footnotes
2,15,53
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Thermal Protection
None
Capacitor Required
No
Duty Cycle
Continuous
Bearing Protection Type
Shaft Slingers
Usable @ 208V
Not Usable at 208V
Variable Torque Rating
10:1
Number of Speeds
1
Shaft Design
Keyed
Bearing Lubrication Type
Permanently Lubricated
Inverter Rating
Inverter Rated
Application
General Purpose
Usable @ 200V
Not Usable at 200V
Mounting Position
Horizontal
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C
Conduit Box Location
Exterior
Manufacturers Warranty
1 yr
Insulation Class
F
Product Type
General Purpose Motor
Frame Material
Steel
NEMA Design Class
B
Constant Torque Rating
4:1
Full Load Current @ 60 Hz
5.3/2.65 A
Bearing Type
Ball
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Weight
24 7/16 kg
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3510, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.4/2.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Conduit Box
