Shop DAYTON

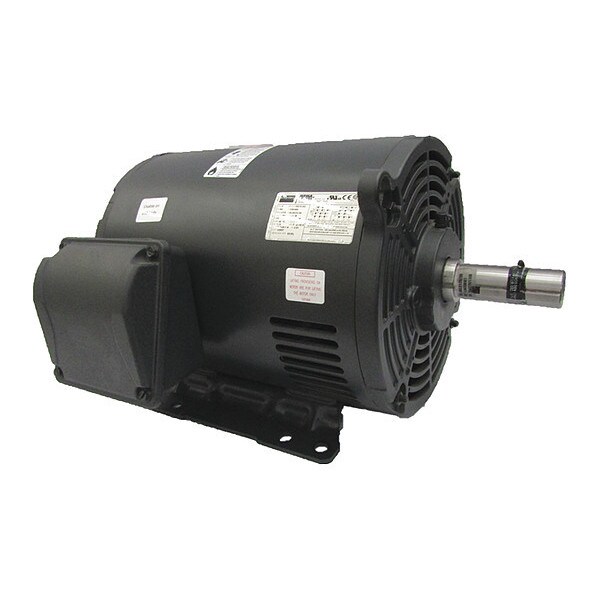

Three-Phase General Purpose Motor, 20 HP, 254/6T Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # 4GZC7

  • Zoro # G1992934

product price:
$
1,587.99
/ea
Additional $270.00 delivery surcharge applies per item.
See details

Key Features

Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
48.5/24.3 A
Frame
254/6T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4GZC7
Zoro #
G1992934
UPC #
190735324806
Country of Origin
Mexico

Dimensions

Length Less Shaft
18 1/2 in
Overall Length
22 1/2 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
1 5/8 in
Frame Size
254-6T
Body Diameter
11.52 in
Wire Rope Length
22 1/2 in
Length
22 1/2 in

Details

Item
General Purpose Motor
HP
20
Nameplate RPM
1,770
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
48.5/24.3 A
Frame
254/6T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
93 %
Standards
CSA, UL
CC Number
CC029A
Motor Thermal Protection
None
Footnotes
3,16
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition
NEMA Premium(R) Rated
Inverter Rated
Yes
Duty Cycle
Continuous
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
Weight
97 1/4 kg
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Open Drip Proof
Shaft Design
Keyed
Usable @ 208V
Not Usable at 208V
Application
General Purpose
Frequency
60 Hz
Usable @ 200V
Not Usable at 200V
Inverter Rating
Inverter Rated
Bearing Protection Type
No Protection
Manufacturers Warranty
3 yr
Conduit Box Location
Exterior
Product Type
General Purpose Motor
Bearing Lubrication Type
Regreasable
Full Load Current @ 60 Hz
50.0/25.0 A
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Variable Torque Rating
1000:1
Number of Speeds
1
Includes
Shaft Key
Bearing Type
Ball

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 254/6T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 48.5/24.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CSA, UL, Includes Shaft Key
